Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
THHQL32015

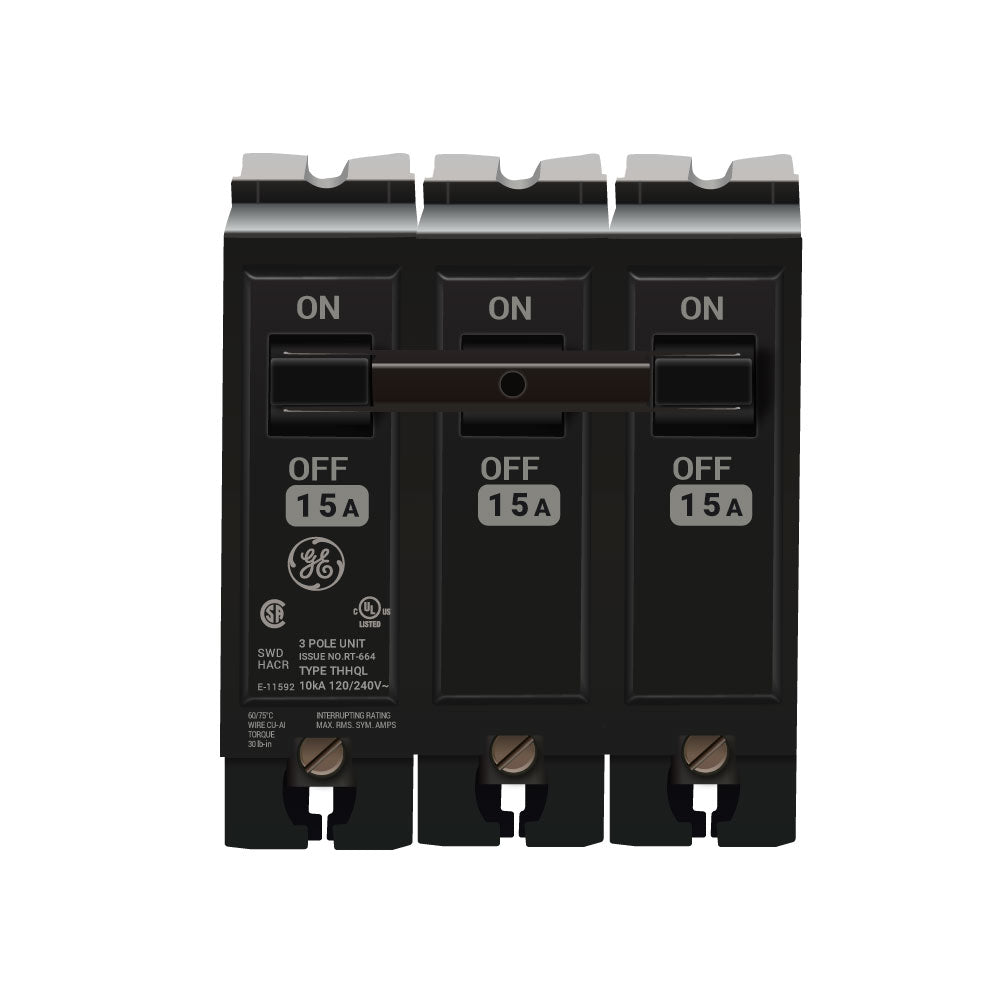

THHQL32015 is a General Electric 3 pole, 15 amp, 240 volt plug-in circuit breaker designed for reliable thermal magnetic protection.This THHQL series breaker belongs to the Q-Line family and features a 22 kA interrupting rating at 120/240 VAC. It supports wire sizes from 14 to 8 AWG and is suitable for industrial, switchboard, motor control, and lighting applications. The breaker has a non-interchangeable trip style and a thermal magnetic trip unit for dependable overload and short circuit protection.
- Amperage: 15 Amp
- Voltage Rating: 120/240 VAC
- Poles: 3 Pole
- Mounting Type: Plug-In
- Interrupt Rating: 22 kAIC
- Series/Frame: THHQL (Q-Line)
- Trip Unit: Thermal Magnetic
- Wire Size Range: 14 to 8 AWG
- Trip Style: Non-Interchangeable
- Certifications: UL Listed
Specifications
- Part Number: THHQL32015
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q-Line
- Type : THHQL
- Voltage : 240
- Amperage : 15
- Phase : 3
- Poles : 3
- AIC rating : 22kA@240V
- Connection : Plug-In
- Functions : LI - Long-Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783164117660
- GTIN : 00783164117660
- Weight : 1 lb
- Wire Size : AWG 14 to 8, Cu, AWG 12 to 8, Al
