THHQL1120AF2 - General Electric 20 Amp 1 Pole 120/240V Q-Line Plug-In Arc Fault Circuit Interrupter Breaker, 10 kAIC, HACR, SWD, UL E11592

Save $184.20
SKU: THHQL1120AF2-New
Condition: New
Price:
$62.80 $247.00
Stock:
100+ in stock, ready to be shipped

💡 ABB / GE Branding Notice

On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions.

As a result of this transition, certain products may be labeled as either ABB or GE depending on the manufacturing date and production batch. In many cases, the product itself remains identical in form, fit, function, and specifications, with only the branding or label differing.

Customers may receive:

  • ABB-branded products
  • GE-branded products
  • Packaging reflecting either brand

Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.

If you have questions regarding labeling, compatibility, or product identification, please contact our support team prior to ordering.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

THHQL1120AF2 - General Electric 20 Amp 1 Pole 120/240V Q-Line Plug-In Arc Fault Circuit Interrupter Breaker, 10 kAIC, HACR, SWD, UL E11592 - Essential Electric Supply

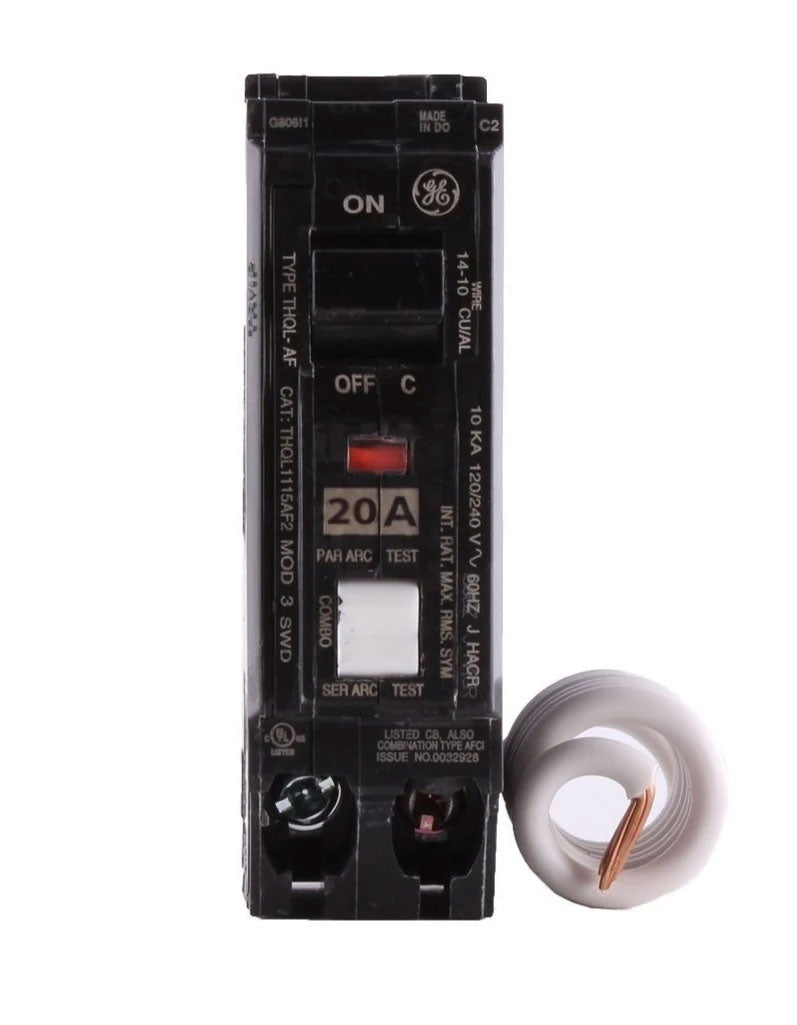

Roll over image to zoom in Click on image to zoom Images are for reference only
THHQL1120AF2 - General Electric 20 Amp 1 Pole 120/240V Q-Line Plug-In Arc Fault Circuit Interrupter Breaker, 10 kAIC, HACR, SWD, UL E11592 - Essential Electric Supply

Description

THHQL1120AF2


THHQL1120AF2 is a General Electric Q-Line plug-in arc fault circuit interrupter (AFCI) breaker designed for residential and light commercial applications.

This compact, single-pole breaker features a 20 Amp rating, 120/240V system voltage, and a 10 kAIC interrupting capacity. It is engineered with a Quick-make/Quick-break mechanism, common trip bar, and easy-to-spot trip indication for safety and reliability. The THHQL1120AF2 is suitable for reverse feed, carries HACR and SWD ratings, and is UL listed under file E11592.

    Key Specifications
  • Amperage: 20 A
  • Voltage: 120/240V AC
  • Poles: 1
  • Mounting Type: Plug-in
  • Interrupt Rating: 10 kAIC
  • Series/Frame: Q-Line (THQ)
  • Trip Unit: Non-interchangeable, thermal-magnetic (LI)
  • Certifications: UL E11592, HACR, SWD
  • Terminal Connection: Screw clamp
  • Max Wire Size: 8 AWG
  • Min Wire Size: 14 AWG
  • Dimensions: 1" x 3 7/25" x 2.38"

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: THHQL1120AF2
  • Manufacturer : General Electric
  • Brand : General Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Q-Line
  • Type : THHQL
  • Voltage : 240
  • Amperage : 20
  • Phase : 1
  • Poles : 1
  • AIC rating : 22kA@240V
  • Connection : Plug-In
  • Functions : Long Time and Instantaneous Trip
  • Terminal Connection : Screw Clamp
  • Frame Size : 20A/THQ
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 10 AWG
  • Breaker Type : Arc Fault Circuit Interrupter
  • Protection : Thermal Magnetic

Product Data

  • UPC : 78316465285
  • GTIN : 40783164652855
  • Country of Origin : United States
  • Dimensions : 1 in x 3.28 in x 3-9/32 in
  • Weight : 0.58 lb
  • Panel Type : Power Mark Gold Load Centers and AQ Lighting Panels
  • Standards : CSA Certified, UL Listed
  • Certification : CSA Certified, UL Listed

Accesories

Part Manufacture Sub Category
TQAS2A1
