Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
THHQB32100

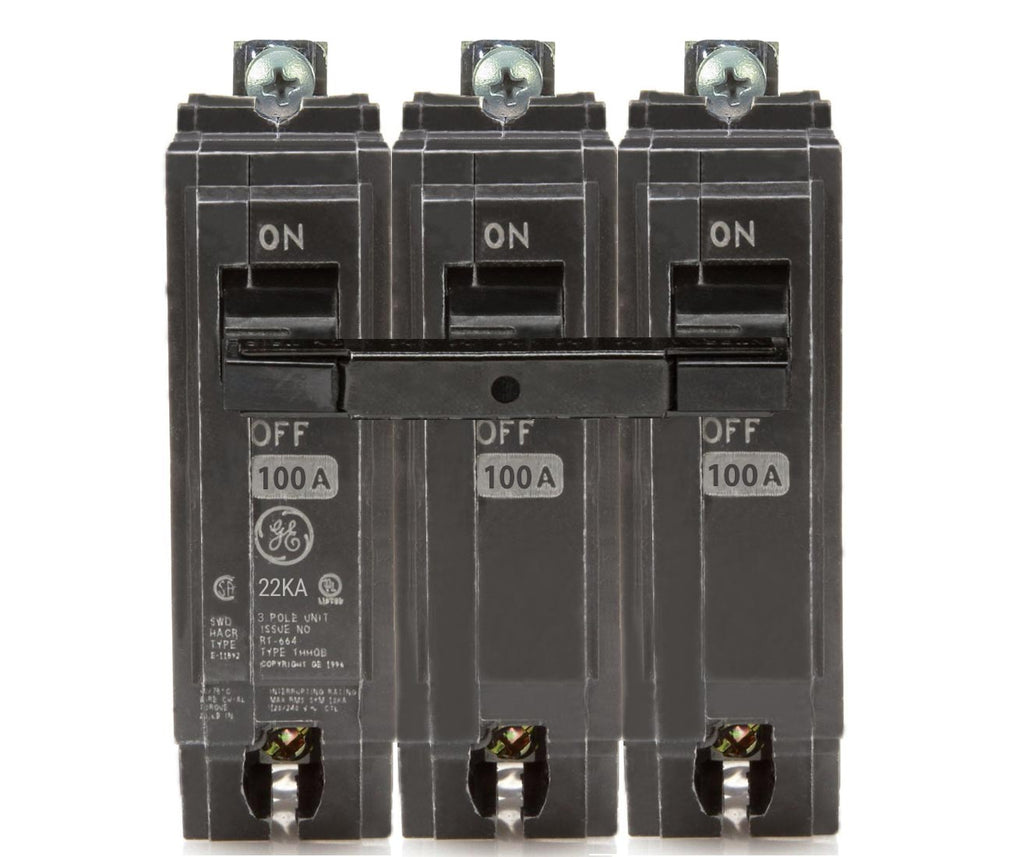

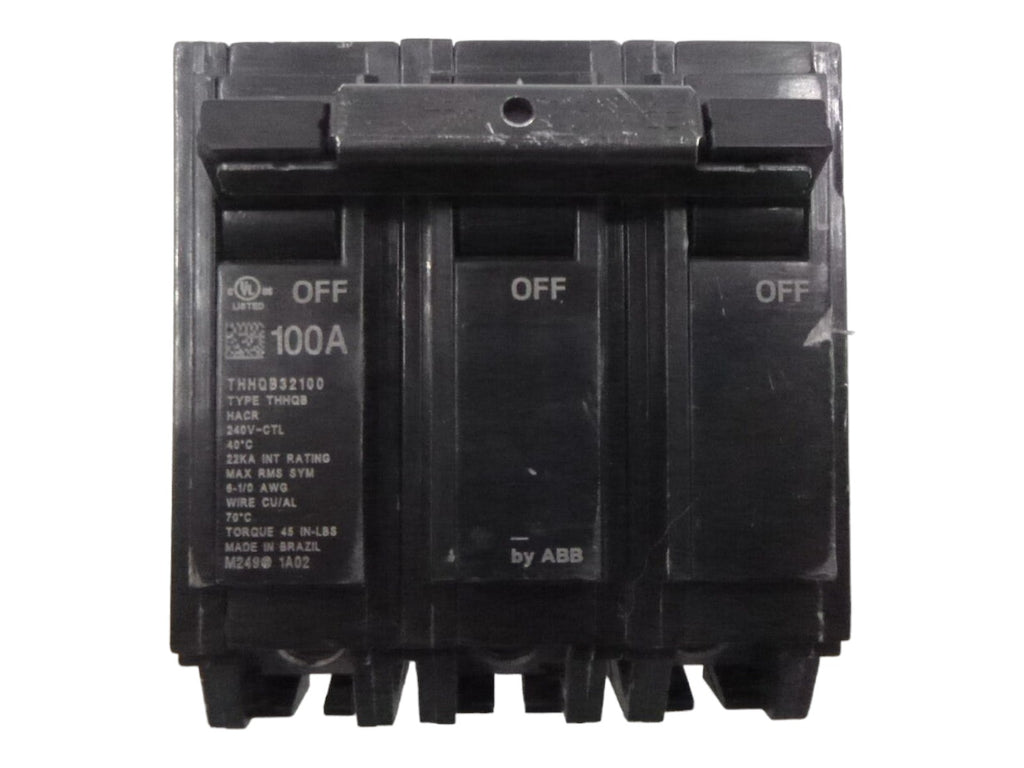

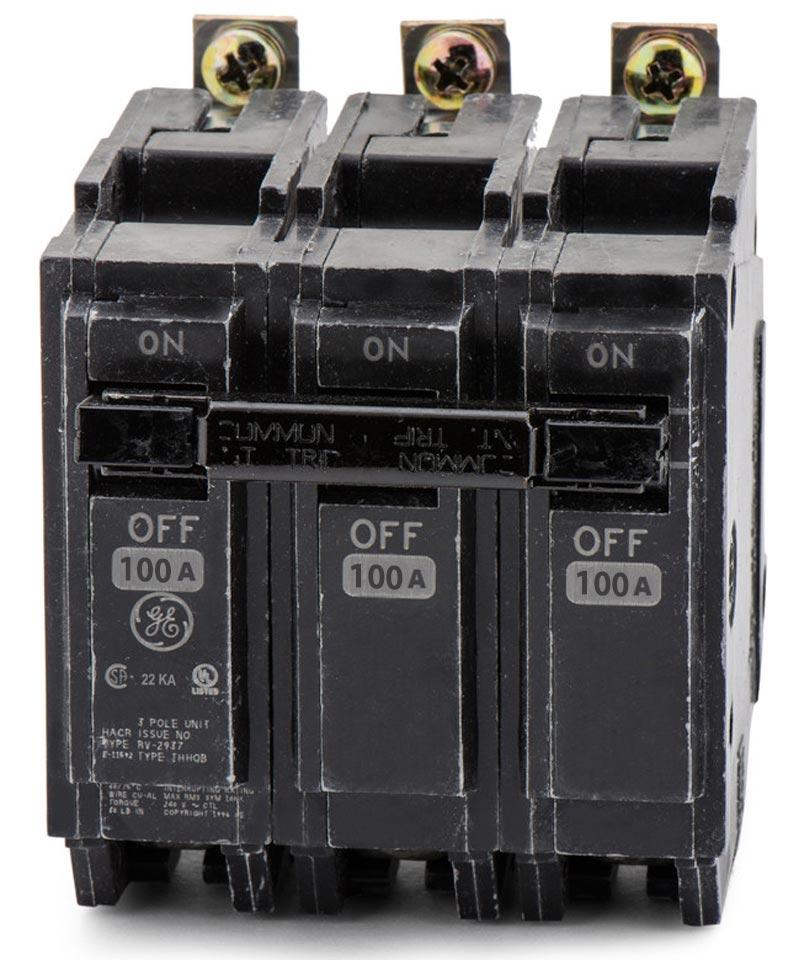

THHQB32100 is a General Electric 3 Pole 100 Amp 240 VAC bolt-on circuit breaker designed for reliable thermal magnetic protection.This THHQB32100 breaker features a 22 kA interrupt rating at 240 VAC, thermal magnetic trip unit, and bolt-on mounting type. It supports 3 poles with load side lug terminals and is UL listed and CSA certified. The breaker is suitable for residential and commercial applications, compatible with GE AQ lighting panels, and allows reverse feed. Wire size range supports 6 to 1/0 AWG copper and 4 to 1/0 AWG aluminum.
- Amperage: 100 Amp
- Voltage: 240 VAC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 22 kA
- Frame/Series: THHQB (Q-Line)
- Trip Unit: Thermal Magnetic
- Wire Size: 6 to 1/0 AWG Copper, 4 to 1/0 AWG Aluminum
- Certifications: UL Listed, CSA Certified
- Suitable for Reverse Feed
- Load Side Lug Terminals
- Compact Q-Line Design
Specifications
- Part Number: THHQB32100
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q-Line
- Type : THHQB
- Voltage : 208
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 22kA@208V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783164118674
- GTIN : 00783164118674
- Dimensions : Height 3.280 in x Depth / Length 2.375 in x Width 3.000 in
- Weight : 1
