Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
THHQB32030

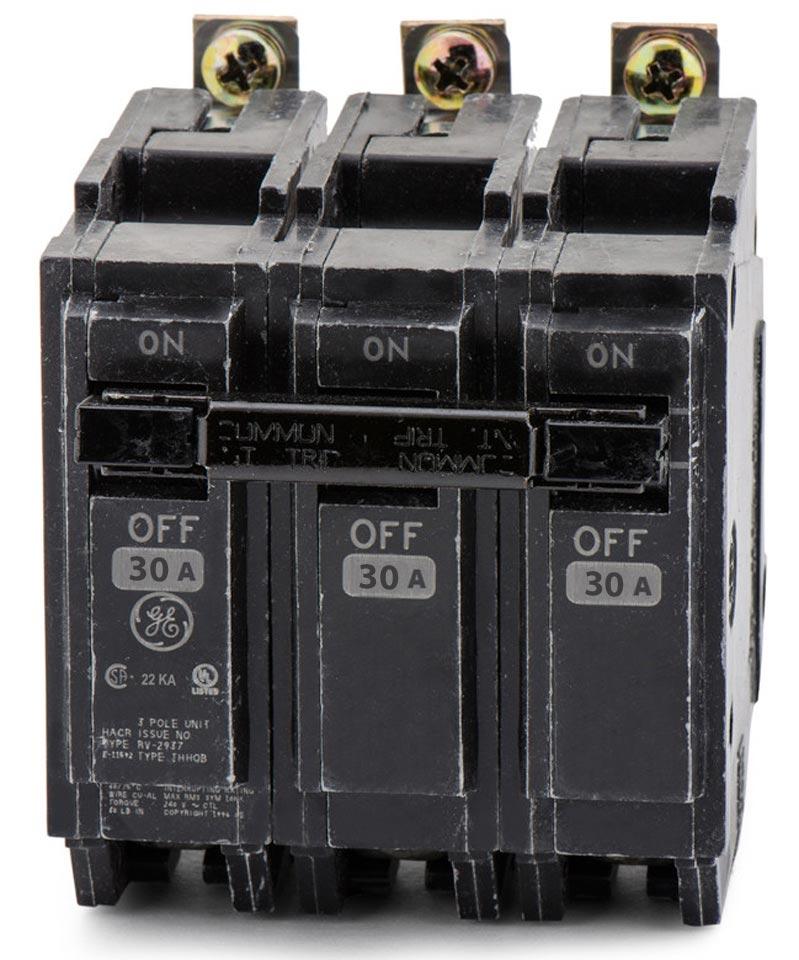

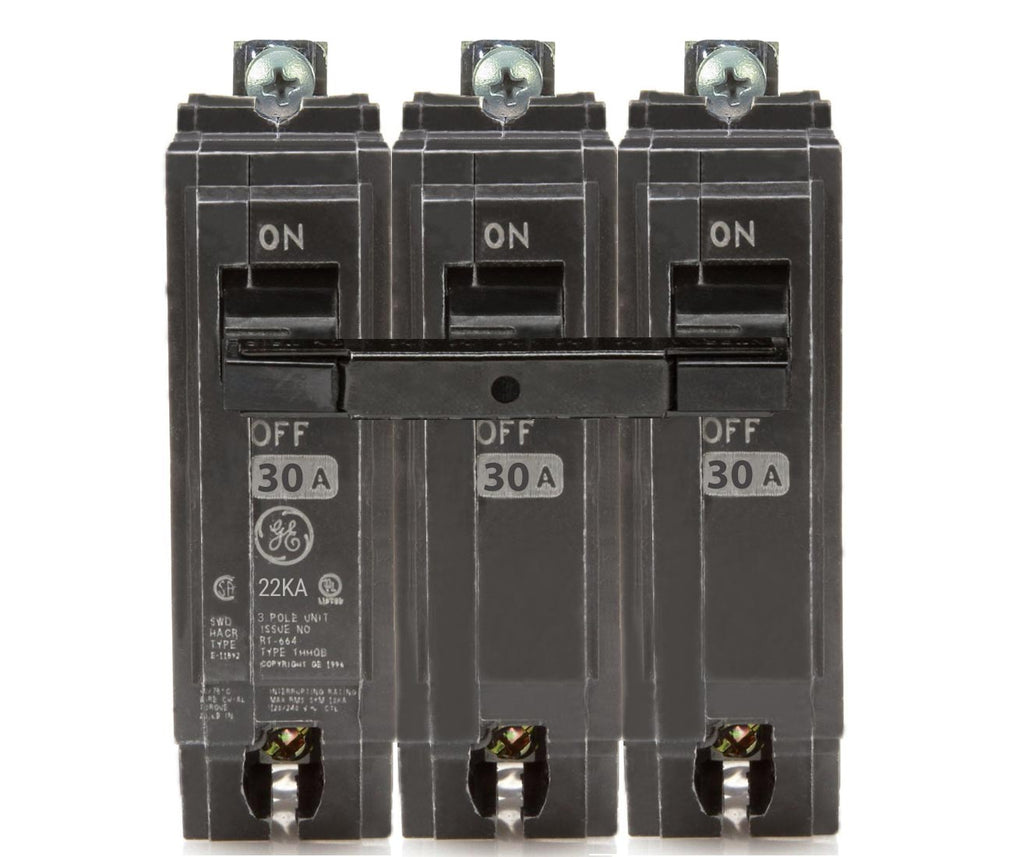

THHQB32030 is a 30 Amp, 3 Pole, 240 Volt bolt-on circuit breaker from General Electric's THQB series designed for residential and commercial electrical protection.This General Electric THHQB32030 circuit breaker features a compact, thermal-magnetic design with bolt-on mounting for secure connection to bus bars in load centers and lighting panels. It has a fixed long-time and instantaneous trip unit with LI trip function, providing reliable overcurrent protection. The breaker is HACR rated and UL listed, with a 10,000 Amp interrupting rating at 240 Vac, suitable for three-phase applications. It supports wire sizes from 14 to 8 AWG aluminum and copper conductors.
- Key Specifications
- Manufacturer: General Electric
- Series: THQB Bolt-On
- Amperage: 30 Amp
- Poles: 3
- Voltage: 240 Volt
- Mounting Type: Bolt-On
- Interrupting Rating: 10,000 Amps
- Trip Unit: Fixed Long-Time and Instantaneous, LI Trip Function
- Certifications: UL Listed, CSA Approved, HACR Rated
- Application: Residential and Commercial
Specifications
- Part Number: THHQB32030
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q-Line
- Type : THHQB
- Voltage : 208
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 22kA@208V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783164118582
- GTIN : 00783164118582
- Dimensions : Height 3.280 in x Depth / Length 2.375 in x Width 3.000 in
- Weight : 1 lb
