Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
THHQB32050

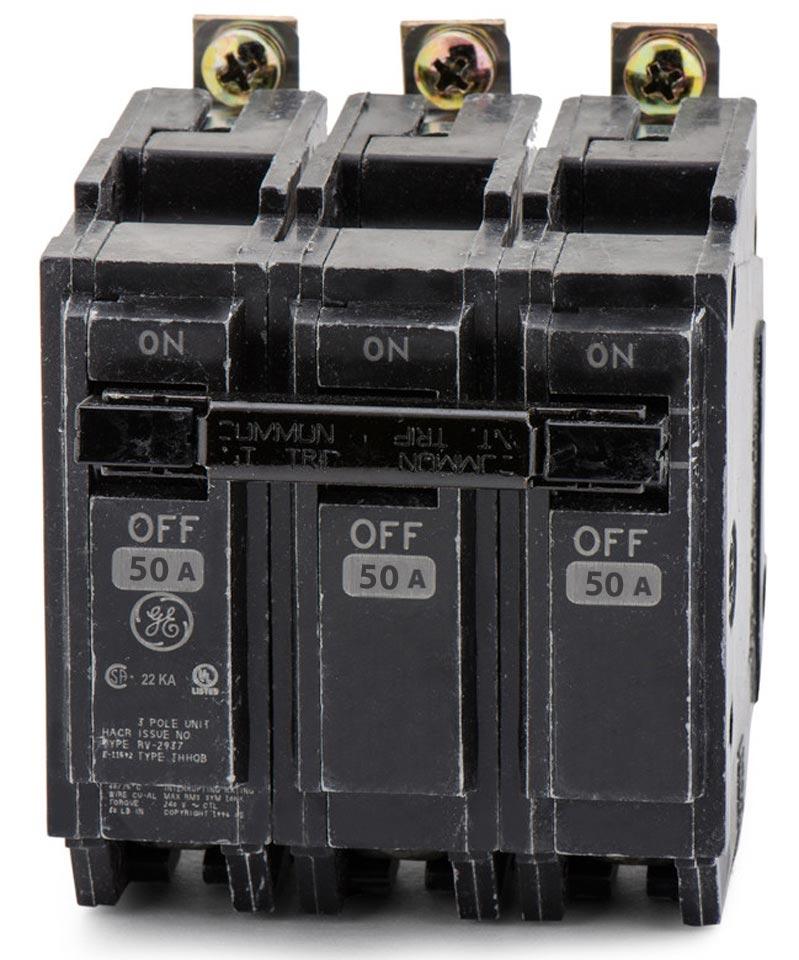

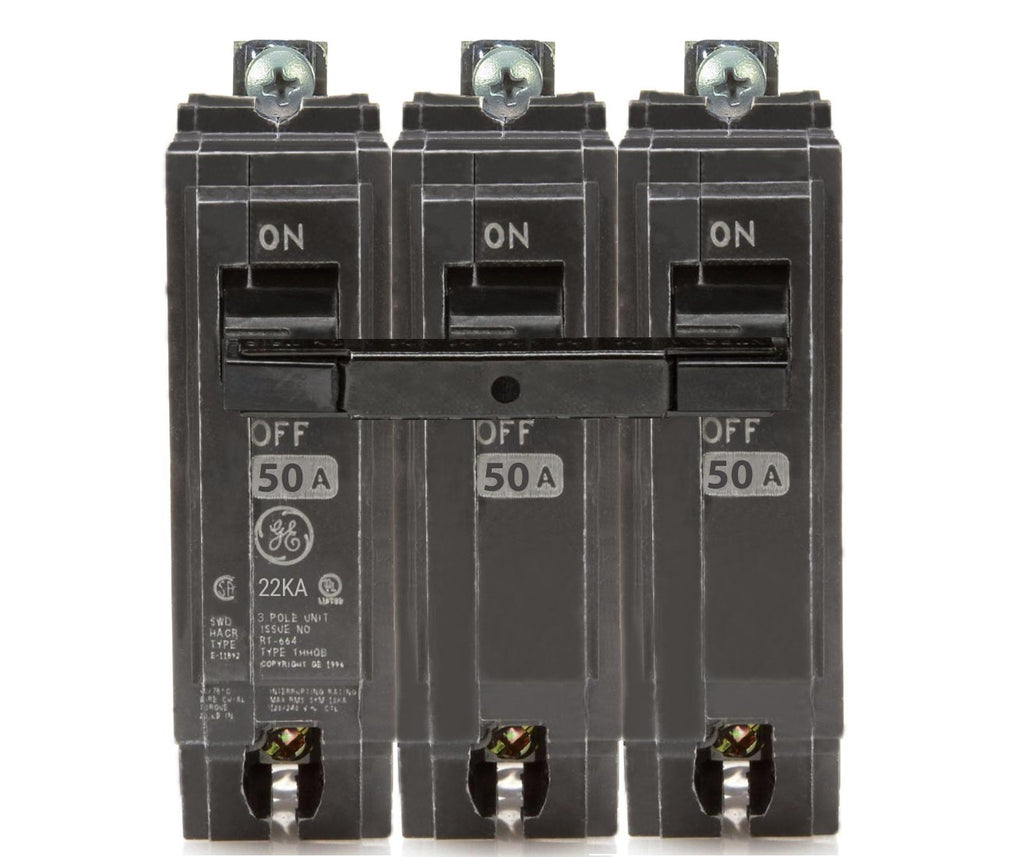

THHQB32050 is a General Electric 3 pole, 50 amp, 240 volt Q-Line bolt-on circuit breaker designed for residential and commercial applications.This THQB series circuit breaker features a thermal-magnetic trip unit with a standard interrupting rating of 10 kA at 208V. It supports wire sizes from #8 to #3 AWG copper or aluminum and is HACR rated for HVAC applications. The breaker is UL listed and designed for bolt-on mounting in panelboards.
- Amperage: 50A
- Voltage Rating: 240 VAC
- Number of Poles: 3
- Mounting Type: Bolt-On
- Interrupting Rating: 10 kA at 208V
- Series/Frame: Q-Line
- Trip Unit: Thermal-Magnetic
- Wire Size Range: #8 to #3 AWG Cu/Al
- HACR Rated: Yes
- UL Listed: Yes
- Trip Style: Non-Interchangeable
Specifications
- Part Number: THHQB32050
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q-Line
- Type : THHQB
- Voltage : 208
- Amperage : 50
- Phase : 3
- Poles : 3
- AIC rating : 22kA@208V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783164118629
- GTIN : 00783164118629
- Dimensions : Height 3.280 in x Depth / Length 2.375 in x Width 3.000 in
- Weight : 1 lb
