Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
THHQB32020ST1

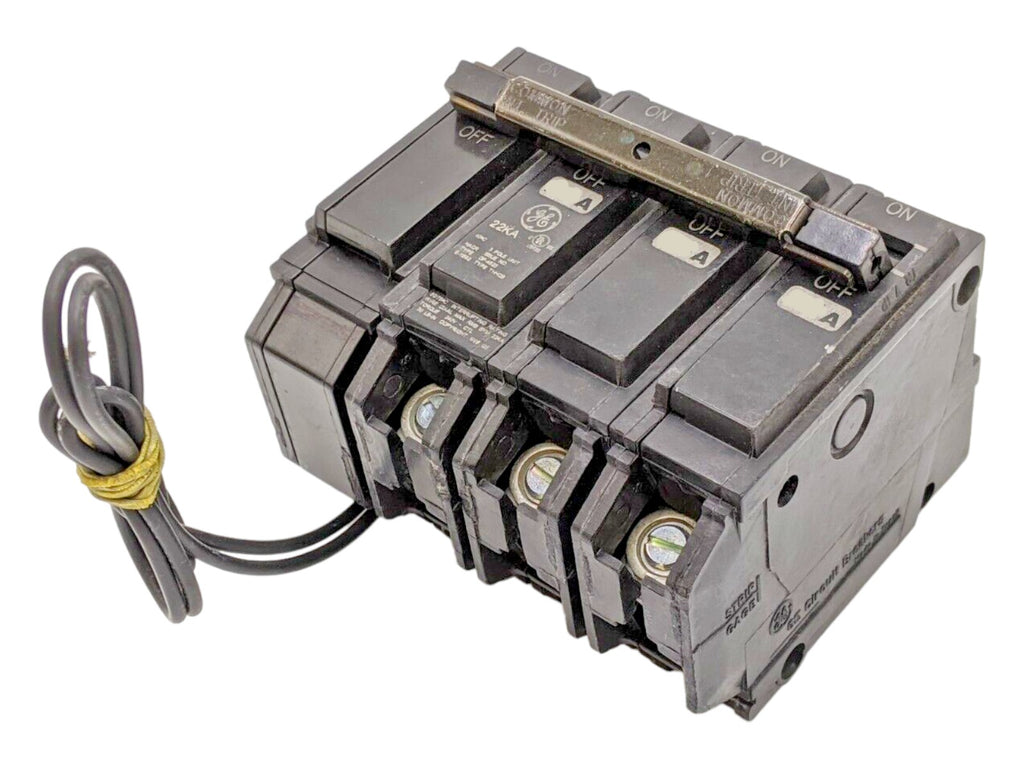

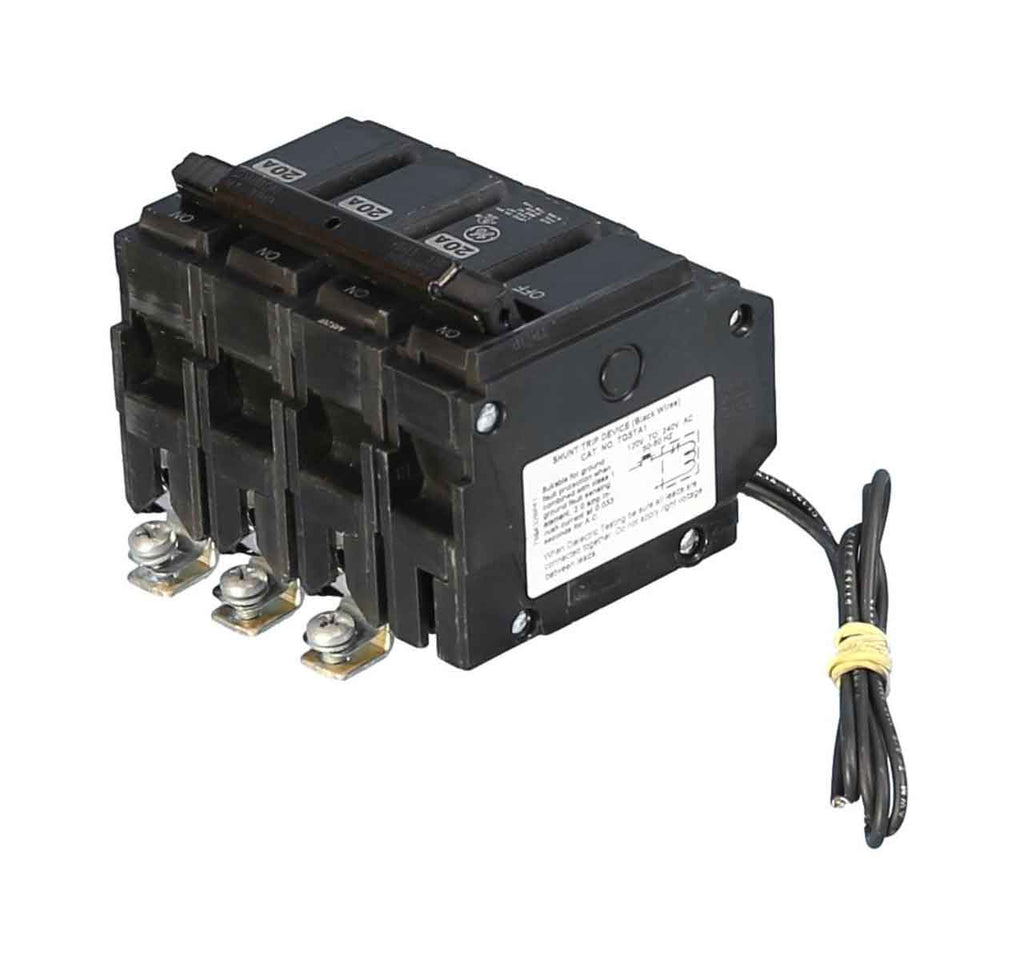

THHQB32020ST1 is a General Electric 3 pole, 20 amp, 240 volt bolt-on circuit breaker designed for residential and commercial power distribution applications. This compact, thermal-magnetic device features a 10,000 ampere interrupting rating and is suitable for use in Q-Line load centers and panels. The THHQB32020ST1 breaker is part of the GE THQB series, known for reliability and compact design. It features bolt-on mounting for secure connection to bus bars, and is UL listed and CSA approved for safety and compliance. The breaker is designed for use with copper and aluminum conductors, making it versatile for a wide range of installations.
- Manufacturer: General Electric
- Series/Frame: THQB Bolt-On
- Amperage: 20A
- Voltage: 240V AC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupting Rating: 10,000A
- Trip Unit: Thermal-Magnetic
- Phase: 3
- Connection: Bolt-On
- Approvals: UL Listed, CSA Approved
- Conductor Compatibility: 14-8 AWG Copper, 12-8 AWG Aluminum
Specifications
- Part Number: THHQB32020ST1
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q-Line
- Type : THHQB
- Voltage : 208
- Amperage : 20
- Phase : 3
- Poles : 3
- AIC rating : 22kA@208V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- Weight : 1
