THHQB1120AF2 - General Electric 20A 120/240V 1-Pole Q-Line Arc Fault Circuit Breaker 10kA Interrupt Rating

Save $143.63
SKU: THHQB1120AF2-New
Condition: New
Price:
$633.37 $777.00
Stock:
Low inventory, please call for stock check

💡 ABB / GE Branding Notice

On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions.

As a result of this transition, certain products may be labeled as either ABB or GE depending on the manufacturing date and production batch. In many cases, the product itself remains identical in form, fit, function, and specifications, with only the branding or label differing.

Customers may receive:

  • ABB-branded products
  • GE-branded products
  • Packaging reflecting either brand

Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.

If you have questions regarding labeling, compatibility, or product identification, please contact our support team prior to ordering.

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

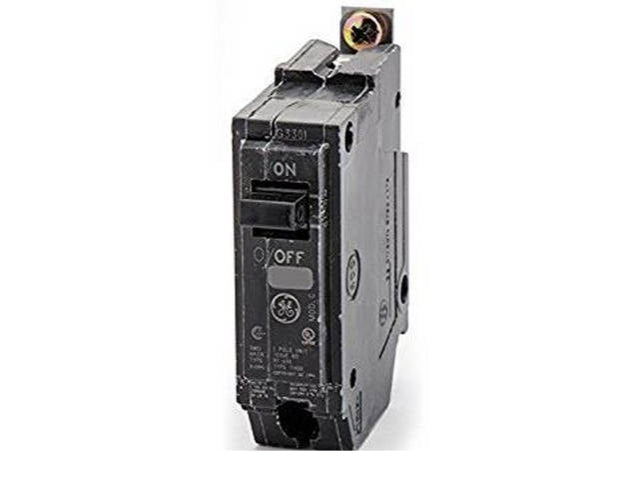

THHQB1120AF2 - General Electric Bolt-on 240V 20A 1 pole circuit breaker 22kA@240V - Essential Electric Supply
THHQB1120AF2 - General Electric 20A 120/240V 1-Pole Q-Line Arc Fault Circuit Breaker 10kA Interrupt Rating - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
THHQB1120AF2 - General Electric Bolt-on 240V 20A 1 pole circuit breaker 22kA@240V - Essential Electric Supply
THHQB1120AF2 - General Electric 20A 120/240V 1-Pole Q-Line Arc Fault Circuit Breaker 10kA Interrupt Rating - Essential Electric Supply

Description

THHQB1120AF2


THHQB1120AF2 is a General Electric 20 amp, 1-pole arc fault circuit breaker designed for residential and commercial applications.THHQB1120AF2 features a Q-Line plug-in frame, 120/240 VAC voltage rating, and a 10 kA interrupting capacity. It includes a thermal-magnetic trip unit with fixed long time and instantaneous trip settings, a Quick-make/Quick-break mechanism, and common trip bar for enhanced safety and reliability. This breaker is suitable for reverse feed and carries HACR and SWD markings, meeting NEC requirements.
    Key Specifications
    • Amperage: 20 A
    • Voltage: 120/240 VAC
    • Poles: 1
    • Interrupting Rating: 10 kAIC
    • Frame Type: Q-Line Plug-In
    • Trip Unit: Thermal Magnetic, Fixed Long Time/Instantaneous
    • Mounting Type: Plug-In
    • Special Markings: HACR, SWD
    • Suitable for Reverse Feed: Yes
    • UL File Number: E11592
    • GSA Compliant: Yes
    • Trip Style: Non-Interchangeable
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: THHQB1120AF2
  • Manufacturer : General Electric
  • Brand : General Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Q-Line
  • Type : THHQB
  • Voltage : 240
  • Amperage : 20
  • Phase : 1
  • Poles : 1
  • AIC rating : 22kA@240V
  • Connection : Bolt-on
  • Functions : Long-Time and Instantaneous Trip
  • Terminal Connection : Screw Clamp
  • Frame Size : 60A/THHQB
  • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 8 AWG
  • Breaker Type : Arc Fault Circuit Interrupter
  • Protection : Thermal Magnetic

Product Data

  • UPC : 783164652895
  • GTIN : 00783164652895
  • Country of Origin : United States
  • Dimensions : Height 2.92 in x Depth / Length 3.28 in x Width 1 in
  • Weight : 1
  • Panel Type : Bus Connections of Load Centers, Lighting Panels
  • Standards : CSA Certified, UL Listed
  • Certification : UL, CSA
