Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
THHQB1115

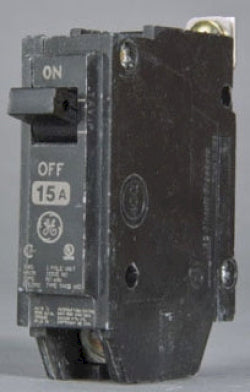

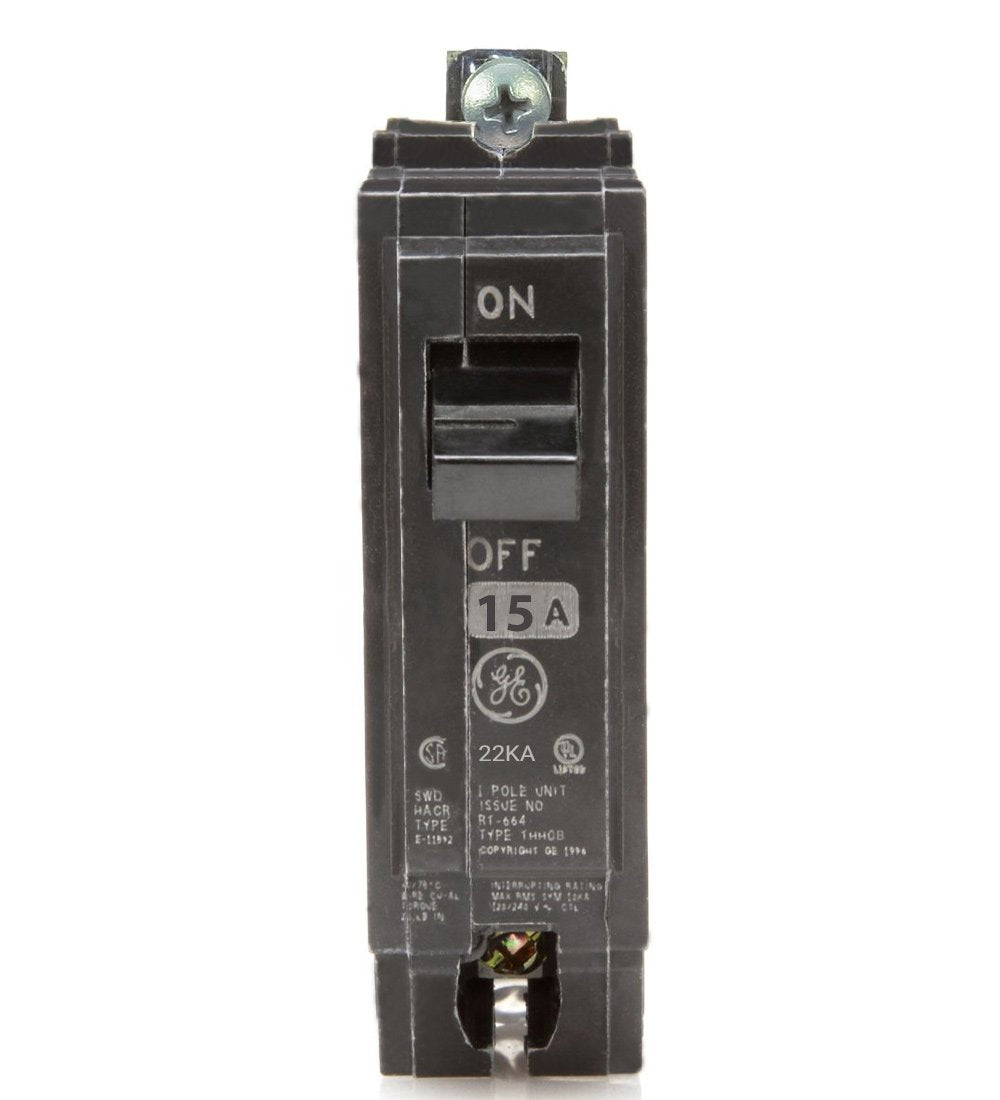

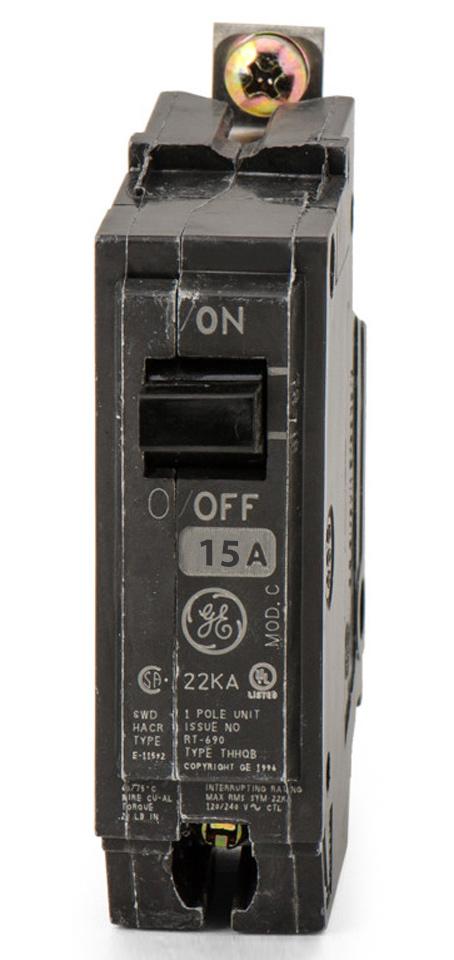

THHQB1115 is a General Electric 15 Amp, 1 Pole circuit breaker designed for residential and commercial electrical panels.This THQL series molded case circuit breaker features a 120/240 Volt rating, 10kA interrupting capacity at 120V, and a plug-in mounting type. It includes thermal magnetic trip functions with fixed long time and instantaneous trip settings, suitable for single-phase applications. The breaker is UL listed, CSA approved, and HACR rated for reliable protection.
- Amperage: 15 Amps
- Voltage: 120/240 VAC
- Poles: 1
- Interrupting Rating: 10,000 AIC at 120V
- Frame Type: THQL Series
- Mounting Type: Plug-In
- Trip Unit: Thermal Magnetic, Non-Interchangeable
- Phase: Single Phase
- Certifications: UL Listed, CSA Approved, HACR Rated
- Load Side Lug Terminals
- Dimensions: Approximately 3" x 1" x 3"
Specifications
- Part Number: THHQB1115
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q-Line
- Type : THHQB
- Voltage : 120
- Amperage : 15
- Phase : 1
- Poles : 1
- AIC rating : 22kA@120V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Protection : Thermal Magnetic
Product Data
- UPC : 783164118230
- GTIN : 00783164118230
- Dimensions : Height 3.280 in x Depth / Length 2.375 in x Width 1.000 in
- Weight : 0.35
