2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
THED136150WL

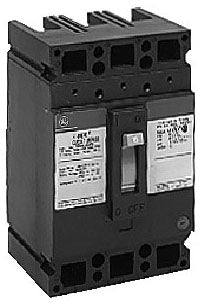

THED136150WL is a General Electric 3 Pole thermal magnetic molded case circuit breaker rated for 150 Amps and 600VAC operation.This circuit breaker features a 25kA interrupting rating at 480V and includes long-time and instantaneous trip functions for reliable protection.
- Manufacturer: General Electric
- Part Number: THED136150WL
- Amperage: 150 Amps
- Voltage Rating: 600 VAC
- Poles: 3
- Interrupting Rating: 25kA at 480V
- Frame Type: TED
- Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Trip
- Connection Type: Feed-Thru with Line and Load Side Lugs
- Temperature Rating: 40 °C
- Phase: 3
- Certifications: OEM standard, NETA testing available
Specifications
- Part Number: THED136150WL
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : E150 Line
- Type : THED
- Voltage : 600
- Amperage : 150
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783164135039
- GTIN : 00783164135039
- Weight : 3
