Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description

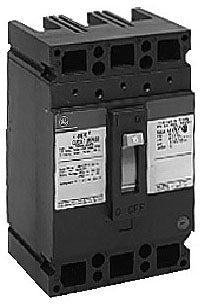

THED136100WL
THED136100WL is a General Electric 3 Pole thermal magnetic molded case circuit breaker rated for 100 Amps and 600 Volts AC.This circuit breaker features a Type THED frame with a high interrupt rating of 18 kA at 600 VAC. It includes copper/aluminum line and load lug terminals and is designed for bolt-on mounting. The breaker provides reliable protection with a thermal magnetic trip unit and meets industry certifications for safety and performance.
- Amperage: 100 Amps
- Voltage Rating: 600 VAC
- Poles: 3
- Interrupt Rating: 18 kA
- Frame Type: THED (Core E High Tier)
- Trip Unit: Thermal Magnetic
- Mounting Type: Bolt-On
- Line/Load Lug: Copper/Aluminum
- Certifications: Industry standard compliant
Specifications
- Part Number: THED136100WL
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : E150 Line
- Type : THED
- Voltage : 600
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 078316406287
- GTIN : 00783164062878
- Weight : 3
