Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description

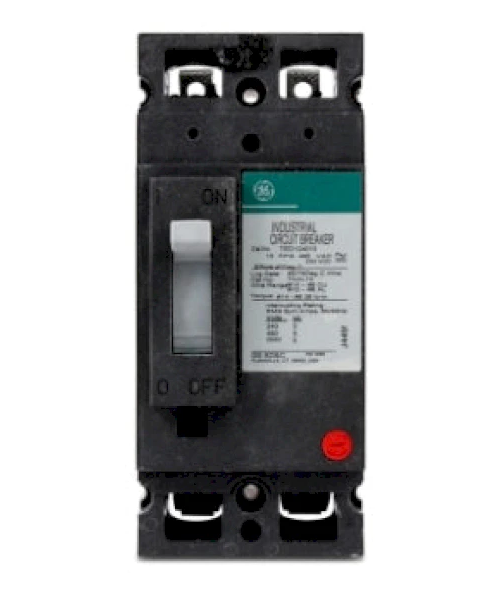

THED126030
THED126030 is a General Electric 2 pole, 30 amp, 600 volt thermal magnetic circuit breaker with a 25kA interrupting rating at 480V, designed for reliable protection in residential, commercial, and industrial applications.This molded case circuit breaker features a TED frame, long time and instantaneous trip functions, and line & load side lug terminals. It supports feed-thru wiring and is compatible with current and legacy GE breakers. The breaker is rated for AC voltage and provides high interrupting capacity for enhanced safety.
- Amperage: 30 Amps
- Voltage: 600 Volts AC
- Poles: 2
- Frame Type: TED
- Interrupt Rating: 25kA at 480V
- Trip Unit: Thermal Magnetic
- Mounting Type: Bolt-On
- Line & Load Side Lug Terminals
- Feed-Thru Capable
- Applications: Residential, Commercial, Industrial
- Certifications: Meets GE standards for molded case breakers
Specifications
- Part Number: THED126030
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : E150 Line
- Type : THED
- Voltage : 600
- Amperage : 30
- Phase : 1
- Poles : 2
- AIC rating : 25kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- Weight : 2
