THED113020WL - General Electric 1-Pole 20 Amp Molded Case Circuit Breaker 277V 65kA AIC E150 Frame

Save $492.35
SKU: THED113020WL-New
Condition: New
Price:
$254.65 $747.00
Stock:
Low inventory, please call for stock check

💡 ABB / GE Branding Notice

On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions.

As a result of this transition, certain products may be labeled as either ABB or GE depending on the manufacturing date and production batch. In many cases, the product itself remains identical in form, fit, function, and specifications, with only the branding or label differing.

Customers may receive:

  • ABB-branded products
  • GE-branded products
  • Packaging reflecting either brand

Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.

If you have questions regarding labeling, compatibility, or product identification, please contact our support team prior to ordering.

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

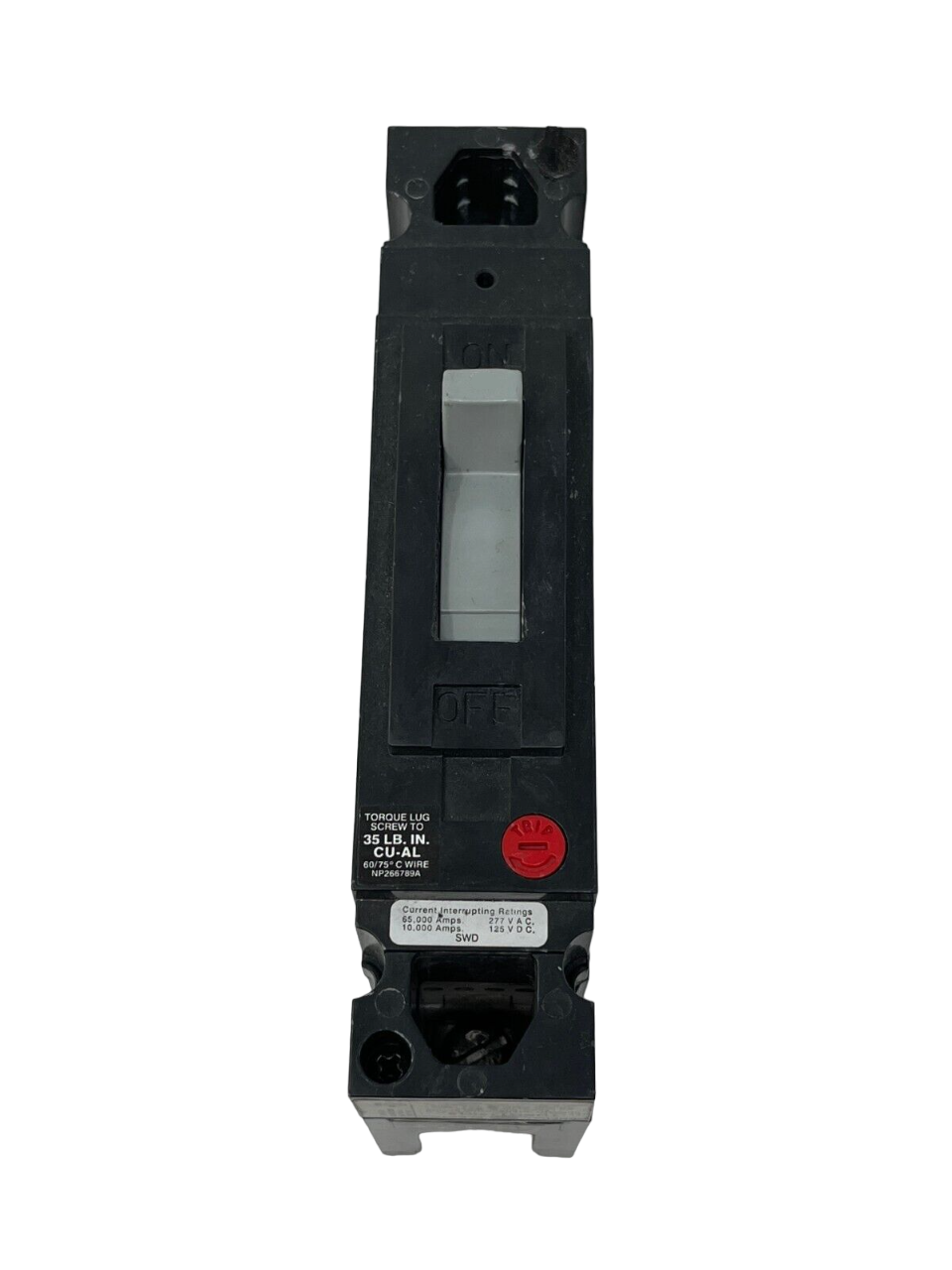

THED113020WL - General Electric Feed-Thru 20 Amp 1 Pole Circuit Breaker - Essential Electric Supply

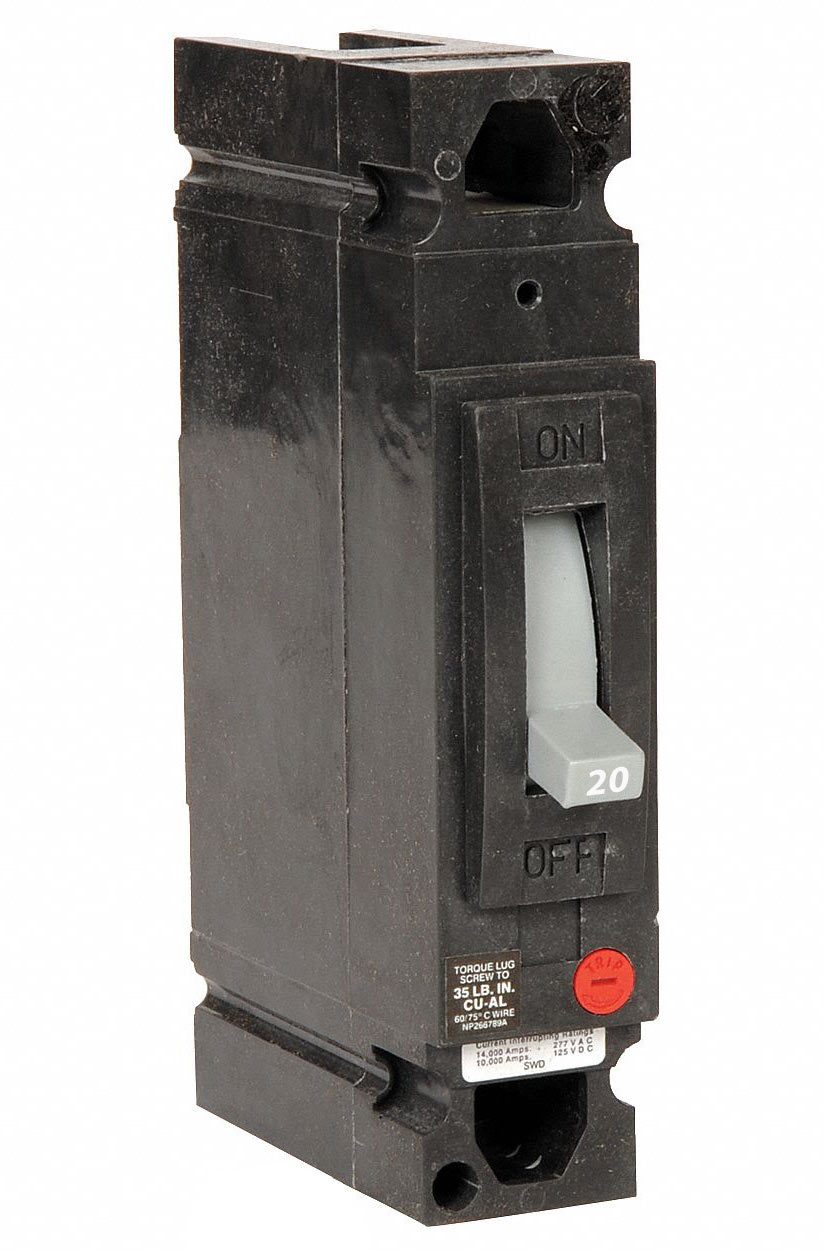

THED113020WL - General Electric 1-Pole 20 Amp Molded Case Circuit Breaker 277V 65kA AIC E150 Frame - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
THED113020WL - General Electric Feed-Thru 20 Amp 1 Pole Circuit Breaker - Essential Electric Supply
THED113020WL - General Electric 1-Pole 20 Amp Molded Case Circuit Breaker 277V 65kA AIC E150 Frame - Essential Electric Supply

Description

THED113020WL


THED113020WL is a General Electric 1-pole 20 amp molded case circuit breaker designed for reliable protection in commercial and industrial applications. This breaker features a 277VAC rating, 65kA interrupting capacity at 277V, and is part of the E150 frame series. It includes both line and load side lug terminals for easy installation and offers thermal magnetic trip protection. Suitable for use in panels requiring high interrupting capacity and dependable performance. The THED113020WL is engineered for durability and safety, meeting industry standards for molded case circuit breakers. Its compact design and robust construction make it ideal for a wide range of electrical distribution systems.
  • Part Number: THED113020WL
  • Manufacturer: General Electric
  • Amperage: 20 Amps
  • Poles: 1
  • Voltage: 277VAC
  • Interrupt Rating: 65kA @ 277V
  • Series/Frame: E150
  • Mounting Type: Lug Terminal (Line & Load)
  • Trip Unit: Thermal Magnetic
  • Application: Commercial/Industrial
  • Standards: UL Listed, CSA Certified
  • Operating Temperature: 40°C
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: THED113020WL
  • Manufacturer : General Electric
  • Brand : General Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : E150 Line
  • Type : THED
  • Voltage : 277
  • Amperage : 20
  • Phase : 1
  • Poles : 1
  • AIC rating : 65kA@277V
  • Connection : Feed-Thru
  • Functions : LI - Long-Time and Instantaneous Trip
  • Terminal Connection : Line/Load Lug
  • Frame Size : 150A/THED
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 8 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : Any

Product Data

  • UPC : 783164236941
  • GTIN : 00783164236941
  • Country of Origin : United States
  • Dimensions : 1-3/8 in x 6-5/16 in
  • Weight : 1 lb
  • Panel Type : GE Panelboards
  • Standards : UL Listed
  • Certification : UL Listed

Accesories

Part Manufacture Sub Category
TEDAS2AB1
TECBAL
TEDMOMA1
