Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
THED113020

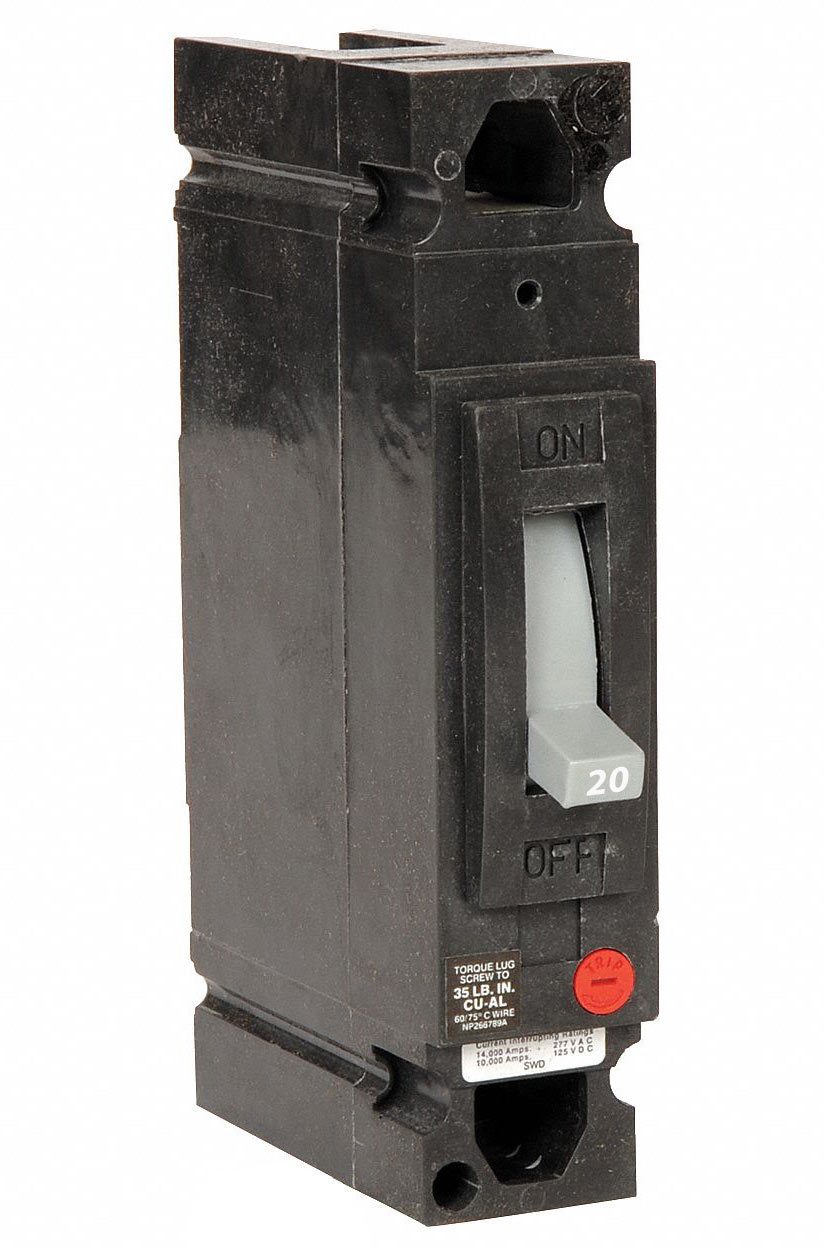

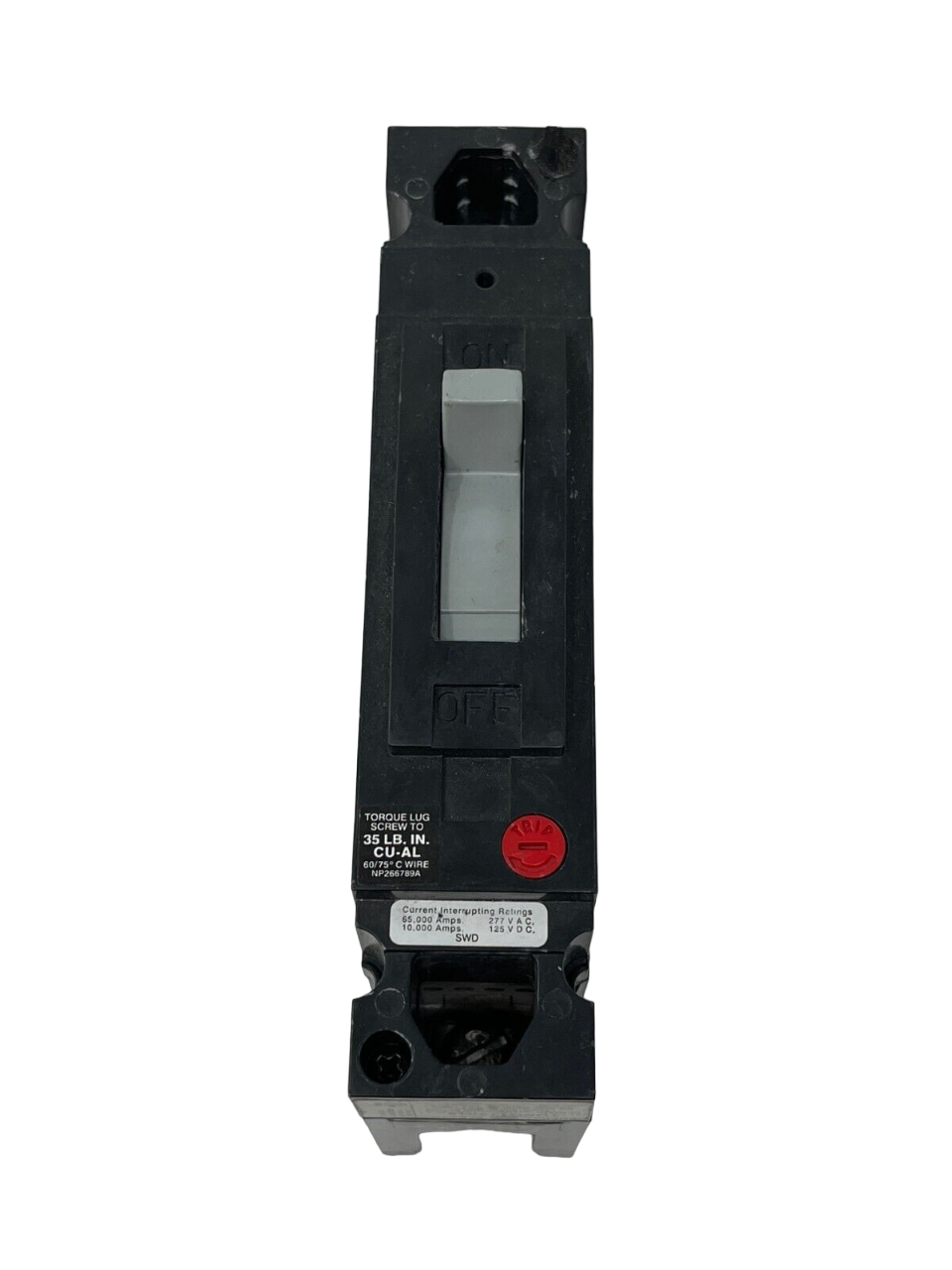

THED113020 is a General Electric 1 Pole, 20 Amp, 277VAC thermal magnetic molded case circuit breaker designed for reliable protection in commercial and industrial applications. This molded case circuit breaker features a bolt-on mounting style, long time and instantaneous trip functions, and a high interrupting capacity of 65kAIC at 480VAC. It is part of the E150 frame series and is suitable for use in 1-phase systems with a maximum temperature rating of 40°C. The breaker includes line and load side lug terminals for secure connections.
- Manufacturer: General Electric
- Series/Frame: THED / E150
- Amperage: 20A
- Voltage: 277VAC
- Poles: 1
- Mounting Type: Bolt-On
- Interrupt Rating: 65kAIC at 480VAC
- Protection Type: Thermal Magnetic
- Functions: Long Time and Instantaneous Trip
- Temperature Rating: 40°C
- Connection: Line and Load Side Lug Terminals
- Certifications: UL Listed
Specifications
- Part Number: THED113020
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : E150 Line
- Type : THED
- Voltage : 277
- Amperage : 20
- Phase : 1
- Poles : 1
- AIC rating : 65kA@277V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783164138672
- GTIN : 00783164138672
- Weight : 1
