Product Info
- Manufacturer:General Electric
- Sub-Category:Disconnect
Description
TG4326

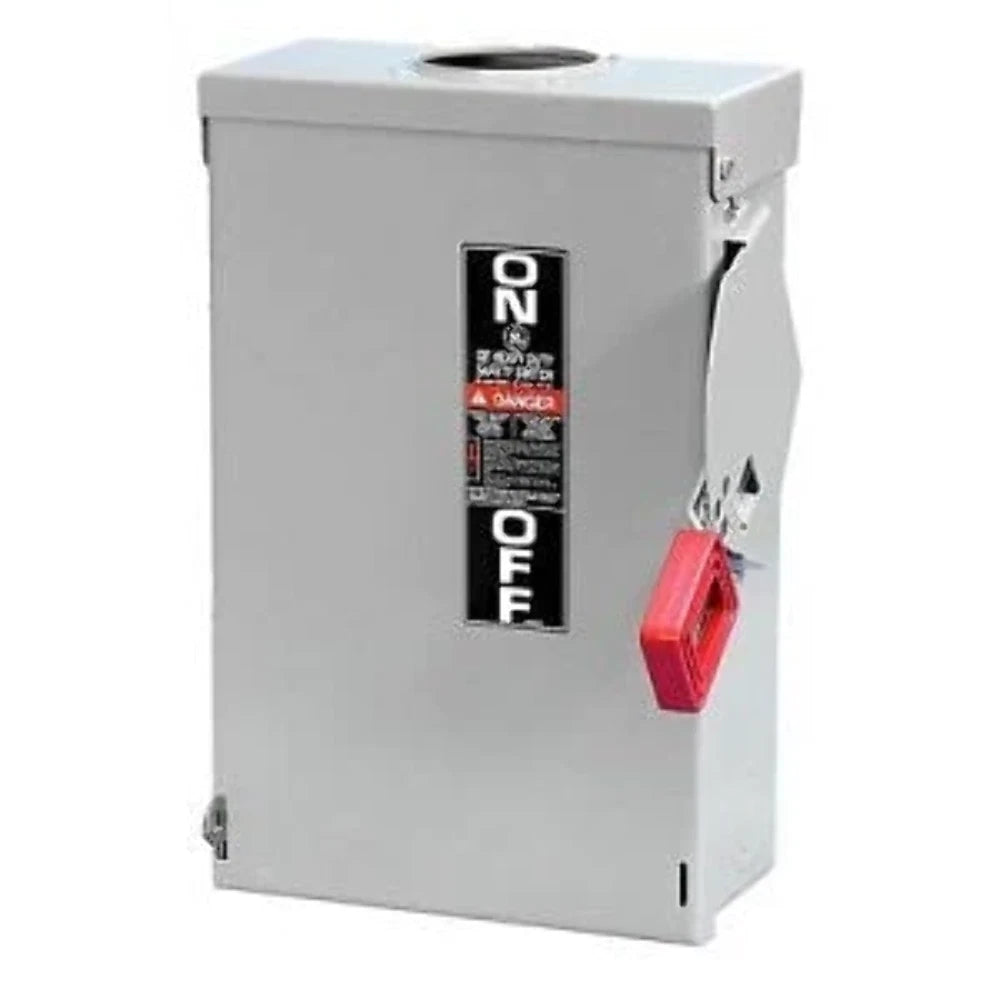

TG4326 is a General Electric 600 Amp, 240 Volt, 3-Pole fusible general duty safety switch designed for residential and light commercial applications.This TG type disconnect switch features a NEMA 1 indoor enclosure and is rated for 600 amps at 240 volts AC with 3 poles and 4 wires. It is UL listed to standard 98 for enclosed and dead front switches and includes a 10 kA interrupt rating suitable for general duty use.
- Amperage: 600 Amps
- Voltage: 240 Volts AC
- Poles: 3
- Wires: 4
- Enclosure Type: NEMA 1 (Indoor)
- Type: Fusible General Duty Safety Switch
- Interrupt Rating: 10 kA
- UL Listed to Standard 98
- Application: Residential and Light Commercial
- Phase: 3
Specifications
- Part Number: TG4326
- Manufacturer : General Electric
- Brand : General Electric
- Category : Switch
- Item Subcategory : Disconnect
- Family : Spec-Setter
- Type : TG
- Voltage : 240
- Amperage : 600
- Phase : 3
- Poles : 3
- AIC rating : 100kA@240V
- Fuse Class : R
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : 1
- Compatible Frames : ED
Product Data
- UPC : 078316400872
- GTIN : 40783164008720
- Weight : 178
