Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
TFK236175WL

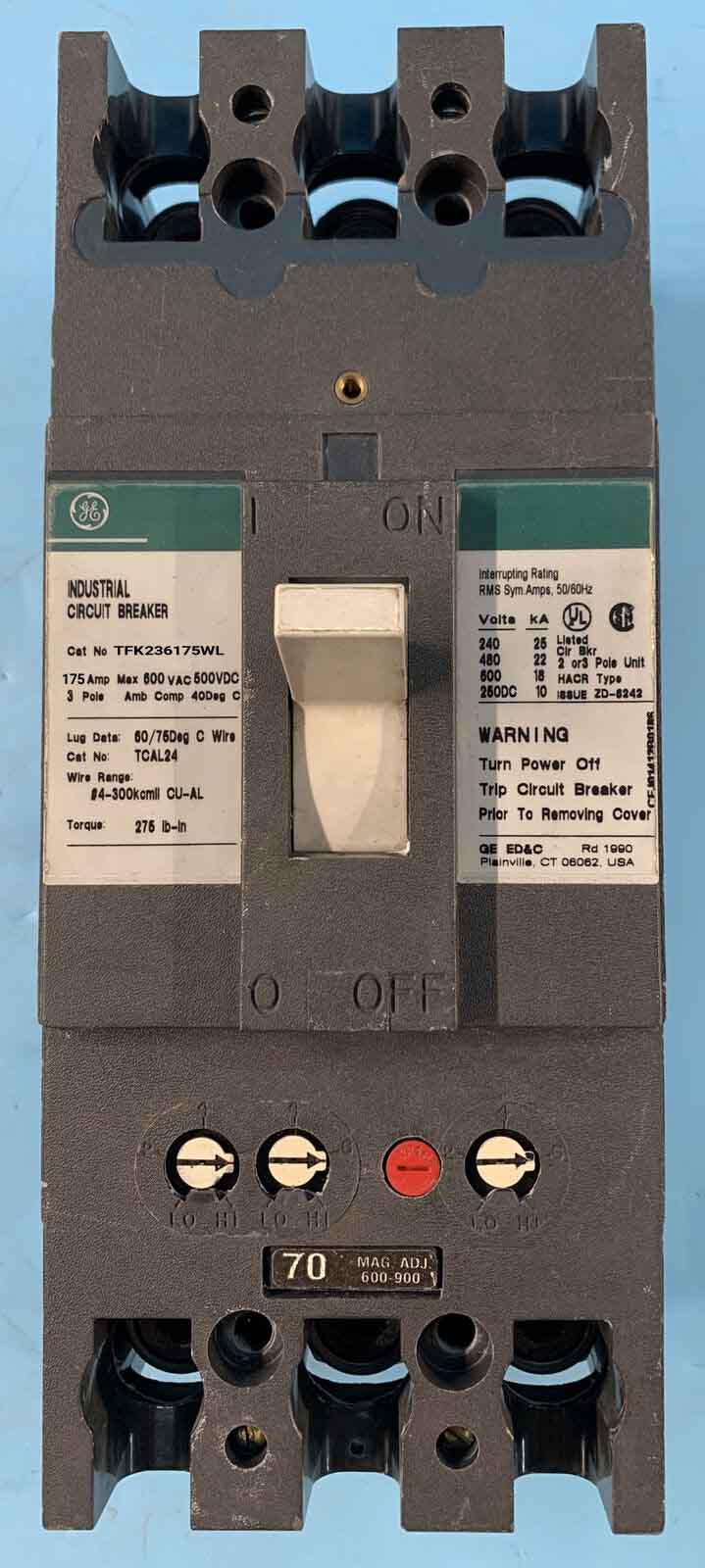

TFK236175WL is a General Electric molded case circuit breaker designed for industrial and commercial power distribution applications. This 3-pole, 175-ampere breaker operates at 600 VAC and features a thermal magnetic trip unit for reliable overcurrent protection. The F frame design provides compact mounting in standard electrical panels with bolt-on connection terminals. The breaker delivers an interrupting rating of 25 kiloampere at 240 VAC and 22 kiloampere at 480 VAC, making it suitable for demanding electrical systems. UL 489 listed for safety and performance compliance.
- Amperage Rating: 175 Amp
- Voltage Rating: 600 VAC, 250 VDC
- Number of Poles: 3-Pole
- Frame Size: F Frame
- Trip Unit: Thermal Magnetic
- Interrupting Rating: 25 kA @ 240 VAC, 22 kA @ 480 VAC
- Connection Type: Bolt-On
- Certification: UL 489 Listed
Specifications
- Part Number: TFK236175WL
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : F225 Line
- Type : TFK
- Voltage : 600
- Amperage : 175
- Phase : 3
- Poles : 3
- AIC rating : 22kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- Weight : 12
