TEYL3100B - General Electric 100 Amp 3 Pole 277/480VAC Bolt-On Thermal Magnetic Circuit Breaker

Save $1,053.04
SKU: TEYL3100B-New
Condition: New
Price:
$643.96 $1,697.00
Stock:
4 in stock
Limited availability — we'll confirm stock immediately after your order.

💡 ABB / GE Branding Notice

On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions.

As a result of this transition, certain products may be labeled as either ABB or GE depending on the manufacturing date and production batch. In many cases, the product itself remains identical in form, fit, function, and specifications, with only the branding or label differing.

Customers may receive:

  • ABB-branded products
  • GE-branded products
  • Packaging reflecting either brand

Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.

If you have questions regarding labeling, compatibility, or product identification, please contact our support team prior to ordering.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

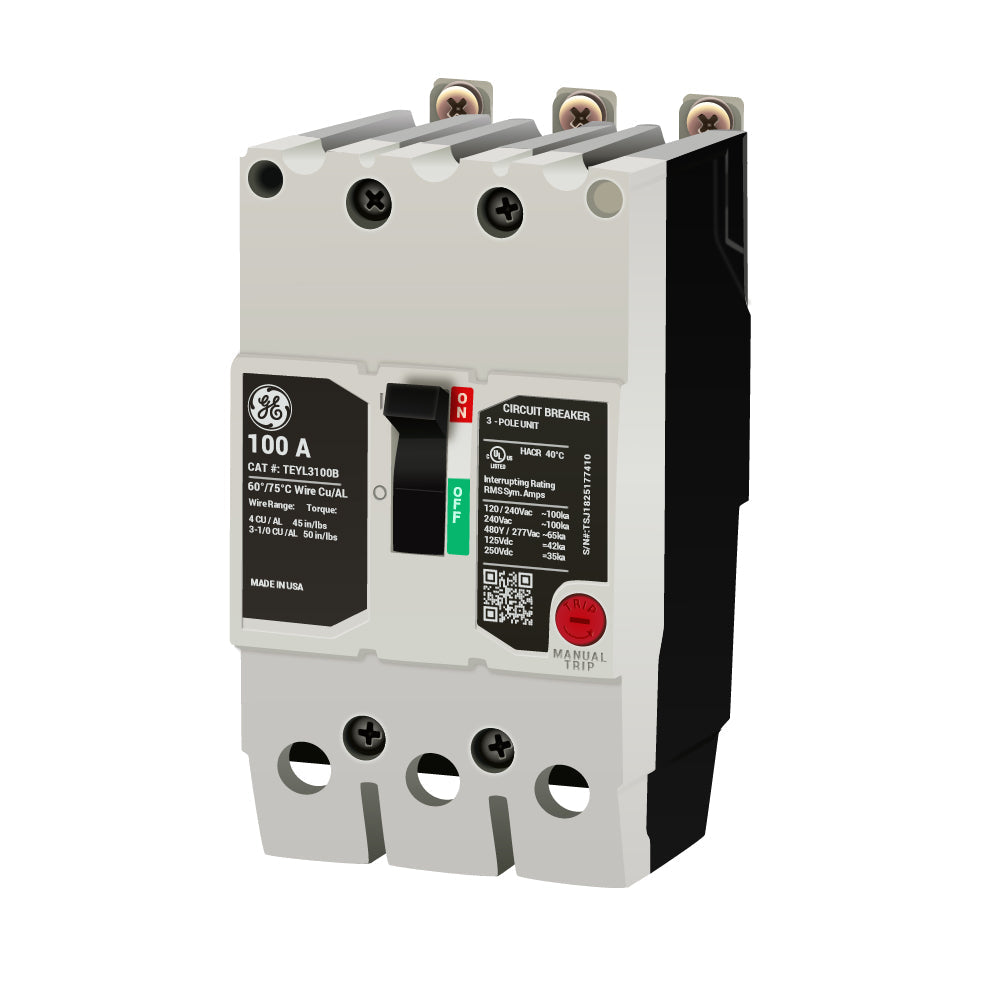

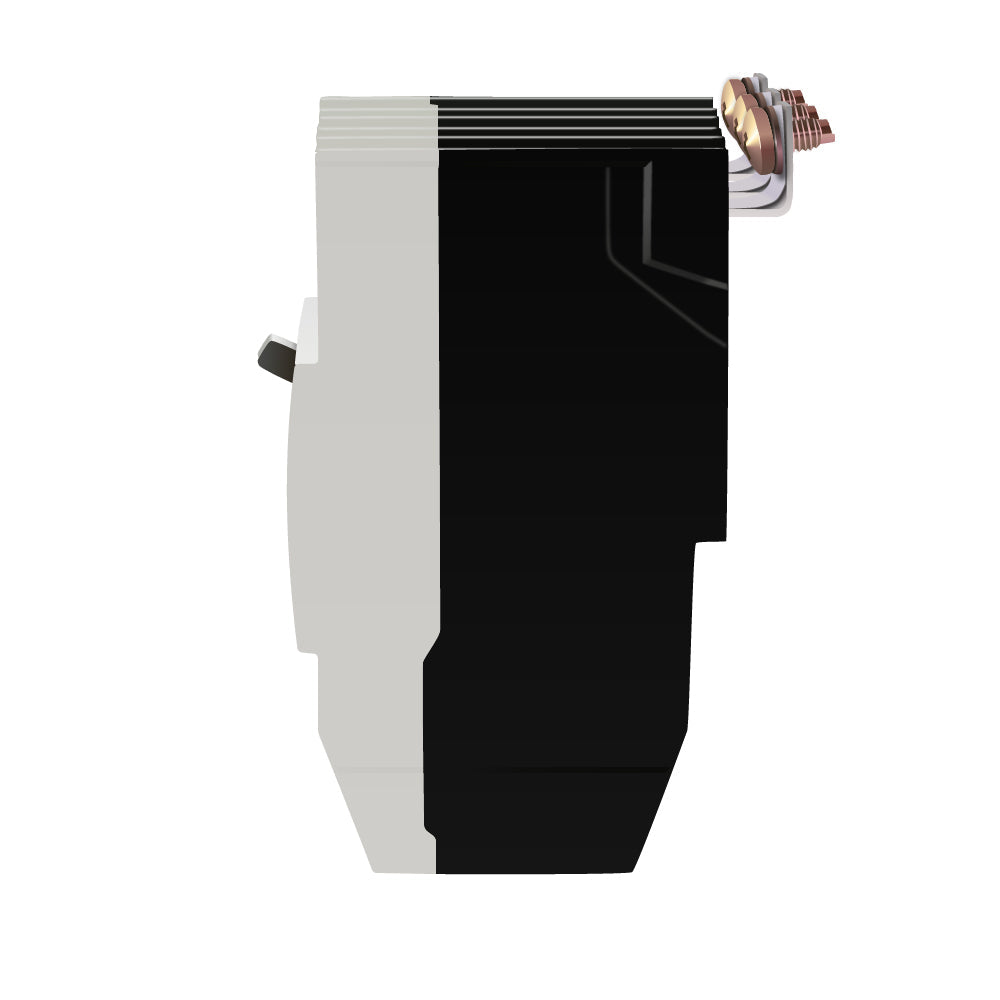

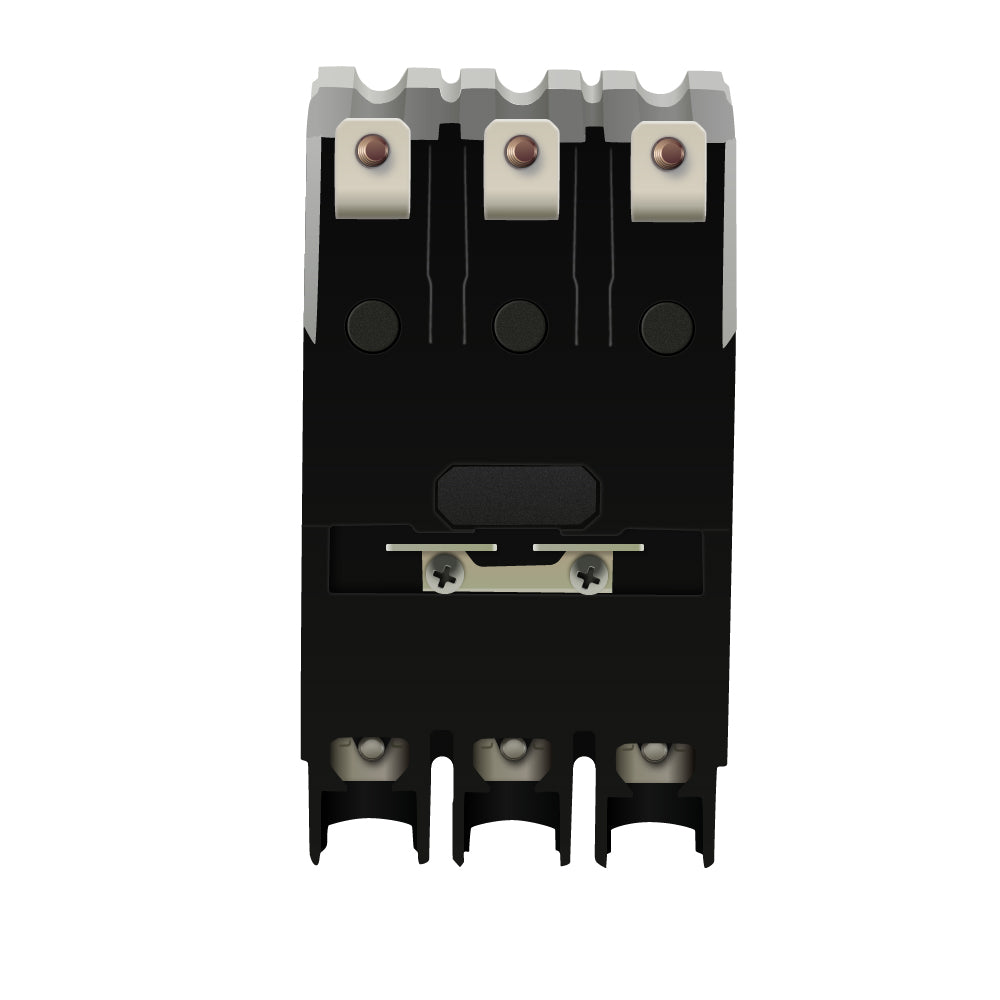

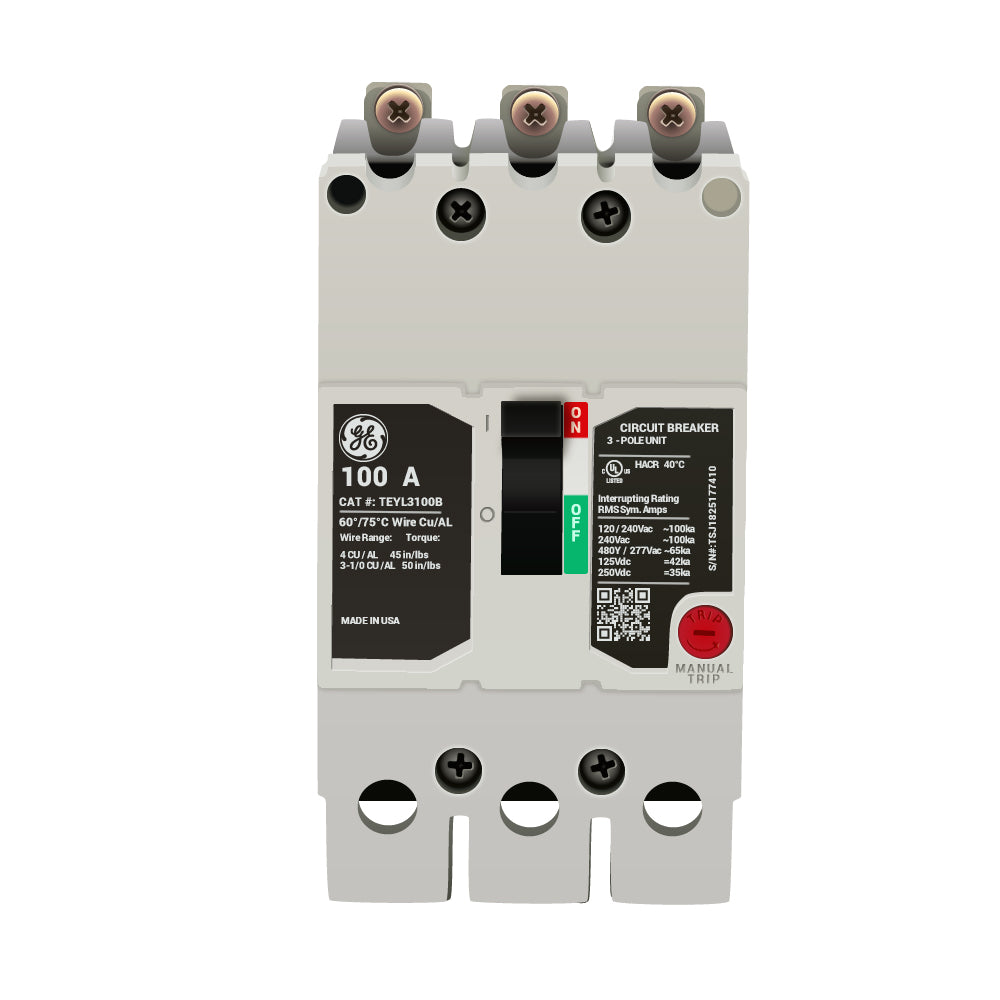

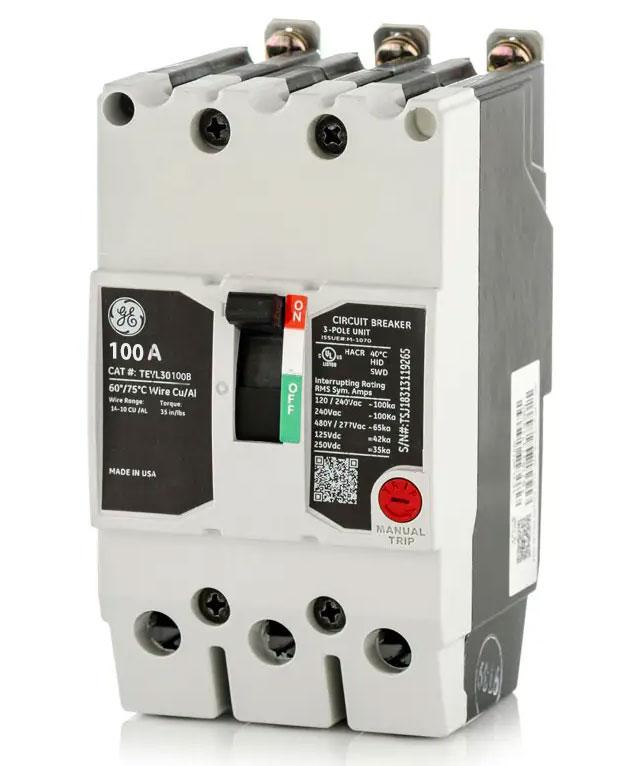

TEYL3100B - General Electric Bolt-On 100 Amp 3 Pole Circuit Breaker - Essential Electric Supply
TEYL3100B - General Electric 100 Amp 3 Pole 277/480VAC Bolt-On Thermal Magnetic Circuit Breaker - Essential Electric Supply
TEYL3100B - General Electric 100 Amp 3 Pole 277/480VAC Bolt-On Thermal Magnetic Circuit Breaker - Essential Electric Supply
TEYL3100B - General Electric 100 Amp 3 Pole 277/480VAC Bolt-On Thermal Magnetic Circuit Breaker - Essential Electric Supply
TEYL3100B - General Electric 100 Amp 3 Pole 277/480VAC Bolt-On Thermal Magnetic Circuit Breaker - Essential Electric Supply
TEYL3100B - General Electric 100 Amp 3 Pole 277/480VAC Bolt-On Thermal Magnetic Circuit Breaker - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
TEYL3100B - General Electric Bolt-On 100 Amp 3 Pole Circuit Breaker - Essential Electric Supply
TEYL3100B - General Electric 100 Amp 3 Pole 277/480VAC Bolt-On Thermal Magnetic Circuit Breaker - Essential Electric Supply
TEYL3100B - General Electric 100 Amp 3 Pole 277/480VAC Bolt-On Thermal Magnetic Circuit Breaker - Essential Electric Supply
TEYL3100B - General Electric 100 Amp 3 Pole 277/480VAC Bolt-On Thermal Magnetic Circuit Breaker - Essential Electric Supply
TEYL3100B - General Electric 100 Amp 3 Pole 277/480VAC Bolt-On Thermal Magnetic Circuit Breaker - Essential Electric Supply
TEYL3100B - General Electric 100 Amp 3 Pole 277/480VAC Bolt-On Thermal Magnetic Circuit Breaker - Essential Electric Supply

Description

TEYL3100B


TEYL3100B is a 3 pole, 100 amp thermal magnetic molded case circuit breaker from General Electric designed for 277/480VAC and 250VDC applications.This bolt-on mounted breaker features a TEY frame with a 65kA interrupting rating at 277/480VAC. It includes long-time and instantaneous trip functions for reliable protection in lighting panels and other commercial or industrial uses. UL approved with load side lug terminal connections, it supports wire sizes from AWG 4 to AWG 2.
    Key Specifications
    • Amperage: 100A
    • Voltage Rating: 277/480VAC, 250VDC
    • Poles: 3
    • Mounting Type: Bolt-On
    • Interrupting Rating: 65kAIC at 277/480VAC
    • Frame Type: TEY
    • Trip Unit: Thermal Magnetic with Long-Time and Instantaneous
    • Terminal Connection: Load Side Lug
    • Approvals: UL Listed
    • Max Wire Size: AWG 2
    • Min Wire Size: AWG 4
    • Dimensions: 3" W x 3" D x 5.2" H
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: TEYL3100B
  • Manufacturer : General Electric
  • Brand : General Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : TEYL Series
  • Type : TEYL
  • Voltage : 480
  • Amperage : 100
  • Phase : 3
  • Poles : 3
  • AIC rating : 65kA@480V
  • Connection : Bolt-on Panelboard
  • Functions : LI - Long-Time and Instantaneous
  • Terminal Connection : Lug
  • Frame Size : 125A/TEY
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 10 AWG Max. Wire Size 4 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : ABC

Product Data

  • UPC : 783164462548
  • GTIN : 00783164462630
  • Country of Origin : United States
  • Dimensions : 3 in x 5-1/4 in
  • Weight : 2 lb
  • Panel Type : GE AS Lighting Panels
  • Standards : UL
  • Certification : UL
