Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description

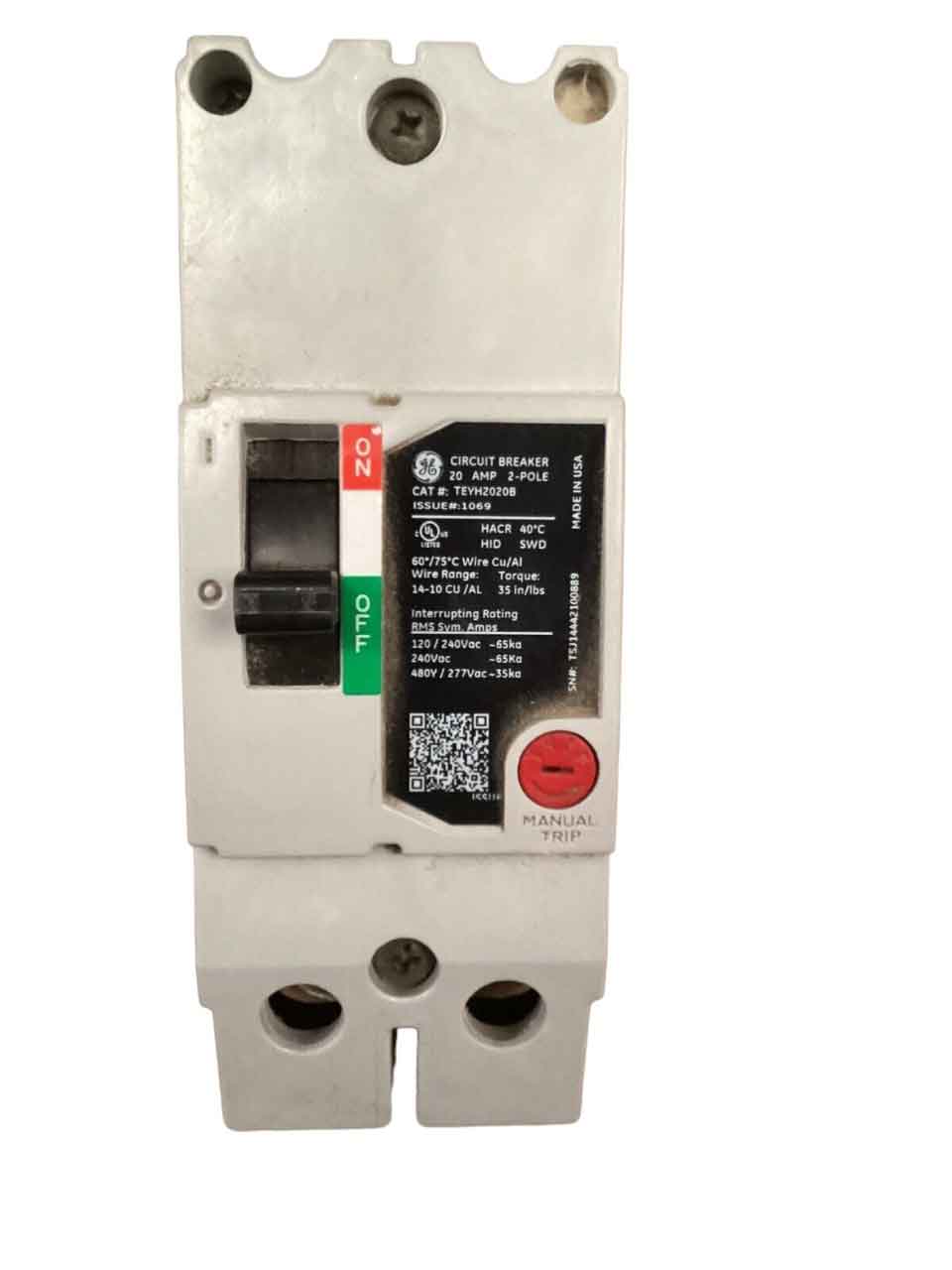

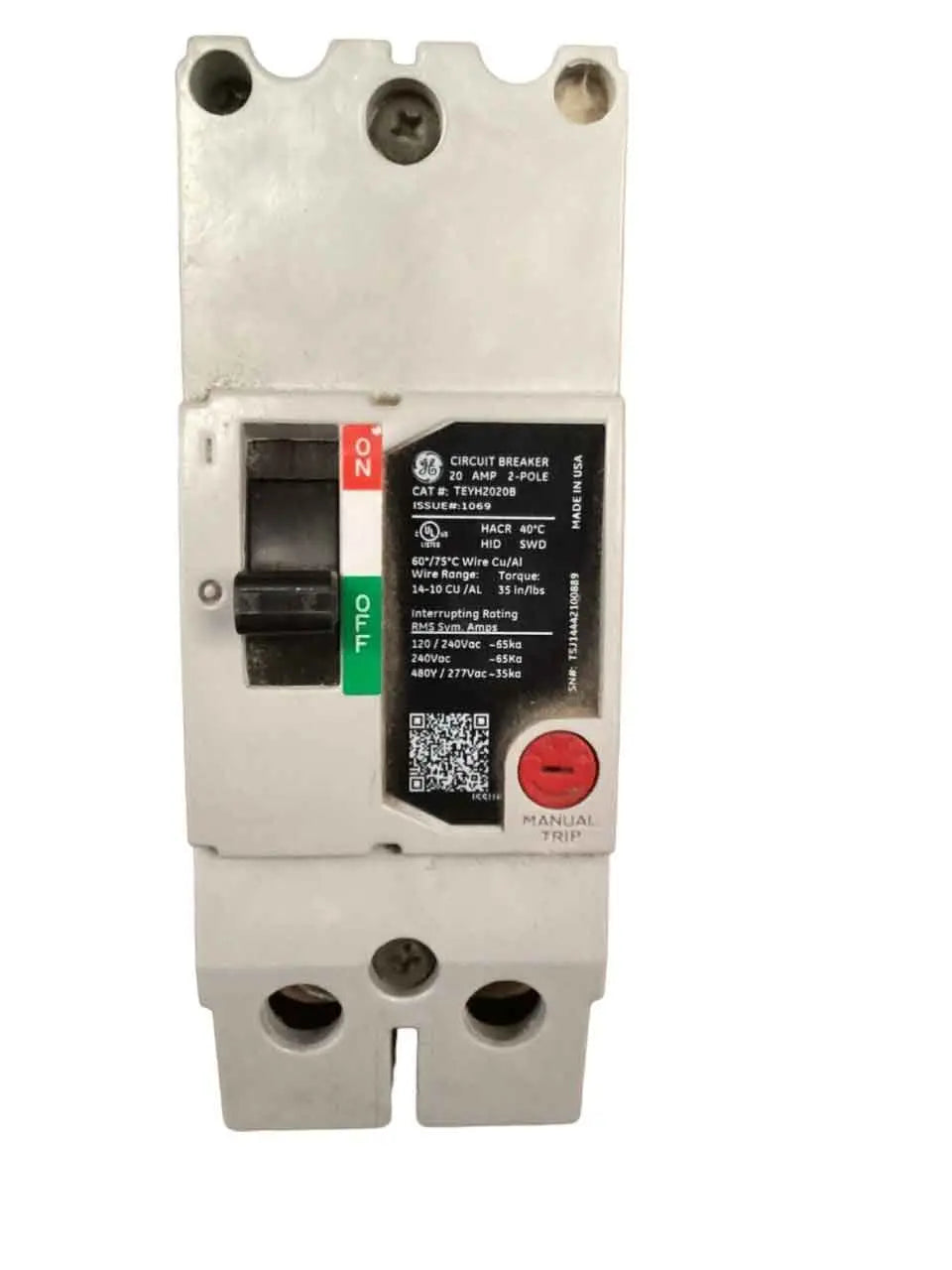

TEYH2020B
TEYH2020B is a General Electric 20 Amp, 2 pole molded case circuit breaker designed for 277/480V AC applications with bolt-on mounting.This TEYH series circuit breaker features a thermal magnetic trip unit with fixed instantaneous trip, a maximum interrupting rating of 35kA at 277/480V AC, and is UL listed. It is suitable for use with GE AS lighting panels and has lug terminal connections. The breaker is compact with a 125A/TEY frame size and supports single-phase ABC wiring.
- Amperage: 20A
- Voltage Rating: 277/480V AC
- Number of Poles: 2
- Mounting Type: Bolt-On Panelboard
- Interrupting Rating: 35kA at 277/480V AC
- Series/Frame: TEYH / 125A
- Trip Unit: Thermal Magnetic with Fixed Instantaneous Trip
- Terminal Connection: Lug (Screw Clamp)
- Phase: Single (ABC)
- Standards: UL Listed
- Dimensions: Height 5.2 in, Width 2 in, Depth 3 in
Specifications
- Part Number: TEYH2020B
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : TEYH Series
- Type : TEYH
- Voltage : 480
- Amperage : 20
- Phase : 1
- Poles : 2
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783164461978
- GTIN : 00783164461978
- Weight : 1
