TEYF380 - General Electric 80 Amp 3 Pole 480V Bolt-On Circuit Breaker TEYF Frame

Save $309.28
SKU: TEYF380-New
Condition: New
Price:
$473.72 $783.00
Stock:
Low inventory, please call for stock check

💡 ABB / GE Branding Notice

On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions.

As a result of this transition, certain products may be labeled as either ABB or GE depending on the manufacturing date and production batch. In many cases, the product itself remains identical in form, fit, function, and specifications, with only the branding or label differing.

Customers may receive:

  • ABB-branded products
  • GE-branded products
  • Packaging reflecting either brand

Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.

If you have questions regarding labeling, compatibility, or product identification, please contact our support team prior to ordering.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

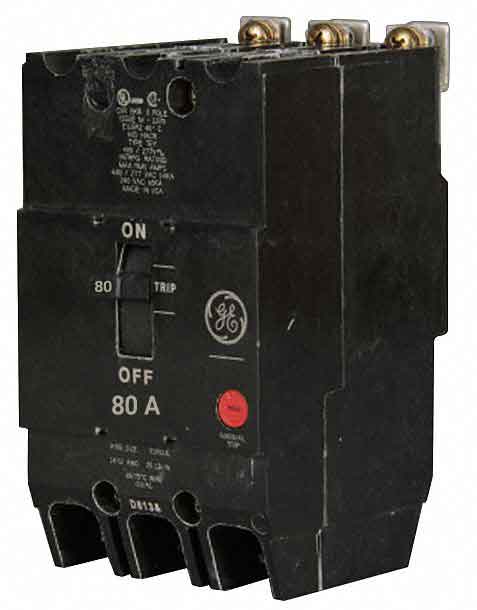

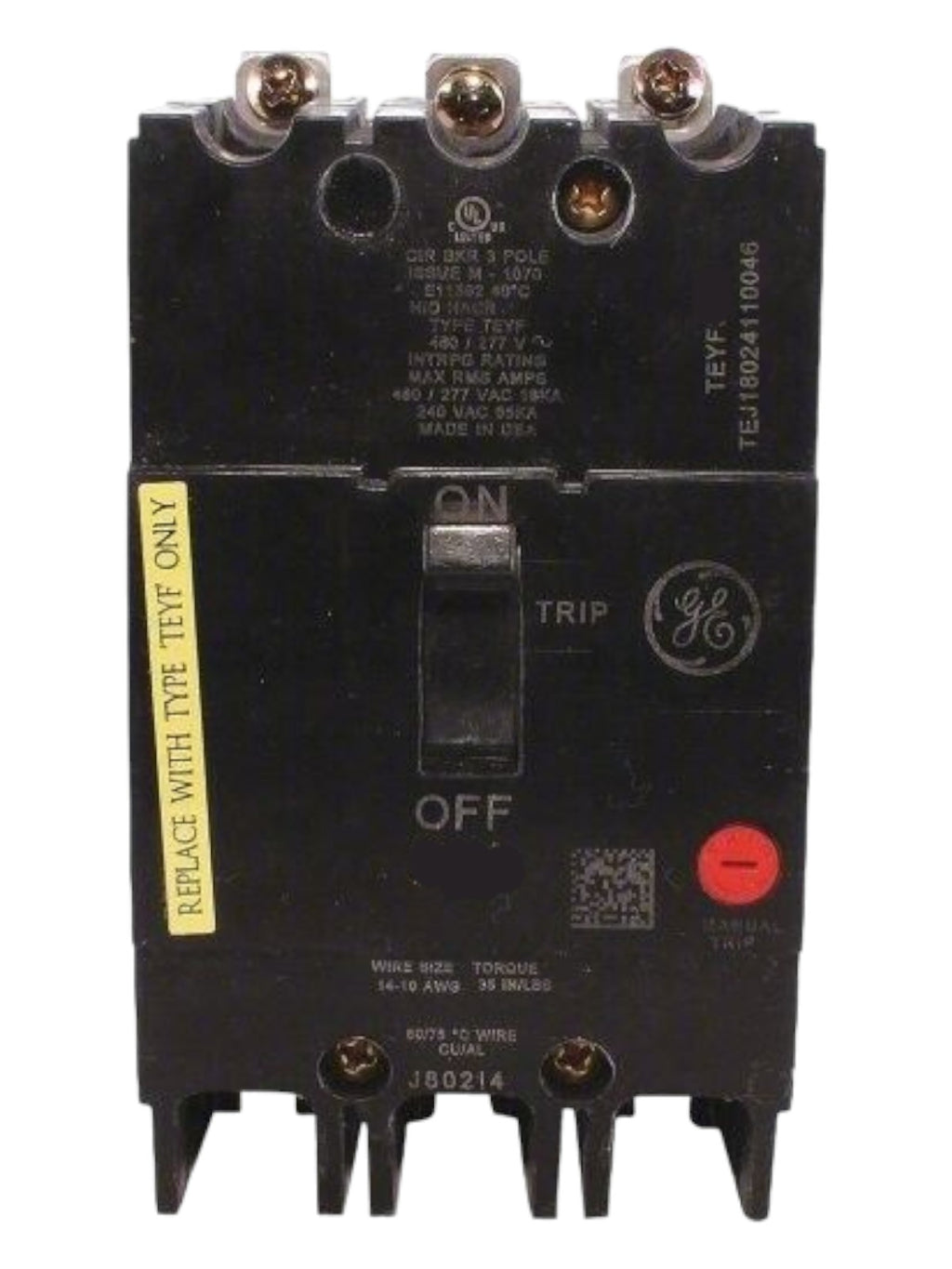

TEYF380 - General Electric Bolt-on Panelboard 480V 80A 3 pole circuit breaker 18kA@480V - Essential Electric Supply
TEYF380 - General Electric 80 Amp 3 Pole 480V Bolt-On Circuit Breaker TEYF Frame - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
TEYF380 - General Electric Bolt-on Panelboard 480V 80A 3 pole circuit breaker 18kA@480V - Essential Electric Supply
TEYF380 - General Electric 80 Amp 3 Pole 480V Bolt-On Circuit Breaker TEYF Frame - Essential Electric Supply

Description

TEYF380


TEYF380 is a General Electric 3 pole, 80 amp bolt-on circuit breaker designed for use in lighting panel applications.

This TEYF frame breaker supports system voltages up to 480/277 Vac with an interrupting rating of 65 KAIC at 120/240 Vac and 18 KAIC at 277/480 Vac. It features a fixed trip function (LI trip style) and is suitable for reverse feed. The breaker accepts wire sizes from #4 to 1/0 copper or aluminum and is UL and CSA certified (UL File #E11592, CSA File #LR57114). It is a compact, one-inch wide per pole breaker with bolt-on mounting for easy installation.

  • Poles: 3
  • Amperage: 80 A
  • Voltage Rating: 480/277 Vac
  • Interrupting Rating: 65 KAIC @ 120/240 Vac, 18 KAIC @ 277/480 Vac
  • Frame Type: TEYF
  • Mounting Type: Bolt-On
  • Trip Style: Fixed LI (Long Instantaneous)
  • Wire Range: #4-1/0 Cu/Al
  • Suitable for Reverse Feed: Yes
  • UL Listed: Yes (E11592)
  • CSA Certified: Yes (LR57114)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

  • Part Number: TEYF380
  • Manufacturer : General Electric
  • Brand : General Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : TEYF Series
  • Type : TEYF
  • Voltage : 480
  • Amperage : 80
  • Phase : 3
  • Poles : 3
  • AIC rating : 18kA@480V
  • Connection : Bolt-on Panelboard
  • Functions : Long Time and Instantaneous Trip
  • Terminal Connection : Lug
  • Frame Size : 125A/TEY
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 4 AWG Max. Wire Size 1/0 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : ABC

Product Data

  • UPC : 783164388572
  • GTIN : 00783164388572
  • Country of Origin : United States
  • Dimensions : 3 in x 5-1/4 in
  • Weight : 2
  • Panel Type : GE AE Lighting Panels
  • Standards : CSA, UL
  • Certification : CSA, UL
