TEYF3100 - General Electric 3 Pole 100 Amp 277/480VAC Bolt-On Circuit Breaker TEY Frame

Save $282.94
SKU: TEYF3100-New
Condition: New
Price:
$500.06 $783.00
Stock:
11 In stock, ready to be shipped

💡 ABB / GE Branding Notice

On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions.

As a result of this transition, certain products may be labeled as either ABB or GE depending on the manufacturing date and production batch. In many cases, the product itself remains identical in form, fit, function, and specifications, with only the branding or label differing.

Customers may receive:

  • ABB-branded products
  • GE-branded products
  • Packaging reflecting either brand

Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.

If you have questions regarding labeling, compatibility, or product identification, please contact our support team prior to ordering.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

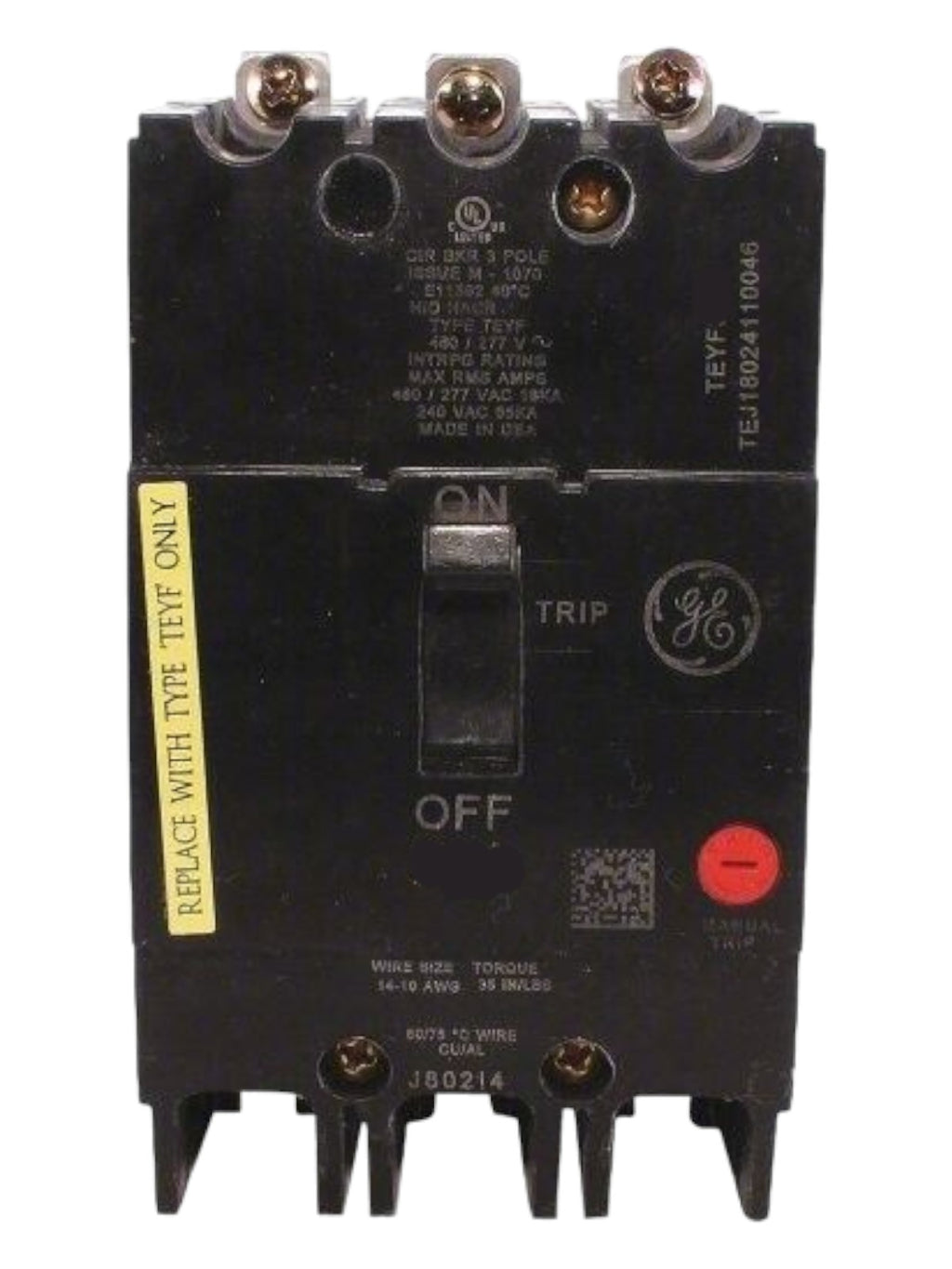

TEYF3100 - General Electric Bolt-on Panelboard 480V 100A 3 pole circuit breaker 18kA@480V - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
TEYF3100 - General Electric Bolt-on Panelboard 480V 100A 3 pole circuit breaker 18kA@480V - Essential Electric Supply

Description

TEYF3100


TEYF3100 is a General Electric 3 Pole 100 Amp circuit breaker designed for use in 277/480VAC systems with bolt-on mounting.This TEY frame molded case circuit breaker features a thermal magnetic trip unit, providing reliable protection for electrical circuits. It supports 3 poles with a voltage rating of 277/480VAC and 250VDC, and offers an interrupt rating typically around 18kAIC. The compact design allows for easy installation in lighting and power distribution panels.
  • Manufacturer: General Electric
  • Part Number: TEYF3100
  • Amperage: 100 Amps
  • Voltage Rating: 277/480VAC, 250VDC
  • Poles: 3
  • Mounting Type: Bolt-On
  • Frame Type: TEY
  • Trip Unit: Thermal Magnetic
  • Interrupt Rating: Approx. 18kAIC
  • Application: Molded Case Circuit Breaker
  • Certifications: UL Listed (typical for GE breakers)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: TEYF3100
  • Manufacturer : General Electric
  • Brand : General Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : TEYF Series
  • Type : TEYF
  • Voltage : 480
  • Amperage : 100
  • Phase : 3
  • Poles : 3
  • AIC rating : 18kA@480V
  • Connection : Bolt-on Panelboard
  • Functions : Long Time and Instantaneous Trip
  • Terminal Connection : Lug
  • Frame Size : 125A/TEY
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 4 AWG Max. Wire Size 1/0 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : ABC

Product Data

  • UPC : 783164388596
  • GTIN : 00783164388596
  • Country of Origin : United States
  • Dimensions : 3 in x 5-1/4 in
  • Weight : 2
  • Panel Type : GE AE Lighting Panels
  • Standards : CSA, UL
  • Certification : CSA, UL
