Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description

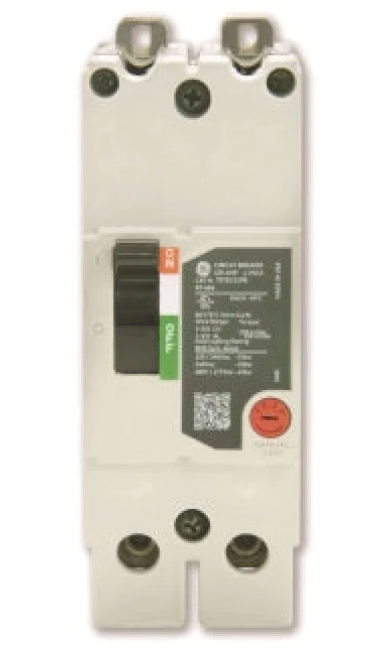

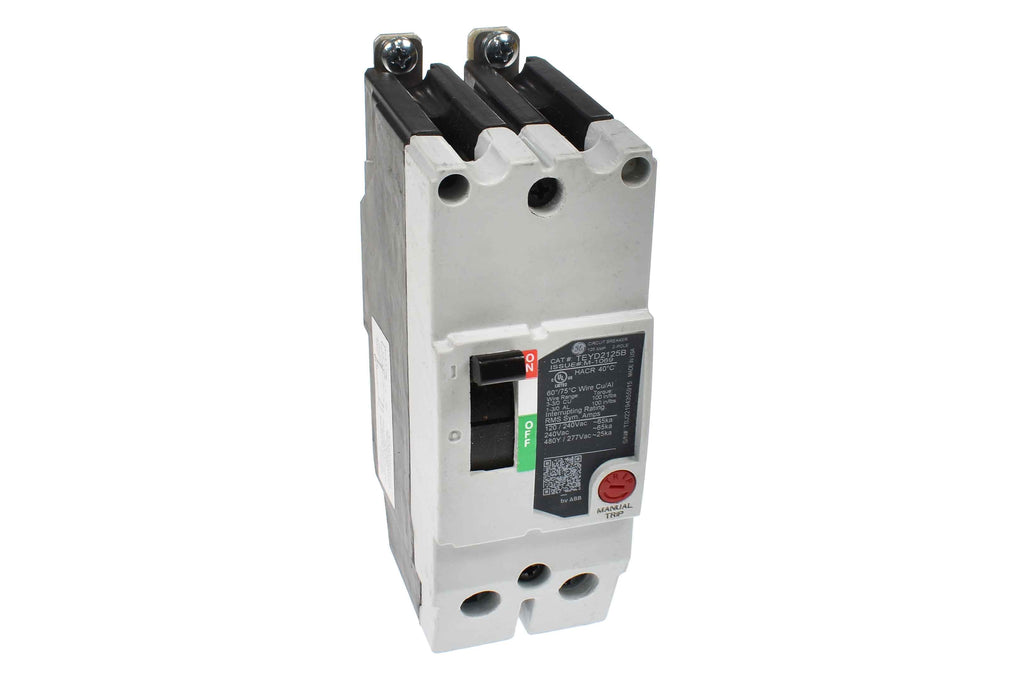

TEYD2125B
TEYD2125B is a General Electric 125A 2-pole molded case circuit breaker designed for use in 480V electrical systems. This compact bolt-on breaker features a TEYD frame and is suitable for a variety of commercial and industrial applications. The TEYD2125B offers reliable protection with a thermal magnetic trip unit and is engineered for use on grounded 480Y/277 Vac systems. Its one-inch per pole width and bolt-on mounting design make it ideal for space-constrained panels and lighting distribution boards.
- Amperage: 125A
- Number of Poles: 2
- System Voltage: 480/277 Vac
- Mounting Type: Bolt-On
- Interrupting Rating: 25kA @ 480V
- Frame Type: TEYD
- Series: TEY
- Trip Unit: Thermal Magnetic
- Application: Commercial, Industrial
- Width: 1 inch per pole
Specifications
- Part Number: TEYD2125B
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : TEYD Series
- Type : TEYD
- Voltage : 480
- Amperage : 125
- Phase : 1
- Poles : 2
- AIC rating : 25kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Lug
- Frame Size : 125A/TEY
- MCM Size : Min. Wire Size 10 AWG Max. Wire Size 4 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
- Phase Connection : ABC
Product Data
- UPC : 078316446170
- GTIN : 00783164461701
- Country of Origin : United States
- Dimensions : 2 in x 5-1/4 in
- Weight : 1
- Panel Type : GE AS Lighting Panels
- Standards : UL
- Certification : UL
