TEYD1025B - General Electric 25A 480V 1 Pole Bolt-On Molded Case Circuit Breaker, TEYD Series, Thermal Magnetic Trip, 25kA AIC, UL 489

Save $188.15
SKU: TEYD1025B-New
Condition: New
Price:
$162.85 $351.00
Stock:
Low inventory, please call for stock check

💡 ABB / GE Branding Notice

On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions.

As a result of this transition, certain products may be labeled as either ABB or GE depending on the manufacturing date and production batch. In many cases, the product itself remains identical in form, fit, function, and specifications, with only the branding or label differing.

Customers may receive:

  • ABB-branded products
  • GE-branded products
  • Packaging reflecting either brand

Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.

If you have questions regarding labeling, compatibility, or product identification, please contact our support team prior to ordering.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

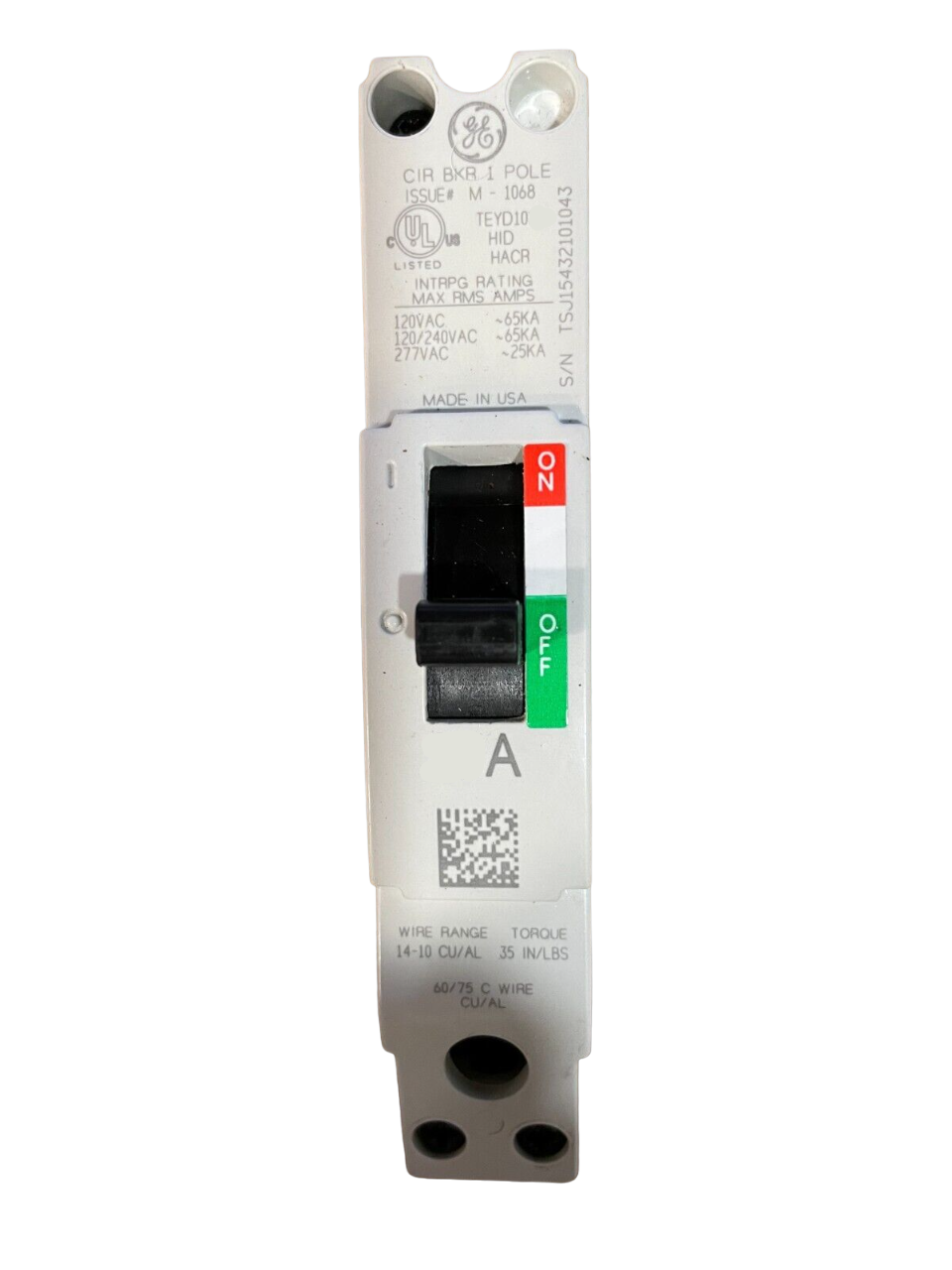

TEYD1025B - General Electric Bolt-On 25 Amp 1 Pole Circuit Breaker - Essential Electric Supply
TEYD1025B - General Electric 25A 480V 1 Pole Bolt-On Molded Case Circuit Breaker, TEYD Series, Thermal Magnetic Trip, 25kA AIC, UL 489 - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
TEYD1025B - General Electric Bolt-On 25 Amp 1 Pole Circuit Breaker - Essential Electric Supply
TEYD1025B - General Electric 25A 480V 1 Pole Bolt-On Molded Case Circuit Breaker, TEYD Series, Thermal Magnetic Trip, 25kA AIC, UL 489 - Essential Electric Supply

Description

TEYD1025B


TEYD1025B is a General Electric molded case circuit breaker designed for reliable protection in lighting panel and power distribution applications.

This compact, bolt-on breaker features a thermal magnetic trip unit, is rated for 25A at 480V AC (also suitable for 277V AC), and offers a high interrupting capacity of 25kA. It is part of the TEYD series, engineered for use in GE AS lighting panels, and is certified to UL 489 standards for safety and performance.

    Key Specifications
  • Amperage: 25A
  • Voltage: 480V AC (277/480V AC rated)
  • Poles: 1
  • Mounting Type: Bolt-on panelboard
  • Interrupt Rating: 25kA at 277V AC, 25kA at 480V AC
  • Series/Frame: TEYD Series
  • Trip Unit: Thermal magnetic
  • Certifications: UL 489
  • Connection: Lug terminal
  • Phase: 1
  • Width: 1" per pole
  • Max Wire Size: 4 AWG
  • Min Wire Size: 10 AWG

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: TEYD1025B
  • Manufacturer : General Electric
  • Brand : General Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : TEYD Series
  • Type : TEYD
  • Voltage : 480
  • Amperage : 25
  • Phase : 1
  • Poles : 1
  • AIC rating : 25kA@480V
  • Connection : Bolt-on Panelboard
  • Functions : Long Time and Instantaneous Trip
  • Terminal Connection : Lug
  • Frame Size : 125A/TEY
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 10 AWG Max. Wire Size 4 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : ABC

Product Data

  • UPC : 783164461480
  • GTIN : 00783164461480
  • Country of Origin : United States
  • Weight : 1 lb
  • Panel Type : GE AS Lighting Panels
  • Standards : UL
  • Wire Size : AWG 10 to AWG 4
