Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
TEY320ST12

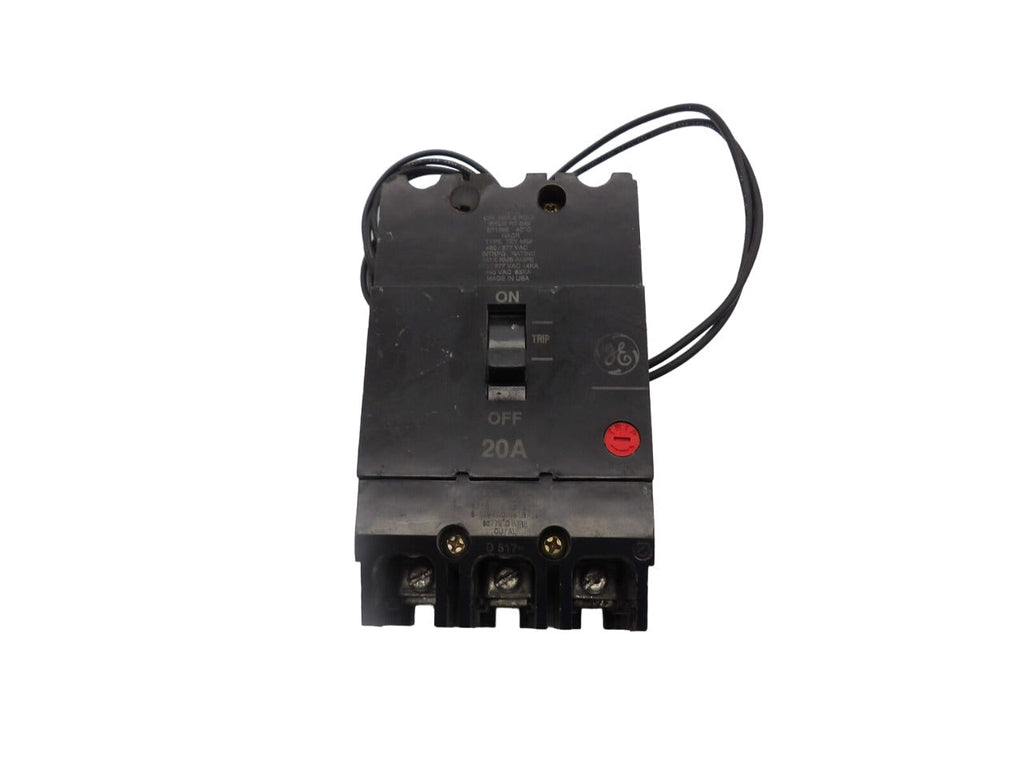

TEY320ST12 is a 3-pole, 20 amp, 480 volt thermal magnetic circuit breaker from General Electric designed for bolt-on mounting.This compact TEY series breaker features a thermal magnetic trip unit with long time and instantaneous trip functions, suitable for 3-phase applications. It has a 14kA interrupting rating at 480 VAC and includes load side lug terminals and a 120V shunt trip option.
- Manufacturer: General Electric
- Part Number: TEY320ST12
- Amperage: 20 A
- Voltage Rating: 480 VAC
- Number of Poles: 3
- Frame Type: TEY
- Mounting Type: Bolt-On
- Interrupting Rating: 14 kA at 480 VAC
- Trip Unit: Thermal Magnetic with long time and instantaneous trip
- Load Side Lug Terminals
- 120V Shunt Trip Capability
- Certifications: NETA tested available
Specifications
- Part Number: TEY320ST12
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q-Line
- Type : TEY
- Voltage : 480
- Amperage : 20
- Phase : 3
- Poles : 3
- AIC rating : 14kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783164196627
- GTIN : 00783164196627
- Weight : 1
- Certification : Ul Listed
