2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
TEY190

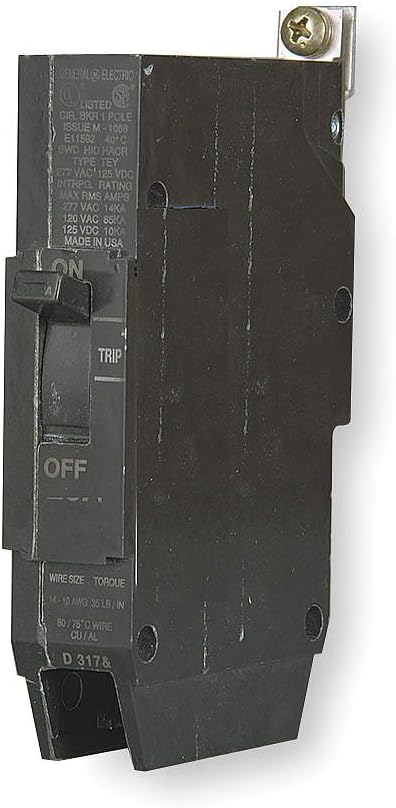

TEY190 is a General Electric 90 Amp 1 Pole bolt-on circuit breaker designed for reliable protection in lighting panels and general power distribution applications. This TEY-frame molded case circuit breaker features a thermal magnetic trip unit, 14kA interrupt rating at 277V AC, and is suitable for use in commercial and industrial environments. The breaker is designed for bolt-on mounting and offers long time and instantaneous trip functions for enhanced safety and performance.
- Part Number: TEY190
- Manufacturer: General Electric
- Amperage: 90 Amps
- Voltage: 277V AC
- Poles: 1
- Mounting Type: Bolt-On
- Interrupt Rating: 14kA at 277V AC
- Series/Frame: TEY
- Trip Unit: Thermal Magnetic
- Application: Lighting Panels, Power Distribution
- Standards: UL Listed
- Weight: 1.00 lb
Specifications
- Part Number: TEY190
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q-Line
- Type : TEY
- Voltage : 277
- Amperage : 90
- Phase : 1
- Poles : 1
- AIC rating : 14kA@277V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Lug
- Frame Size : 125A/TEY
- Temp Rating : -13–158 °F (-25–70 °C)
- MCM Size : Min. Wire Size 14 AWG Max. Wire Size 10 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
- Phase Connection : Any
Product Data
- UPC : 783164180916
- GTIN : 00783164182187
- Country of Origin : United States
- Weight : 3
- Panel Type : GE AE Lighting Panels
- Standards : CSA, UL
- Certification : UL Listed
