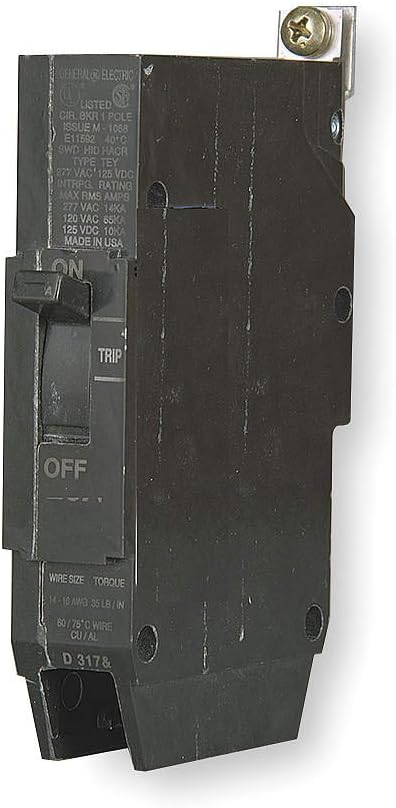

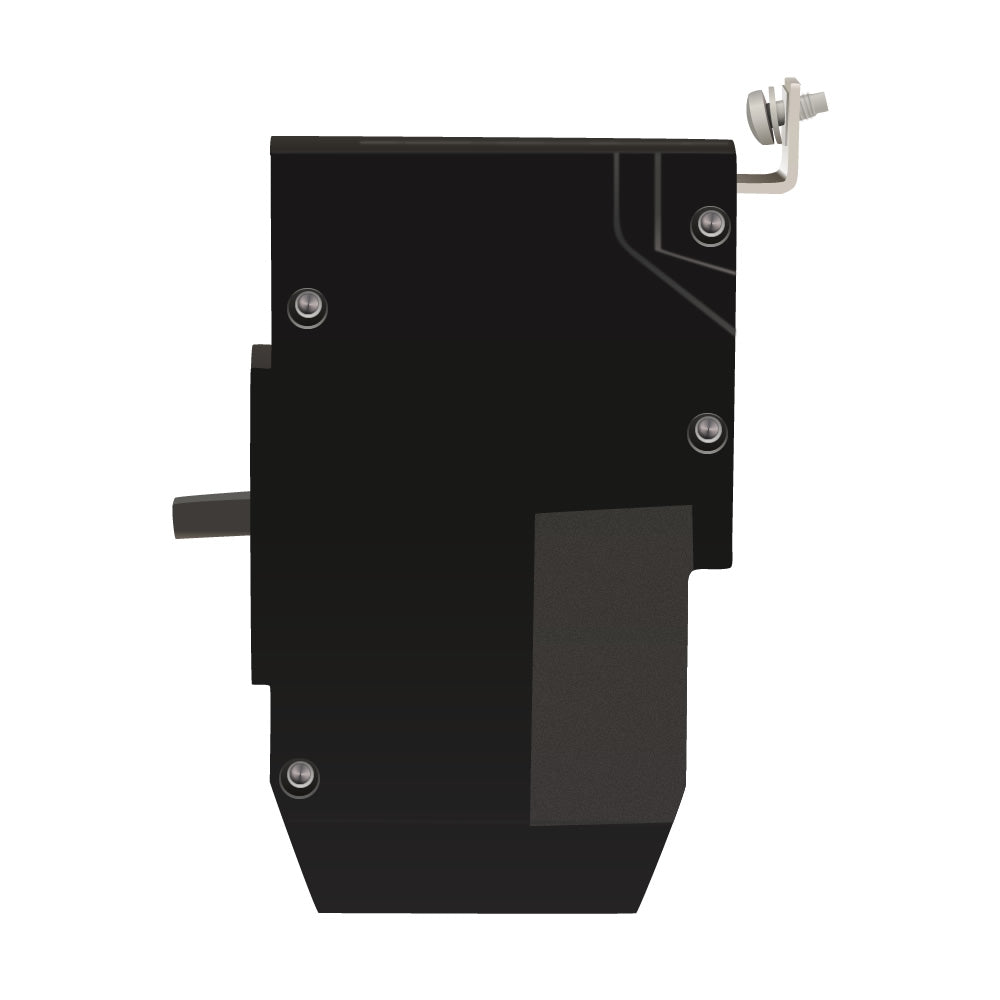

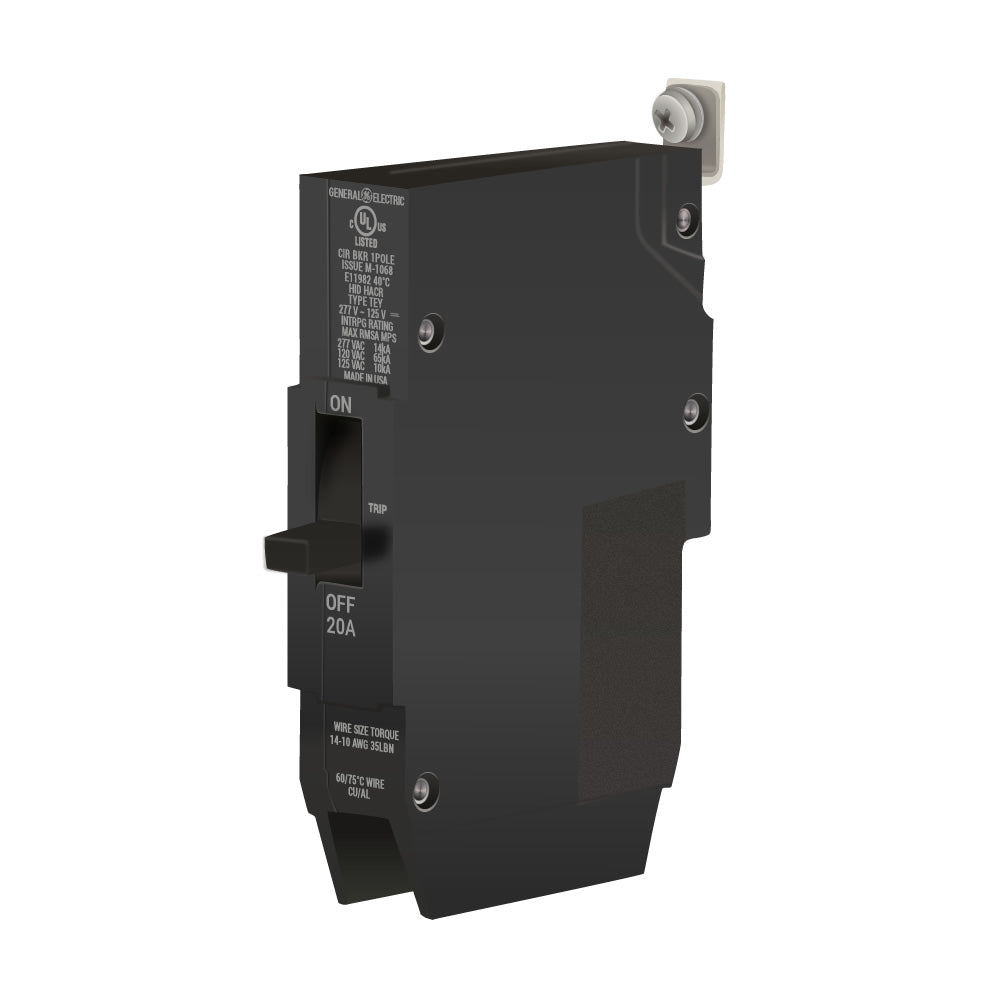

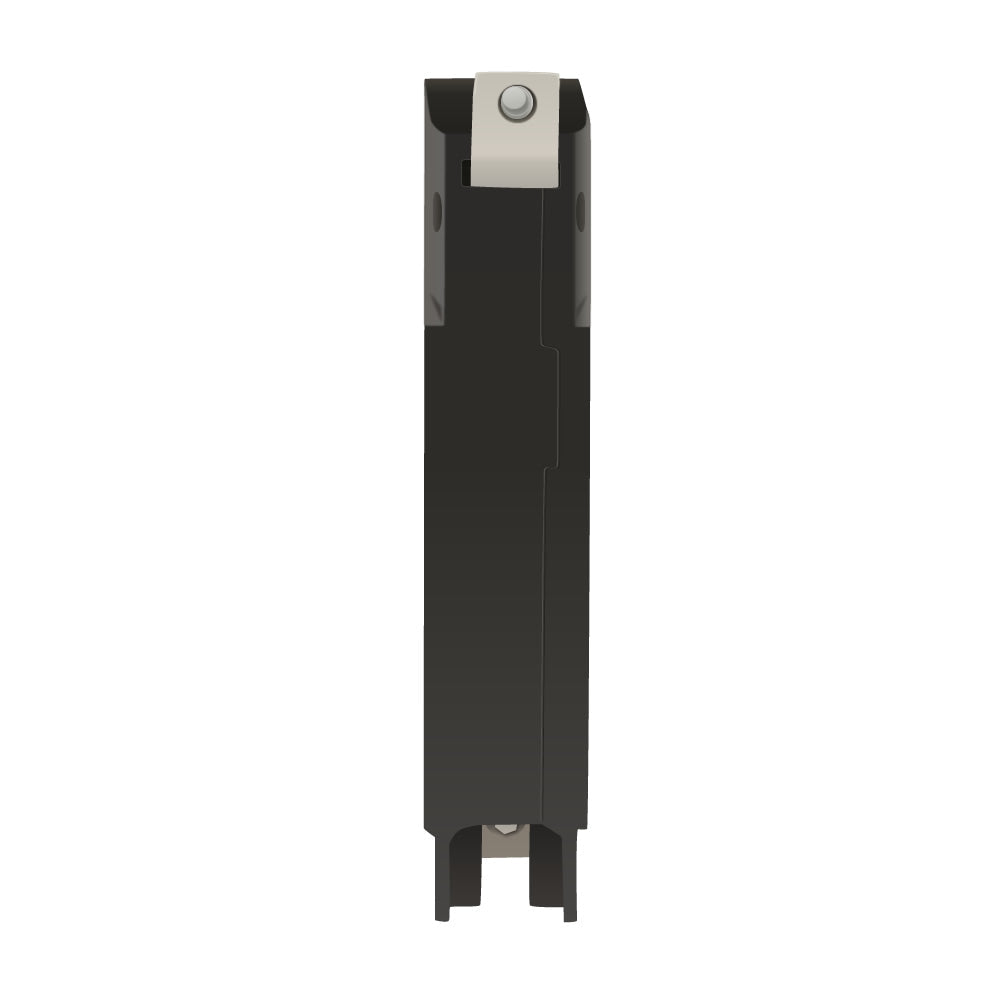

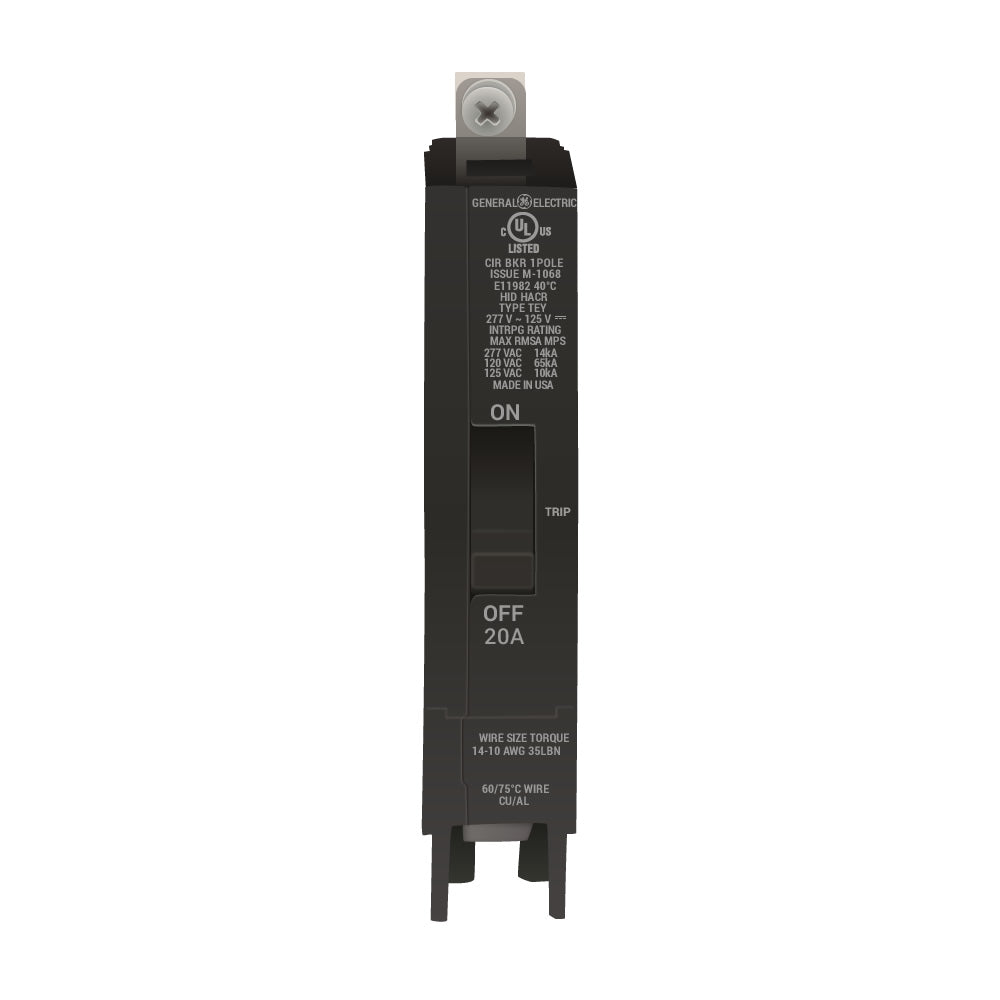

TEY120 - General Electric 20 Amp 1 Pole 277 Volt Bolt-On Circuit Breaker TEY Frame

Save $54.72
SKU: TEY120-New
Condition: New
Price:
$75.28 $130.00
Stock:
100+ in stock, ready to be shipped

💡 ABB / GE Branding Notice

On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions.

As a result of this transition, certain products may be labeled as either ABB or GE depending on the manufacturing date and production batch. In many cases, the product itself remains identical in form, fit, function, and specifications, with only the branding or label differing.

Customers may receive:

  • ABB-branded products
  • GE-branded products
  • Packaging reflecting either brand

Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.

If you have questions regarding labeling, compatibility, or product identification, please contact our support team prior to ordering.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

TEY120 - General Electric Bolt-on 277V 20A 1 pole circuit breaker 14kA@277V - Essential Electric Supply
TEY120 - General Electric 20 Amp 1 Pole 277 Volt Bolt-On Circuit Breaker TEY Frame - Essential Electric Supply
TEY120 - General Electric 20 Amp 1 Pole 277 Volt Bolt-On Circuit Breaker TEY Frame - Essential Electric Supply
TEY120 - General Electric 20 Amp 1 Pole 277 Volt Bolt-On Circuit Breaker TEY Frame - Essential Electric Supply
TEY120 - General Electric 20 Amp 1 Pole 277 Volt Bolt-On Circuit Breaker TEY Frame - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
TEY120 - General Electric Bolt-on 277V 20A 1 pole circuit breaker 14kA@277V - Essential Electric Supply
TEY120 - General Electric 20 Amp 1 Pole 277 Volt Bolt-On Circuit Breaker TEY Frame - Essential Electric Supply
TEY120 - General Electric 20 Amp 1 Pole 277 Volt Bolt-On Circuit Breaker TEY Frame - Essential Electric Supply
TEY120 - General Electric 20 Amp 1 Pole 277 Volt Bolt-On Circuit Breaker TEY Frame - Essential Electric Supply
TEY120 - General Electric 20 Amp 1 Pole 277 Volt Bolt-On Circuit Breaker TEY Frame - Essential Electric Supply

Description

TEY120


TEY120 is a General Electric 20 Amp, 1 Pole, 277 Volt bolt-on circuit breaker from the TEY series designed for lighting panel applications.This compact, 1-inch wide per pole molded case circuit breaker features a thermal magnetic trip unit with fixed long-time and instantaneous trip functions. It supports system voltages of 120 Vac, 120/240 Vac, 240 Vac, and 277 Vac with interrupting ratings of 65 kA at 120 Vac and 14 kA at 277 Vac. The breaker is suitable for reverse feed and carries HACR and HID markings. It mounts via bolt-on style and complies with UL and CSA certifications.
    Key Specifications
    • Amperage: 20 A
    • Poles: 1
    • Voltage: 120 Vac, 120/240 Vac, 240 Vac, 277 Vac
    • Interrupting Rating: 65 kA @ 120 Vac, 14 kA @ 277 Vac
    • Mounting Type: Bolt-On
    • Trip Unit: Thermal Magnetic (LI - Long-Time and Instantaneous)
    • Series/Frame: TEY
    • Suitable for Reverse Feed: Yes
    • Special Markings: HACR, HID
    • UL File #: E11592
    • CSA File #: LR57114
    • Wire Range: 14-8 kcmil Cu/Al
    At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

    Specifications

    • Part Number: TEY120
    • Manufacturer : General Electric
    • Brand : General Electric
    • Category : Circuit Breaker
    • Item Subcategory : Molded Case
    • Family : Q-Line
    • Type : TEY
    • Voltage : 277
    • Amperage : 20
    • Phase : 1
    • Poles : 1
    • AIC rating : 14kA@277V
    • Connection : Bolt-On
    • Functions : LI - Long-Time and Instantaneous
    • Terminal Connection : Lug
    • Frame Size : 125A/TEY
    • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 10 AWG
    • Breaker Type : Standard
    • Protection : Thermal Magnetic
    • Phase Connection : Any

    Product Data

    • UPC : 783164180916
    • GTIN : 00783164180916
    • Country of Origin : United States
    • Dimensions : 1 in x 5.25" x 5-1/4 in
    • Weight : 1 lb
    • Panel Type : GE AE Lighting Panels
    • Standards : CSA, UL
    • Certification : CSA, UL

Accesories

Part Manufacture Sub Category
TEYST12
