TED136110WL - General Electric 3 Pole 600V 110A Molded Case Circuit Breaker

Save $1,360.15
SKU: TED136110WL-New
Condition: New
Price:
$984.85 $2,345.00
Stock:
Low inventory, please call for stock check

💡 ABB / GE Branding Notice

On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions.

As a result of this transition, certain products may be labeled as either ABB or GE depending on the manufacturing date and production batch. In many cases, the product itself remains identical in form, fit, function, and specifications, with only the branding or label differing.

Customers may receive:

  • ABB-branded products
  • GE-branded products
  • Packaging reflecting either brand

Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.

If you have questions regarding labeling, compatibility, or product identification, please contact our support team prior to ordering.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

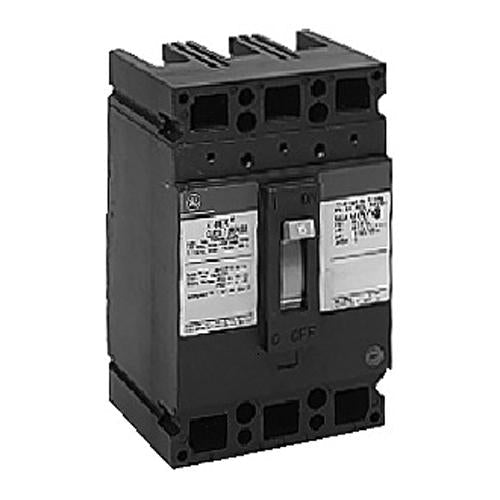

TED136110WL - General Electric Feed-Thru 110 Amp 3 Pole Circuit Breaker - Essential Electric Supply
TED136110WL - General Electric 3 Pole 600V 110A Molded Case Circuit Breaker - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
TED136110WL - General Electric Feed-Thru 110 Amp 3 Pole Circuit Breaker - Essential Electric Supply
TED136110WL - General Electric 3 Pole 600V 110A Molded Case Circuit Breaker - Essential Electric Supply

Description

TED136110WL


TED136110WL is a 3 pole, 600V, 110A molded case circuit breaker from General Electric, designed for reliable thermal magnetic protection in commercial and industrial applications. This TED series breaker features a fixed thermal-magnetic trip unit, line and load side lug terminals, and is suitable for use in panelboards and switchgear. It offers a 18kA interrupting rating at 480V and is rated for 110A continuous current at 40°C ambient. The breaker is HACR marked and suitable for reverse feed applications.
  • Part Number: TED136110WL
  • Manufacturer: General Electric
  • Series/Frame: TED
  • Poles: 3
  • Amperage: 110A
  • Voltage: 600VAC
  • Interrupting Rating: 18kA @ 480V
  • Mounting Type: Bolt-on
  • Connection Type: Feed-Thru
  • Trip Unit: Thermal Magnetic, Fixed
  • Certifications: UL Listed, CSA Certified, HACR
  • Application: Panelboard, Switchgear
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: TED136110WL
  • Manufacturer : General Electric
  • Brand : General Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : E150 Line
  • Type : TED
  • Voltage : 600
  • Amperage : 110
  • Phase : 3
  • Poles : 3
  • AIC rating : 18kA@480V
  • Connection : Bolt-on Panelboard
  • Functions : Long Time and Instantaneous Trip
  • Terminal Connection : Line/Load Lug
  • Frame Size : 150A/TED
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 4 AWG (Al), 6 AWG (Cu) Max. Wire Size 2 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : ABC

Product Data

  • UPC : 783164132908
  • GTIN : 00783164132908
  • Country of Origin : United States
  • Dimensions : 4-1/8 in x 6-5/16 in
  • Weight : 3
  • Panel Type : GE Panelboards
  • Standards : CSA Certified, UL Listed
  • Certification : CSA Certified, UL Listed
  • Wire Size : 2 to 1/0 AWG

Accesories

Part Manufacture Sub Category
TEDAS2AB1
TECBAL
TEDMOMA1
