TED136100WL - General Electric 100A 3 Pole 600V Molded Case Circuit Breaker

Save $890.55
SKU: TED136100WL-ReCert
Condition: Re-Certified
Price:
$239.45 $1,130.00
Stock:
Low inventory, please call for stock check
This ships in 1-2 business days

💡 ABB / GE Branding Notice

On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions.

As a result of this transition, certain products may be labeled as either ABB or GE depending on the manufacturing date and production batch. In many cases, the product itself remains identical in form, fit, function, and specifications, with only the branding or label differing.

Customers may receive:

  • ABB-branded products
  • GE-branded products
  • Packaging reflecting either brand

Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.

If you have questions regarding labeling, compatibility, or product identification, please contact our support team prior to ordering.

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

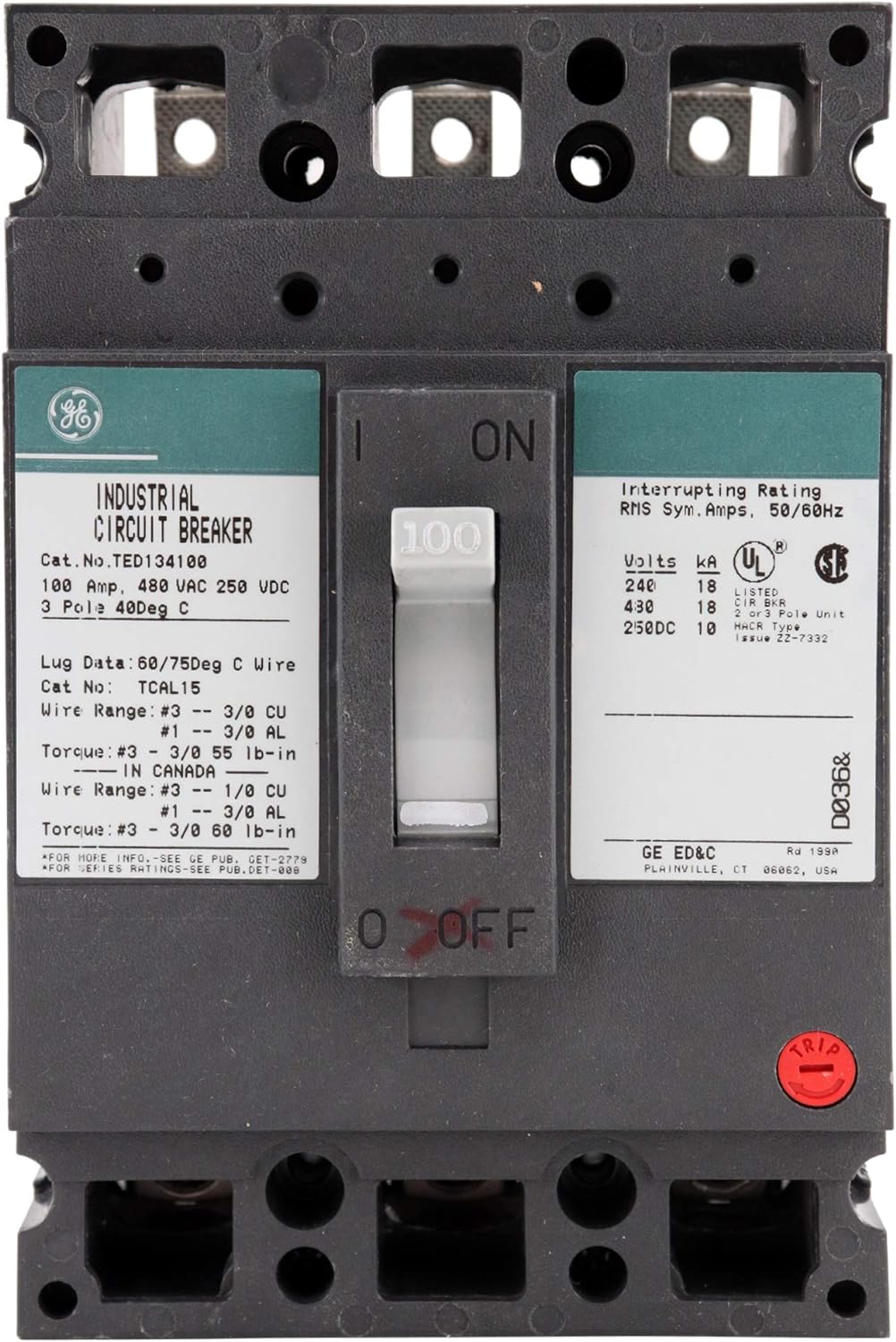

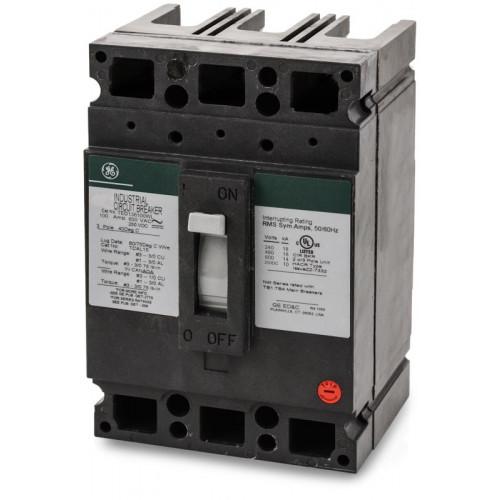

TED136100WL - General Electric Feed-Thru 100 Amp 3 Pole Circuit Breaker - Essential Electric Supply
TED136100WL - General Electric 100A 3 Pole 600V Molded Case Circuit Breaker - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
TED136100WL - General Electric Feed-Thru 100 Amp 3 Pole Circuit Breaker - Essential Electric Supply
TED136100WL - General Electric 100A 3 Pole 600V Molded Case Circuit Breaker - Essential Electric Supply

Description

TED136100WL


TED136100WL is a General Electric 100A 3 Pole 600V molded case circuit breaker designed for industrial applications requiring reliable protection and feed-thru mounting compatibility. This TED frame breaker features a thermal magnetic trip unit, non-interchangeable trip, and is part of the E150 line family. It is engineered for use in panelboards and industrial power distribution systems, offering robust protection for circuits up to 100 amps and 600 volts AC.
  • Part Number: TED136100WL
  • Manufacturer: General Electric
  • Amperage: 100A
  • Voltage: 600V AC
  • Poles: 3
  • Mounting Type: Feed-Thru (Bolt-On)
  • Interrupt Rating: 18kA (AIC)
  • Series/Frame: TED (E150 Line)
  • Frame Type: E
  • Frame Tier: Mid-Tier
  • Trip Unit: Thermal Magnetic, Non-Interchangeable
  • Application: Industrial
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: TED136100WL
  • Manufacturer : General Electric
  • Brand : General Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : E150 Line
  • Type : TED
  • Voltage : 600
  • Amperage : 100
  • Phase : 3
  • Poles : 3
  • AIC rating : 18kA@480V
  • Connection : Bolt-on Panelboard
  • Functions : LI - Long-Time and Instantaneous Trip
  • Terminal Connection : Line/Load Lug
  • Frame Size : 150A/TED
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 4 AWG (Al), 6 AWG (Cu) Max. Wire Size 2 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : ABC

Product Data

  • UPC : 783164063264
  • GTIN : 00783164063264
  • Country of Origin : United States
  • Dimensions : 4-1/8 in x 6-5/16 in
  • Weight : 3
  • Panel Type : GE Panelboards
  • Standards : CSA Certified, UL Listed
  • Certification : CSA Certified, UL Listed

Accesories

Part Manufacture Sub Category
TEDAS2AB1
TECBAL
TEDMOMA1
