TED136035WL - General Electric 35A 3 Pole 600VAC Thermal Magnetic Molded Case Circuit Breaker E150 Frame

Save $300.80
SKU: TED136035WL-New
Condition: New
Price:
$750.20 $1,051.00
Stock:
1 in stock
Limited availability — we'll confirm stock immediately after your order.

💡 ABB / GE Branding Notice

On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions.

As a result of this transition, certain products may be labeled as either ABB or GE depending on the manufacturing date and production batch. In many cases, the product itself remains identical in form, fit, function, and specifications, with only the branding or label differing.

Customers may receive:

  • ABB-branded products
  • GE-branded products
  • Packaging reflecting either brand

Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.

If you have questions regarding labeling, compatibility, or product identification, please contact our support team prior to ordering.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

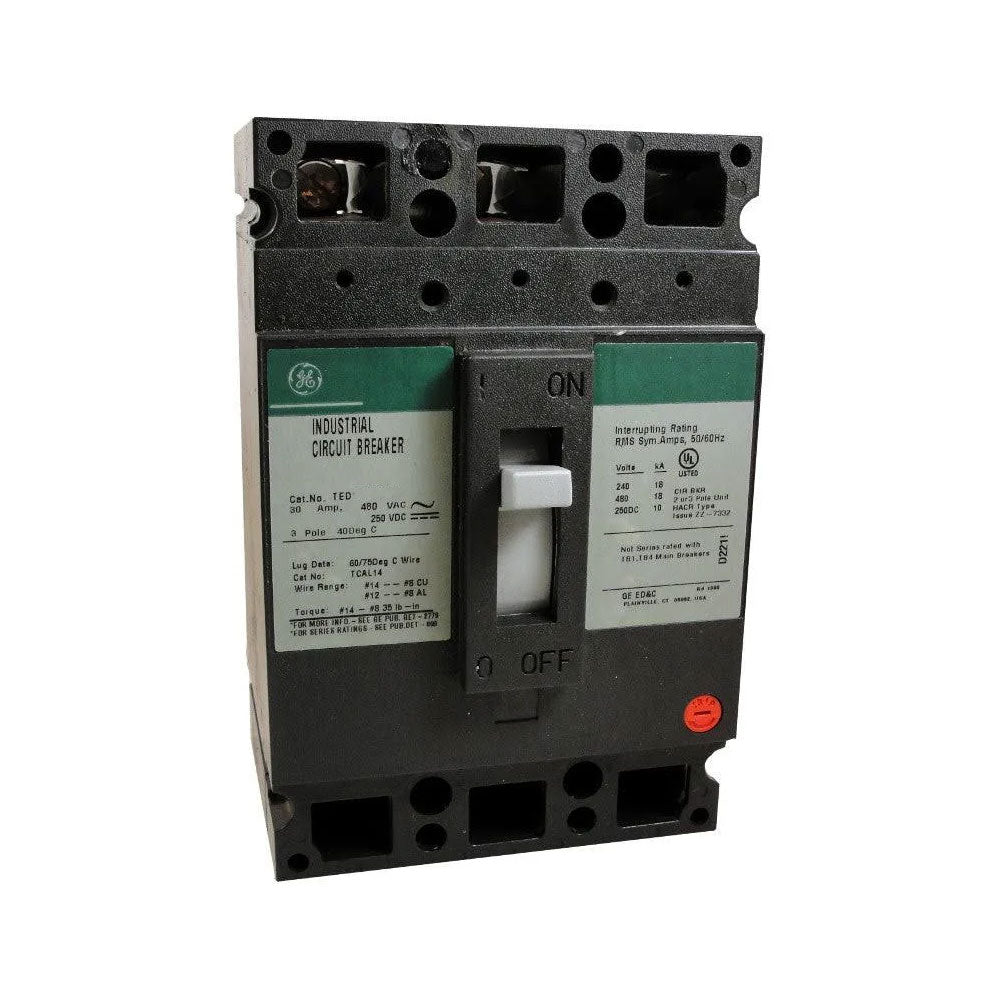

TED136035WL - General Electric Feed-Thru 35 Amp 3 Pole Circuit Breaker - Essential Electric Supply
TED136035WL - General Electric 35A 3 Pole 600VAC Thermal Magnetic Molded Case Circuit Breaker E150 Frame - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
TED136035WL - General Electric Feed-Thru 35 Amp 3 Pole Circuit Breaker - Essential Electric Supply
TED136035WL - General Electric 35A 3 Pole 600VAC Thermal Magnetic Molded Case Circuit Breaker E150 Frame - Essential Electric Supply

Description

TED136035WL


TED136035WL is a General Electric 3 pole, 35 amp thermal magnetic molded case circuit breaker designed for use in 600VAC systems with an E150 frame.TED136035WL features a fixed long-time and instantaneous trip, suitable for reverse feed applications, and offers an interrupt rating of up to 18kA at 480VAC. It includes line and load side lug terminals and complies with UL and CSA certifications.
  • Amperage: 35 A
  • Poles: 3
  • Voltage Rating: 600 VAC
  • Interrupt Rating: 18kA at 120/240/277/480 VAC, 14kA at 600 VAC
  • Frame Type: E150
  • Trip Style: Thermal Magnetic, Fixed Long Time and Instantaneous
  • Suitable for Reverse Feed: Yes
  • UL File Number: E11592
  • CSA File Number: LR57114
  • Trip Function: LI (Long Instantaneous)
  • Mounting Type: Lug Terminals (Line and Load)
  • Special Markings: HACR Rated
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: TED136035WL
  • Manufacturer : General Electric
  • Brand : General Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : E150 Line
  • Type : TED
  • Voltage : 600
  • Amperage : 35
  • Phase : 3
  • Poles : 3
  • AIC rating : 18kA@480V
  • Connection : Bolt-on Panelboard
  • Functions : LI - Long-Time and Instantaneous Trip
  • Terminal Connection : Line/Load Lug
  • Frame Size : 150A/TED
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 4 AWG (Al), 6 AWG (Cu) Max. Wire Size 2 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : ABC

Product Data

  • UPC : 783164063233
  • GTIN : 00783164063189
  • Country of Origin : United States
  • Dimensions : 4-1/8 in x 6-5/16 in
  • Weight : 3
  • Panel Type : GE Panelboards
  • Standards : CSA Certified, UL Listed
  • Certification : CSA Certified, UL Listed

Accesories

Part Manufacture Sub Category
TEDAS2AB1
TECBAL
TEDMOMA1
