TED136030WL - General Electric 30A 3-Pole 600VAC Molded Case Circuit Breaker E150 Frame

Save $401.78
SKU: TED136030WL-New
Condition: New
Price:
$649.22 $1,051.00
Stock:
2 in stock
Limited availability — we'll confirm stock immediately after your order.

💡 ABB / GE Branding Notice

On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions.

As a result of this transition, certain products may be labeled as either ABB or GE depending on the manufacturing date and production batch. In many cases, the product itself remains identical in form, fit, function, and specifications, with only the branding or label differing.

Customers may receive:

  • ABB-branded products
  • GE-branded products
  • Packaging reflecting either brand

Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.

If you have questions regarding labeling, compatibility, or product identification, please contact our support team prior to ordering.

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

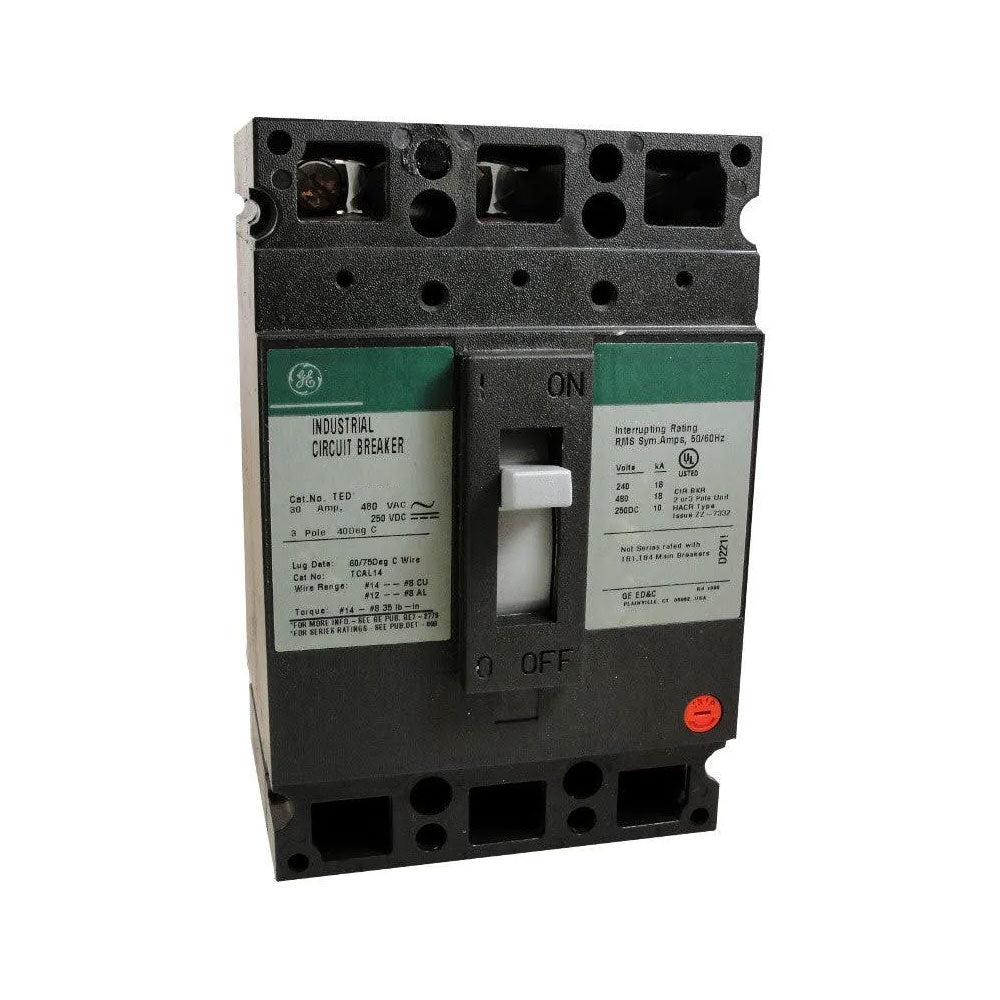

TED136030WL - General Electric Feed-Thru 30 Amp 3 Pole Circuit Breaker - Essential Electric Supply
TED136030WL - General Electric 30A 3-Pole 600VAC Molded Case Circuit Breaker E150 Frame - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
TED136030WL - General Electric Feed-Thru 30 Amp 3 Pole Circuit Breaker - Essential Electric Supply
TED136030WL - General Electric 30A 3-Pole 600VAC Molded Case Circuit Breaker E150 Frame - Essential Electric Supply

Description

TED136030WL


TED136030WL is a 30A, 3-pole, 600VAC molded case circuit breaker from General Electric's E150 line, designed for reliable protection in commercial and industrial applications. This TED series breaker features a thermal-magnetic trip unit, fixed long time and instantaneous settings, and is suitable for reverse feed applications. It is rated for 18 kAIC at 480VAC and 14 kAIC at 600VAC, with HACR marking for use in heating, air conditioning, and refrigeration circuits.
  • Amperage: 30 A
  • Poles: 3
  • System Voltage: 600 VAC
  • Frame Type: E150
  • Interrupting Rating: 18 kAIC @ 480VAC, 14 kAIC @ 600VAC
  • Mounting Type: Bolt-On Panelboard
  • Trip Unit: Thermal-Magnetic, Fixed
  • Series: TED
  • UL File #: E11592
  • CSA File #: LR57114
  • Special Markings: HACR
  • Terminal Connection: Line, Load Lug
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: TED136030WL
  • Manufacturer : General Electric
  • Brand : General Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : E150 Line
  • Type : TED
  • Voltage : 600
  • Amperage : 30
  • Phase : 3
  • Poles : 3
  • AIC rating : 18kA@480V
  • Connection : Bolt-on Panelboard
  • Functions : LI - Long-Time and Instantaneous Trip
  • Terminal Connection : Line/Load Lug
  • Frame Size : 150A/TED
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 4 AWG (Al), 6 AWG (Cu) Max. Wire Size 2 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : ABC

Product Data

  • UPC : 783164063172
  • GTIN : 00783164063172
  • Country of Origin : United States
  • Dimensions : 4-1/8 in x 6-5/16 in
  • Weight : 3
  • Panel Type : GE Panelboards
  • Standards : CSA Certified, UL Listed
  • Certification : CSA Certified, UL Listed

Accesories

Part Manufacture Sub Category
TEDAS2AB1
TECBAL
TEDMOMA1
