Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
TED126070

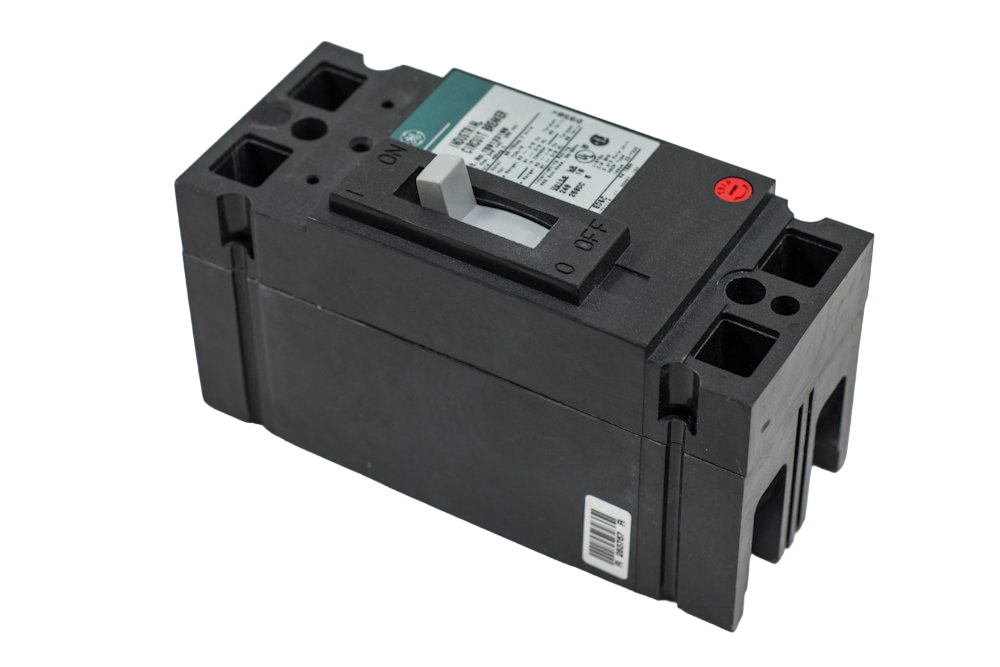

TED126070 is a General Electric 2 Pole molded case circuit breaker rated for 70 Amps and 600VAC, designed for reliable protection in commercial and industrial applications. This TED series breaker features a bolt-on mounting style and thermal magnetic protection with long-time and instantaneous trip functions. It is suitable for use in panelboards and switchgear requiring a compact, high-performance solution.
- Part Number: TED126070
- Manufacturer: General Electric
- Series: TED
- Amperage: 70A
- Number of Poles: 2
- Voltage Rating: 600VAC
- Mounting Type: Bolt-On
- Interrupting Rating: 14kAIC at 480V
- Protection Type: Thermal Magnetic
- Frame Type: TED
- Functions: LI - Long-Time and Instantaneous Trip
- Certifications: NEMA, UL Listed
Specifications
- Part Number: TED126070
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : E150 Line
- Type : TED
- Voltage : 600
- Amperage : 70
- Phase : 1
- Poles : 2
- AIC rating : 18kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- Weight : 2
