TED124100WL - General Electric 100A 2-Pole 480V Thermal Magnetic Circuit Breaker TED Series

Save $342.13
SKU: TED124100WL-New
Condition: New
Price:
$539.87 $882.00
Stock:
Low inventory, please call for stock check

💡 ABB / GE Branding Notice

On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions.

As a result of this transition, certain products may be labeled as either ABB or GE depending on the manufacturing date and production batch. In many cases, the product itself remains identical in form, fit, function, and specifications, with only the branding or label differing.

Customers may receive:

  • ABB-branded products
  • GE-branded products
  • Packaging reflecting either brand

Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.

If you have questions regarding labeling, compatibility, or product identification, please contact our support team prior to ordering.

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

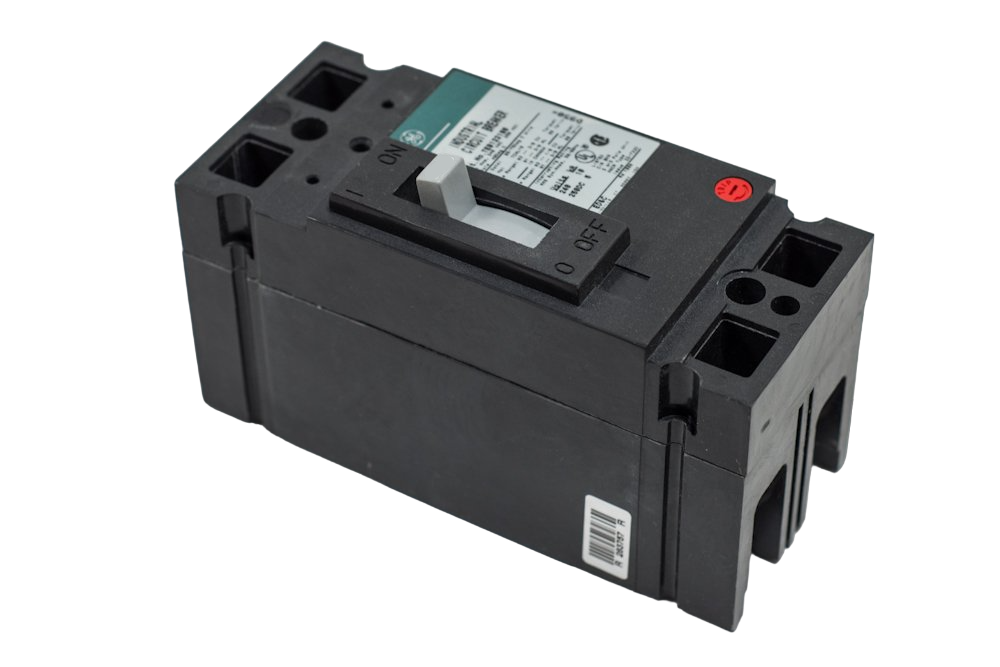

TED124100WL - General Electric Feed-Thru 100 Amp 2 Pole Circuit Breaker - Essential Electric Supply

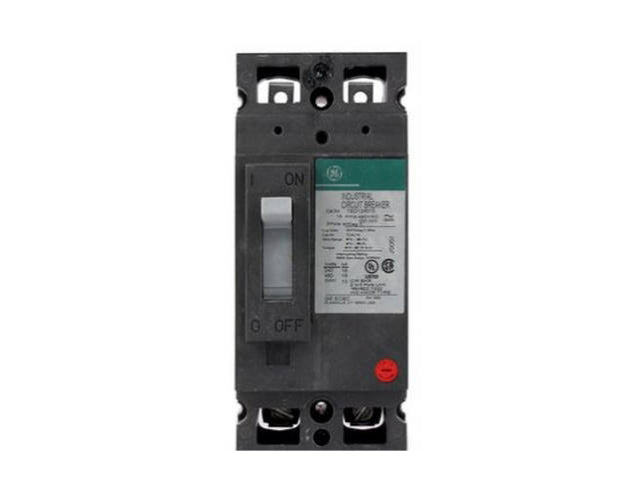

TED124100WL - General Electric 100A 2-Pole 480V Thermal Magnetic Circuit Breaker TED Series - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
TED124100WL - General Electric Feed-Thru 100 Amp 2 Pole Circuit Breaker - Essential Electric Supply
TED124100WL - General Electric 100A 2-Pole 480V Thermal Magnetic Circuit Breaker TED Series - Essential Electric Supply

Description

TED124100WL


TED124100WL is a General Electric 2-pole thermal magnetic circuit breaker rated for 100 amps and 480 volts AC, designed for reliable electrical protection.This molded case circuit breaker features a TED series E150 frame with a fixed instantaneous trip, suitable for use in GE panelboards. It supports bolt-on panelboard mounting and includes line and load lug terminals compatible with aluminum and copper wiring. The breaker has an interrupt rating of 18 kA at 240/480 VAC and 10 kA at 250 VDC, ensuring high fault current interruption capability.
  • Amperage: 100A
  • Voltage Rating: 480 VAC, 250 VDC
  • Number of Poles: 2
  • Frame Size: E150 (TED Series)
  • Trip Type: Thermal Magnetic, Fixed Instantaneous Trip
  • Interrupt Rating: 18 kA at 240/480 VAC, 10 kA at 250 VDC
  • Mounting Type: Bolt On Panelboard
  • Terminal Connection: Line and Load Lug (Aluminum/Copper)
  • Dimensions: Approx. 6.31" H x 2.75" W x 4.09" D
  • Certifications: UL Listed
  • Country of Origin: USA
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: TED124100WL
  • Manufacturer : General Electric
  • Brand : General Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : E150 Line
  • Type : TED
  • Voltage : 480
  • Amperage : 100
  • Phase : 1
  • Poles : 2
  • AIC rating : 18kA@480V
  • Connection : Feed-Thru
  • Functions : LI - Long-Time and Instantaneous Trip
  • Terminal Connection : Line/Load Lug
  • Frame Size : 150A/TED
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 1/0 AWG (Al), 3 AWG (Cu)
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : Not Applicable

Product Data

  • UPC : 783164068214
  • GTIN : 00783164068214
  • Country of Origin : United States
  • Dimensions : 2-3/4 in x 6-5/16 in
  • Weight : 2
  • Panel Type : GE Panelboards
  • Standards : CSA Certified, UL Listed
  • Certification : CSA Certified, UL Listed

Accesories

Part Manufacture Sub Category
TEDAS2AB1
TECBAL
TEDMOMA1
