TED124090WL - General Electric 2 Pole 90A 480V Molded Case Circuit Breaker, TED Frame, 18kA AIC, Feed-Thru Mount

SKU: TED124090WL-New
Condition: New
Price:
$1,438.65
Stock:
3 in stock
Limited availability — we'll confirm stock immediately after your order.

💡 ABB / GE Branding Notice

On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions.

As a result of this transition, certain products may be labeled as either ABB or GE depending on the manufacturing date and production batch. In many cases, the product itself remains identical in form, fit, function, and specifications, with only the branding or label differing.

Customers may receive:

  • ABB-branded products
  • GE-branded products
  • Packaging reflecting either brand

Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.

If you have questions regarding labeling, compatibility, or product identification, please contact our support team prior to ordering.

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

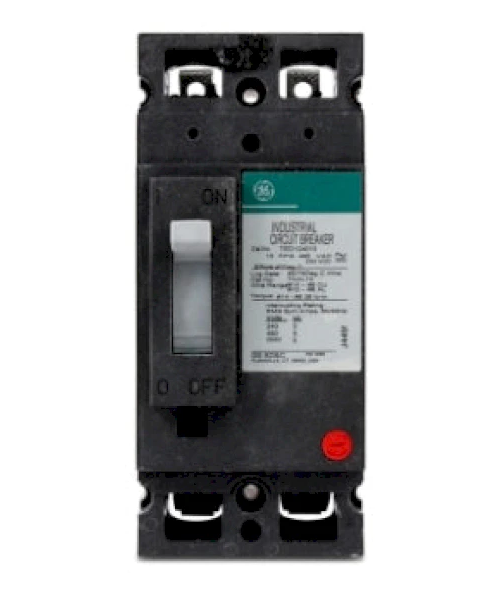

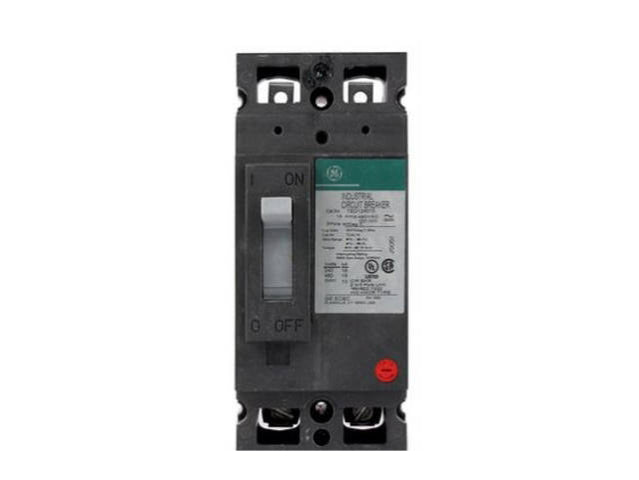

TED124090WL - General Electric Bolt-on Panelboard 480V 90A 2 pole circuit breaker 18kA@480V - Essential Electric Supply
TED124090WL - General Electric Bolt-on Panelboard 480V 90A 2 pole circuit breaker 18kA@480V - Essential Electric Supply
TED124090WL - General Electric 2 Pole 90A 480V Molded Case Circuit Breaker, TED Frame, 18kA AIC, Feed-Thru Mount - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
TED124090WL - General Electric Bolt-on Panelboard 480V 90A 2 pole circuit breaker 18kA@480V - Essential Electric Supply
TED124090WL - General Electric Bolt-on Panelboard 480V 90A 2 pole circuit breaker 18kA@480V - Essential Electric Supply
TED124090WL - General Electric 2 Pole 90A 480V Molded Case Circuit Breaker, TED Frame, 18kA AIC, Feed-Thru Mount - Essential Electric Supply

Description

TED124090WL


TED124090WL is a 2 pole, 90 amp, 480V molded case circuit breaker from General Electric, designed for reliable branch circuit protection in industrial and commercial applications.This TED frame breaker features thermal magnetic trip technology, feed-thru mounting, and a robust interrupting rating for dependable performance. It is part of the E-150 line family and is UL listed for safety and compliance.
  • Part Number: TED124090WL
  • Manufacturer: General Electric
  • Amperage: 90A
  • Voltage: 480V AC, 250V DC
  • Poles: 2
  • Mounting Type: Feed-Thru
  • Interrupting Rating: 18kA @ 480V AC
  • Series/Frame: TED (E-150 Line)
  • Protection Type: Thermal Magnetic
  • Certifications: UL Listed
  • Terminal Type: Aluminum/Copper
  • Phase: 1
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: TED124090WL
  • Manufacturer : General Electric
  • Brand : General Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : E150 Line
  • Type : TED
  • Voltage : 480
  • Amperage : 90
  • Phase : 1
  • Poles : 2
  • AIC rating : 18kA@480V
  • Connection : Feed-Thru
  • Functions : LI - Long-Time and Instantaneous Trip
  • Terminal Connection : Line/Load Lug
  • Frame Size : 150A/TED
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 1/0 AWG (Al), 3 AWG (Cu)
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : Not Applicable

Product Data

  • UPC : 783164068078
  • GTIN : 00783164068191
  • Country of Origin : United States
  • Dimensions : 2-3/4 in x 6-5/16 in
  • Weight : 2
  • Panel Type : GE Panelboards
  • Standards : CSA Certified, UL Listed
  • Certification : CSA Certified, UL Listed

Accesories

Part Manufacture Sub Category
TEDAS2AB1
TECBAL
TEDMOMA1
