TED124090 - General Electric 90 Amp 480 Volt 2 Pole Thermal Magnetic Molded Case Circuit Breaker TED Frame

Save $455.15
SKU: TED124090-New
Condition: New
Price:
$399.85 $855.00
Stock:
10 In stock, ready to be shipped

💡 ABB / GE Branding Notice

On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions.

As a result of this transition, certain products may be labeled as either ABB or GE depending on the manufacturing date and production batch. In many cases, the product itself remains identical in form, fit, function, and specifications, with only the branding or label differing.

Customers may receive:

  • ABB-branded products
  • GE-branded products
  • Packaging reflecting either brand

Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.

If you have questions regarding labeling, compatibility, or product identification, please contact our support team prior to ordering.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

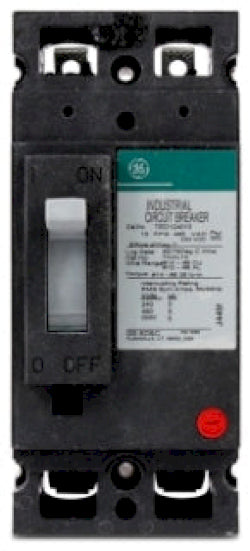

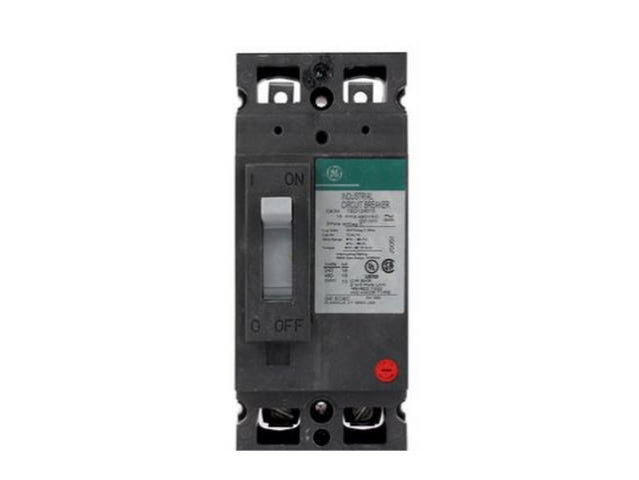

TED124090 - General Electric Bolt-On 90 Amp 2 Pole Circuit Breaker - Essential Electric Supply
TED124090 - General Electric 90 Amp 480 Volt 2 Pole Thermal Magnetic Molded Case Circuit Breaker TED Frame - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
TED124090 - General Electric Bolt-On 90 Amp 2 Pole Circuit Breaker - Essential Electric Supply
TED124090 - General Electric 90 Amp 480 Volt 2 Pole Thermal Magnetic Molded Case Circuit Breaker TED Frame - Essential Electric Supply

Description

TED124090


TED124090 is a General Electric 2 Pole thermal magnetic molded case circuit breaker rated for 90 Amps and 480 Volts AC.

This circuit breaker features a TED frame type with a bolt-on mounting design and provides an interrupt rating of 18kA at 480V. It supports 1 phase operation with line and load side lug terminals and includes long-time and instantaneous trip functions for reliable circuit protection. The breaker is suitable for feed-thru applications and is UL listed for safety compliance.

    Key Specifications
    • Amperage: 90 Amps
    • Voltage: 480 Volts AC
    • Poles: 2
    • Frame Type: TED
    • Interrupt Rating: 18kA @ 480V
    • Mounting Type: Bolt-On
    • Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Functions
    • Phase: 1
    • Connection: Feed-Thru
    • Terminals: Line & Load Side Lug
    • Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

  • Part Number: TED124090
  • Manufacturer : General Electric
  • Brand : General Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : E150 Line
  • Type : TED
  • Voltage : 480
  • Amperage : 90
  • Phase : 1
  • Poles : 2
  • AIC rating : 18kA@480V
  • Connection : Bolt-On
  • Functions : LI - Long-Time and Instantaneous
  • Protection : Thermal Magnetic

Product Data

  • UPC : 783164068184
  • GTIN : 00783164068184
  • Weight : 2
  • Certification : Ul Listed

Accesories

Part Manufacture Sub Category
TEDAS2AB1
TECBAL
TEDMOMA1
