TED124080WL - General Electric 80A 2-Pole 480VAC Molded Case Circuit Breaker, TED Frame, 18kA Interrupt Rating, Thermal Magnetic Trip, Bolt-On Mounting, UL Listed

SKU: TED124080WL-New
Condition: New
Price:
$1,397.39
Stock:
2 in stock
Limited availability — we'll confirm stock immediately after your order.

💡 ABB / GE Branding Notice

On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions.

As a result of this transition, certain products may be labeled as either ABB or GE depending on the manufacturing date and production batch. In many cases, the product itself remains identical in form, fit, function, and specifications, with only the branding or label differing.

Customers may receive:

  • ABB-branded products
  • GE-branded products
  • Packaging reflecting either brand

Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.

If you have questions regarding labeling, compatibility, or product identification, please contact our support team prior to ordering.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

TED124080WL - General Electric Feed-Thru 80 Amp 2 Pole Circuit Breaker - Essential Electric Supply
TED124080WL - General Electric 80A 2-Pole 480VAC Molded Case Circuit Breaker, TED Frame, 18kA Interrupt Rating, Thermal Magnetic Trip, Bolt-On Mounting, UL Listed - Essential Electric Supply

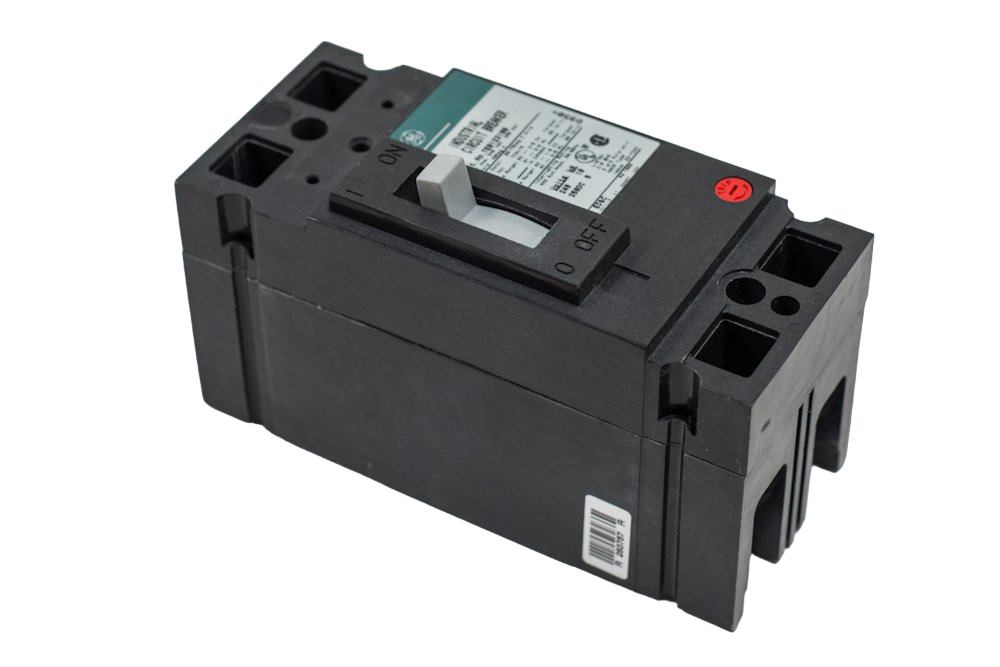

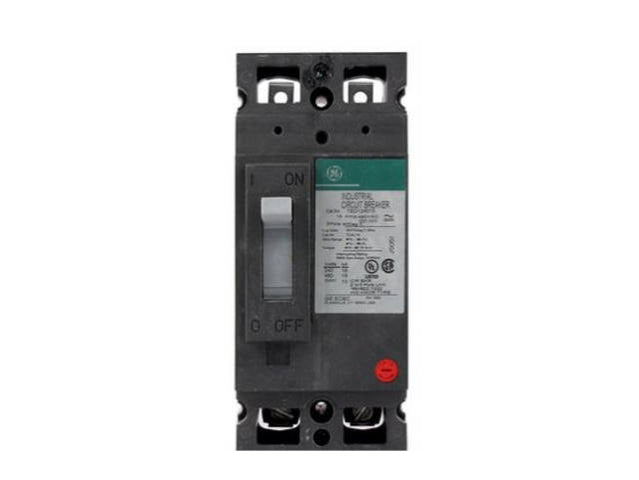

Roll over image to zoom in Click on image to zoom Images are for reference only
TED124080WL - General Electric Feed-Thru 80 Amp 2 Pole Circuit Breaker - Essential Electric Supply
TED124080WL - General Electric 80A 2-Pole 480VAC Molded Case Circuit Breaker, TED Frame, 18kA Interrupt Rating, Thermal Magnetic Trip, Bolt-On Mounting, UL Listed - Essential Electric Supply

Description

TED124080WL


TED124080WL is a General Electric molded case circuit breaker designed for reliable branch circuit protection in commercial and industrial applications.

This 2-pole, 80 amp breaker is rated for 240/480V AC and 250V DC systems, featuring a TED frame, thermal magnetic fixed trip, and bolt-on panelboard mounting. It offers an interrupting rating of 18kA at 480V AC and is UL listed for safety and compliance. The breaker includes line and load lug terminals, accepts 2 AWG to 6 AWG wire, and is part of the E150 (TED) series.

    Key Specifications
  • Amperage: 80A
  • Voltage: 240/480V AC, 250V DC
  • Poles: 2
  • Mounting Type: Bolt-on panelboard
  • Interrupt Rating: 18kA at 120/240/277/480V AC
  • Series/Frame: TED (E150 Line)
  • Trip Unit: Thermal magnetic, fixed
  • Certifications: UL listed
  • Terminal: Line/load lug (aluminum/copper)
  • Wire Size: 2 AWG (max), 4/6 AWG (min)
  • Dimensions: 2 3/4" W x 4.09" D x 6.31" H
  • Weight: 1.323 kg

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: TED124080WL
  • Manufacturer : General Electric
  • Brand : General Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : E150 Line
  • Type : TED
  • Voltage : 480
  • Amperage : 80
  • Phase : 1
  • Poles : 2
  • AIC rating : 18kA@480V
  • Connection : Feed-Thru
  • Functions : LI - Long-Time and Instantaneous Trip
  • Terminal Connection : Line/Load Lug
  • Frame Size : 150A/TED
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 1/0 AWG (Al), 3 AWG (Cu)
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : Not Applicable

Product Data

  • UPC : 783164068177
  • GTIN : 00783164068177
  • Country of Origin : United States
  • Dimensions : 2-3/4 in x 6-5/16 in
  • Weight : 2
  • Panel Type : GE Panelboards
  • Standards : CSA Certified, UL Listed
  • Certification : CSA Certified, UL Listed

Accesories

Part Manufacture Sub Category
TEDAS2AB1
TECBAL
TEDMOMA1
