2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
TED124080

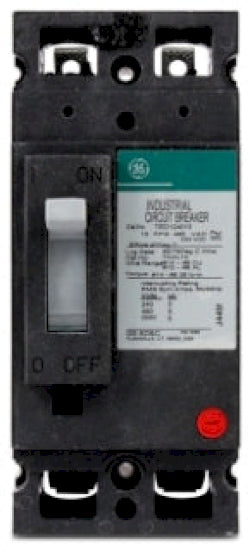

TED124080 is a General Electric molded case circuit breaker designed for reliable overcurrent protection in electrical systems.This 2 pole, 80 amp breaker operates at 480 volts AC and features a bolt-on mounting type. It belongs to the E150 frame family and TED series, with a thermal magnetic trip unit providing standard protection. The breaker has an interrupt rating of 18kA at 480V and is suitable for single-phase applications.
- Amperage: 80 A
- Voltage: 480 V AC
- Poles: 2
- Phase: 1
- Mounting Type: Bolt-On
- Interrupt Rating: 18kA @ 480V
- Series/Frame: TED Series, E150 Frame
- Trip Unit: Thermal Magnetic (LI)
- Certifications: NETA tested available, industry standard compliance
Specifications
- Part Number: TED124080
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : E150 Line
- Type : TED
- Voltage : 480
- Amperage : 80
- Phase : 1
- Poles : 2
- AIC rating : 18kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783164068177
- GTIN : 00783164068160
- Weight : 2
- Certification : Ul Listed
