TED124070WL - General Electric 70A 480V 2-Pole Molded Case Circuit Breaker E150 Frame

Save $796.90
SKU: TED124070WL-New
Condition: New
Price:
$204.10 $1,001.00
Stock:
Low inventory, please call for stock check

💡 ABB / GE Branding Notice

On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions.

As a result of this transition, certain products may be labeled as either ABB or GE depending on the manufacturing date and production batch. In many cases, the product itself remains identical in form, fit, function, and specifications, with only the branding or label differing.

Customers may receive:

  • ABB-branded products
  • GE-branded products
  • Packaging reflecting either brand

Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.

If you have questions regarding labeling, compatibility, or product identification, please contact our support team prior to ordering.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

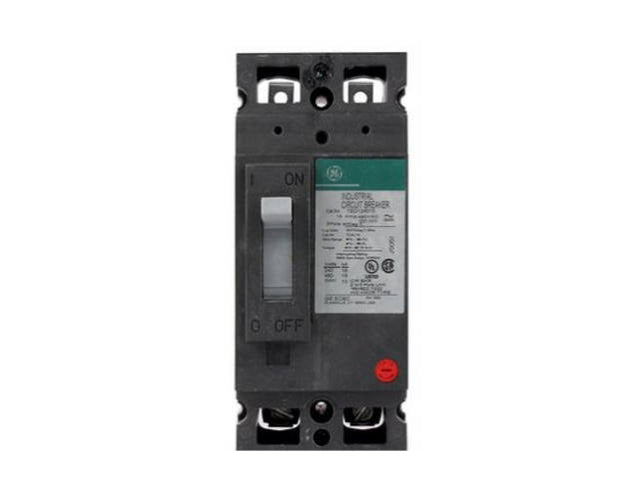

TED124070WL - General Electric Feed-Thru 70 Amp 2 Pole Circuit Breaker - Essential Electric Supply

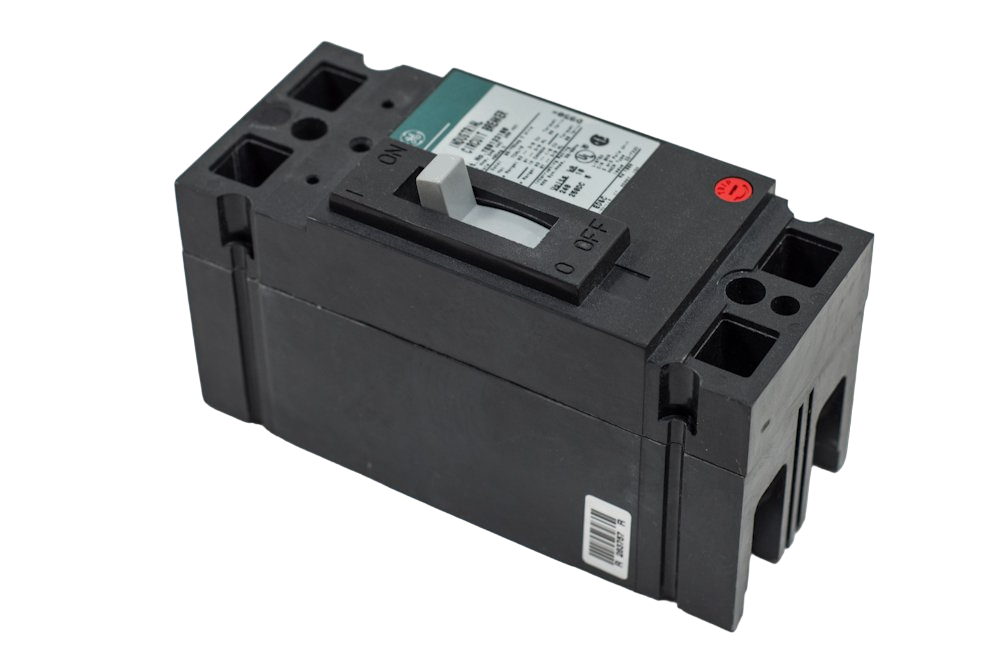

TED124070WL - General Electric 70A 480V 2-Pole Molded Case Circuit Breaker E150 Frame - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
TED124070WL - General Electric Feed-Thru 70 Amp 2 Pole Circuit Breaker - Essential Electric Supply
TED124070WL - General Electric 70A 480V 2-Pole Molded Case Circuit Breaker E150 Frame - Essential Electric Supply

Description

TED124070WL


TED124070WL is a 2-pole, 70 amp, 480 volt molded case circuit breaker from General Electric designed for reliable circuit protection.This GE circuit breaker features a thermal magnetic fixed trip unit within the E150 frame series. It supports 120/240/277/480 VAC and 125/250 VDC systems with an interrupting rating of 18kA at 480 VAC. The breaker includes line and load aluminum/copper lugs and is UL listed for safety and performance.
    Key Specifications
    • Amperage: 70 A
    • Voltage: 480 VAC
    • Poles: 2
    • Frame Type: E150 (TED Frame)
    • Trip Unit: Fixed Thermal Magnetic
    • Interrupt Rating: 18 kA at 480 VAC
    • Mounting Type: Bolt-on
    • Connection: Line/Load Lug, Aluminum/Copper
    • Phase: Single
    • Certifications: UL Listed
    At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

    Specifications

    • Part Number: TED124070WL
    • Manufacturer : General Electric
    • Brand : General Electric
    • Category : Circuit Breaker
    • Item Subcategory : Molded Case
    • Family : E150 Line
    • Type : TED
    • Voltage : 480
    • Amperage : 70
    • Phase : 1
    • Poles : 2
    • AIC rating : 18kA@480V
    • Connection : Bolt-on Panelboard
    • Functions : LI - Long-Time and Instantaneous Trip
    • Terminal Connection : Line/Load Lug
    • Frame Size : 150A/TED
    • Temp Rating : -13–158 °F (-25–70 °C)
    • MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 1/0 AWG (Al), 3 AWG (Cu)
    • Breaker Type : Standard
    • Protection : Thermal Magnetic
    • Phase Connection : Not Applicable

    Product Data

    • UPC : 783164068153
    • GTIN : 00783164068153
    • Country of Origin : United States
    • Dimensions : 2-3/4 in x 6-5/16 in
    • Weight : 2
    • Panel Type : GE Panelboards
    • Standards : CSA Certified, UL Listed
    • Certification : CSA Certified, UL Listed

Accesories

Part Manufacture Sub Category
TEDAS2AB1
TECBAL
TEDMOMA1
