Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
TED124070

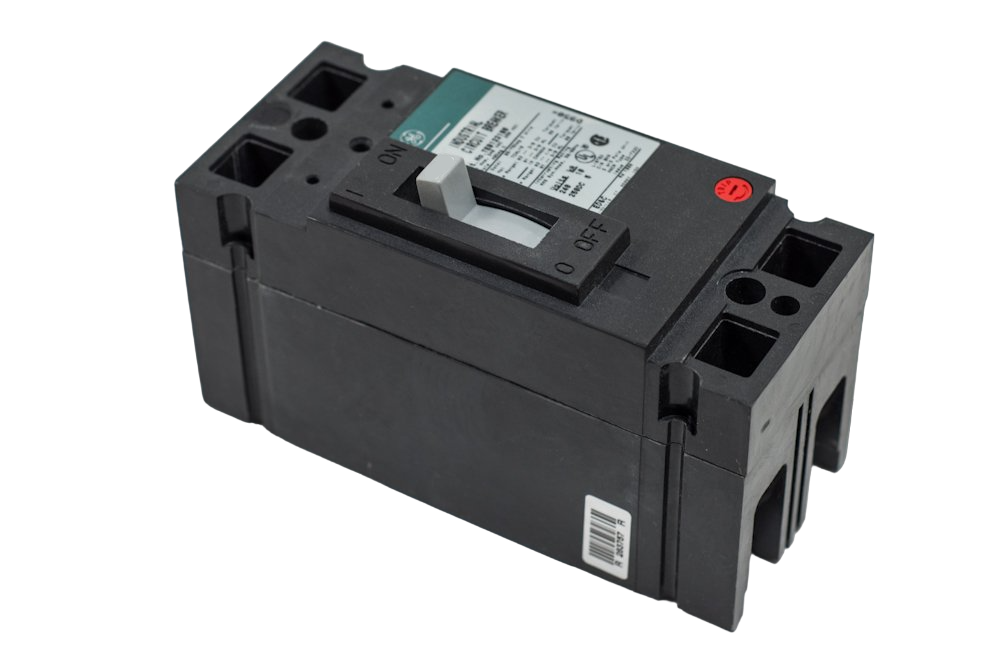

TED124070 is a General Electric 2 pole thermal magnetic molded case circuit breaker rated for 70 amps and 480 volts AC.This circuit breaker provides reliable overcurrent and short circuit protection with a breaking capacity of 18kA. It features bolt-on mounting, a Type TED frame, and is designed for industrial and commercial electrical distribution systems. The breaker is UL and CSA certified and suitable for use in 480 VAC and 250 VDC applications.
- Amperage: 70A
- Voltage: 480 VAC, 250 VDC
- Poles: 2
- Interrupt Rating: 18kA
- Mounting Type: Bolt-on
- Type/Series: TED
- Trip Unit: Thermal Magnetic
- Certifications: UL, CSA
- Connection Type: Bolt-on
- Frame: Core E Mid Tier
Specifications
- Part Number: TED124070
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : E150 Line
- Type : TED
- Voltage : 480
- Amperage : 70
- Phase : 1
- Poles : 2
- AIC rating : 18kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 783164068146
- GTIN : 00783164068146
- Weight : 2
- Certification : Ul Listed
