TED124050WL - General Electric 50 Amp 2-Pole 480 VAC Molded Case Circuit Breaker

Save $464.11
SKU: TED124050WL-ReCert
Condition: Re-Certified
Price:
$322.89 $787.00
Stock:
Low inventory, please call for stock check
This ships in 1-2 business days

💡 ABB / GE Branding Notice

On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions.

As a result of this transition, certain products may be labeled as either ABB or GE depending on the manufacturing date and production batch. In many cases, the product itself remains identical in form, fit, function, and specifications, with only the branding or label differing.

Customers may receive:

  • ABB-branded products
  • GE-branded products
  • Packaging reflecting either brand

Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.

If you have questions regarding labeling, compatibility, or product identification, please contact our support team prior to ordering.

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

TED124050WL - General Electric Feed-Thru 50 Amp 2 Pole Circuit Breaker - Essential Electric Supply
TED124050WL - General Electric 50 Amp 2-Pole 480 VAC Molded Case Circuit Breaker - Essential Electric Supply

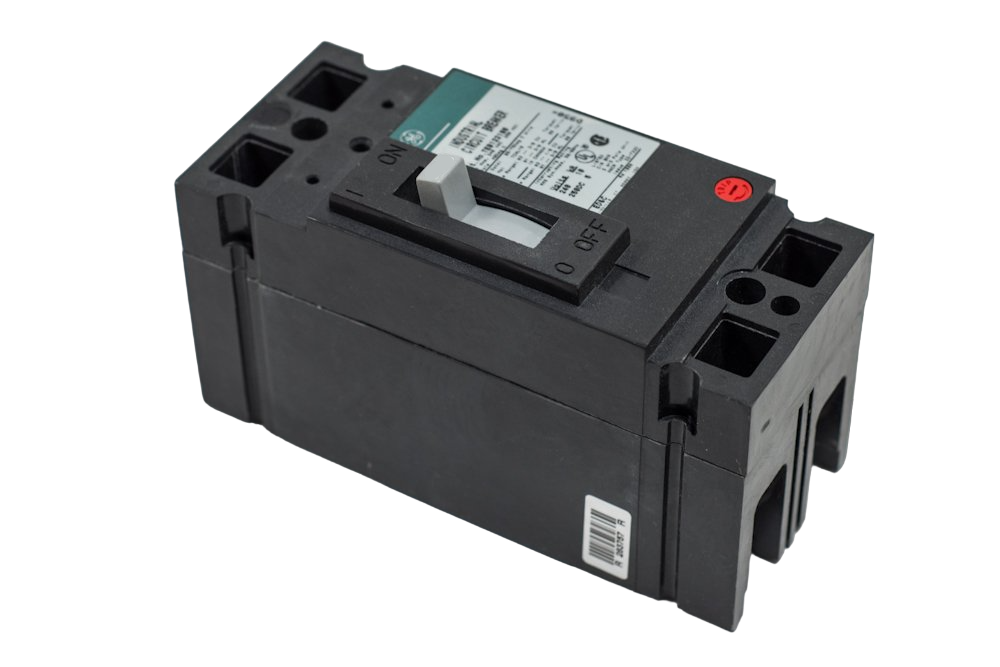

Roll over image to zoom in Click on image to zoom Images are for reference only
TED124050WL - General Electric Feed-Thru 50 Amp 2 Pole Circuit Breaker - Essential Electric Supply
TED124050WL - General Electric 50 Amp 2-Pole 480 VAC Molded Case Circuit Breaker - Essential Electric Supply

Description

TED124050WL


TED124050WL is a General Electric 2-pole molded case circuit breaker rated for 50 amps and 480 VAC operation.This circuit breaker is part of the GE E150 line, designed for single-phase applications with a maximum AC voltage rating of 480 volts and DC voltage rating of 250 volts. It features a standard interrupting capacity of 18kA at 480 VAC and includes line and load side lug terminals. The trip unit is non-interchangeable, and the breaker complies with UL standard E11592.
    Key Specifications
    • Amperage: 50 Amps
    • Voltage Rating: 480 VAC / 250 VDC
    • Number of Poles: 2
    • Mounting Type: Molded Case
    • Interrupt Rating: 18kA at 480 VAC
    • Series/Frame: E150 Line, Type TED
    • Trip Unit: Non-Interchangeable
    • Certifications: UL E11592
    At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

    Specifications

    • Part Number: TED124050WL
    • Manufacturer : General Electric
    • Brand : General Electric
    • Category : Circuit Breaker
    • Item Subcategory : Molded Case
    • Family : E150 Line
    • Type : TED
    • Voltage : 480
    • Amperage : 50
    • Phase : 1
    • Poles : 2
    • AIC rating : 18kA@480V
    • Connection : Bolt-on Panelboard
    • Functions : LI - Long-Time and Instantaneous Trip
    • Terminal Connection : Line/Load Lug
    • Frame Size : 150A/TED
    • Temp Rating : -13–158 °F (-25–70 °C)
    • MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 1/0 AWG (Al), 3 AWG (Cu)
    • Breaker Type : Standard
    • Protection : Thermal Magnetic
    • Phase Connection : Not Applicable

    Product Data

    • UPC : 783164068115
    • GTIN : 00783164068115
    • Country of Origin : United States
    • Dimensions : 2-3/4 in x 6-5/16 in
    • Weight : 2
    • Panel Type : GE Panelboards
    • Standards : CSA Certified, UL Listed
    • Certification : CSA Certified, UL Listed

Accesories

Part Manufacture Sub Category
TEDAS2AB1
TECBAL
TEDMOMA1
