TED124045WL - General Electric 45A 2 Pole 480V AC Circuit Breaker TED Series 18kA Interrupt Rating

Save $407.15
SKU: TED124045WL-New
Condition: New
Price:
$379.85 $787.00
Stock:
Low inventory, please call for stock check

💡 ABB / GE Branding Notice

On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions.

As a result of this transition, certain products may be labeled as either ABB or GE depending on the manufacturing date and production batch. In many cases, the product itself remains identical in form, fit, function, and specifications, with only the branding or label differing.

Customers may receive:

  • ABB-branded products
  • GE-branded products
  • Packaging reflecting either brand

Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.

If you have questions regarding labeling, compatibility, or product identification, please contact our support team prior to ordering.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

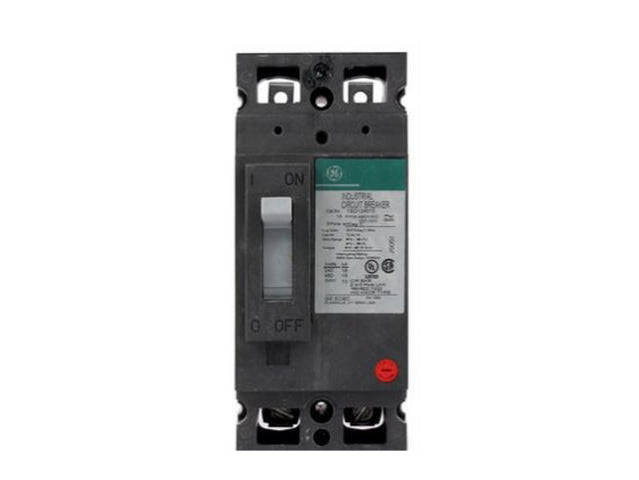

TED124045WL - General Electric Feed-Thru 45 Amp 2 Pole Circuit Breaker - Essential Electric Supply
TED124045WL - General Electric 45A 2 Pole 480V AC Circuit Breaker TED Series 18kA Interrupt Rating - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only

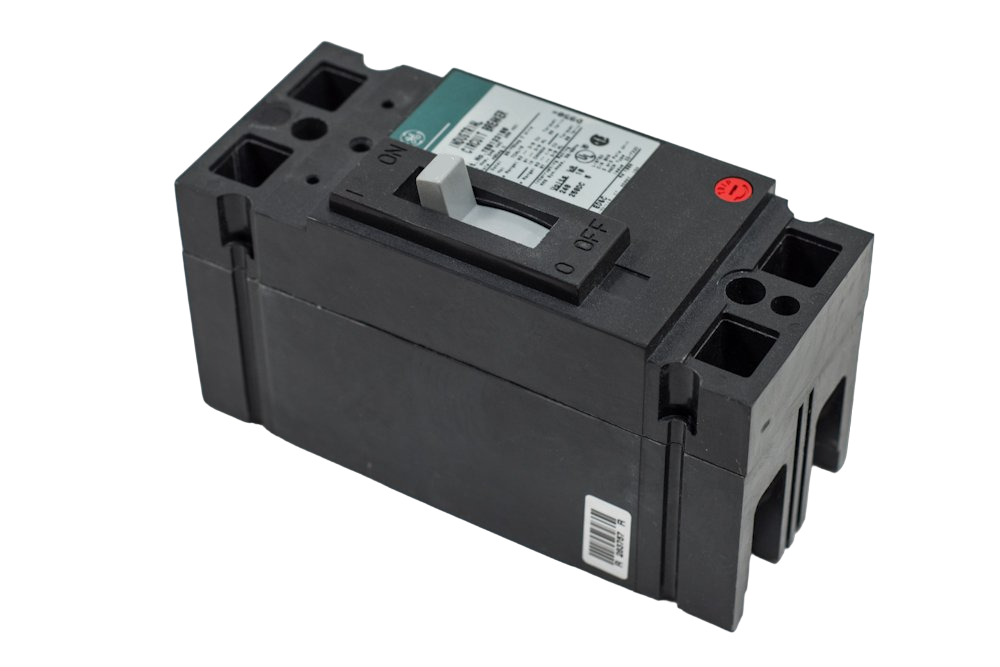

TED124045WL - General Electric Feed-Thru 45 Amp 2 Pole Circuit Breaker - Essential Electric Supply
TED124045WL - General Electric 45A 2 Pole 480V AC Circuit Breaker TED Series 18kA Interrupt Rating - Essential Electric Supply

Description

TED124045WL


TED124045WL is a General Electric 2 pole, 45 amp, 480V AC molded case circuit breaker designed for reliable protection in commercial and industrial applications. This breaker features a thermal magnetic trip unit and is part of the TED Series, compatible with GE E150 Line panelboards. The TED124045WL offers a standard interrupting rating of 18kA at 480V AC, making it suitable for a wide range of electrical distribution systems. It is equipped with line and load lug terminals for easy installation and secure connections. The breaker is designed for bolt-on panelboard mounting and is ideal for use in environments requiring dependable overload and short circuit protection.
  • Part Number: TED124045WL
  • Manufacturer: General Electric
  • Series: TED Series
  • Frame: E150 Line
  • Amperage: 45A
  • Voltage Rating: 480V AC
  • Number of Poles: 2
  • Interrupt Rating: 18kA at 480V AC
  • Mounting Type: Bolt On Panelboard
  • Terminal Connection: Line/Load Lug
  • Phase: 1
  • Trip Type: Thermal Magnetic
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: TED124045WL
  • Manufacturer : General Electric
  • Brand : General Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : E150 Line
  • Type : TED
  • Voltage : 480
  • Amperage : 45
  • Phase : 1
  • Poles : 2
  • AIC rating : 18kA@480V
  • Connection : Feed-Thru
  • Functions : LI - Long-Time and Instantaneous Trip
  • Terminal Connection : Line/Load Lug
  • Frame Size : 150A/TED
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 1/0 AWG (Al), 3 AWG (Cu)
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : Not Applicable

Product Data

  • UPC : 783164068092
  • GTIN : 00783164068092
  • Country of Origin : United States
  • Dimensions : 2-3/4 in x 6-5/16 in
  • Weight : 2
  • Panel Type : GE Panelboards
  • Standards : CSA Certified, UL Listed
  • Certification : CSA Certified, UL Listed

Accesories

Part Manufacture Sub Category
TEDAS2AB1
TECBAL
TEDMOMA1
