Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description

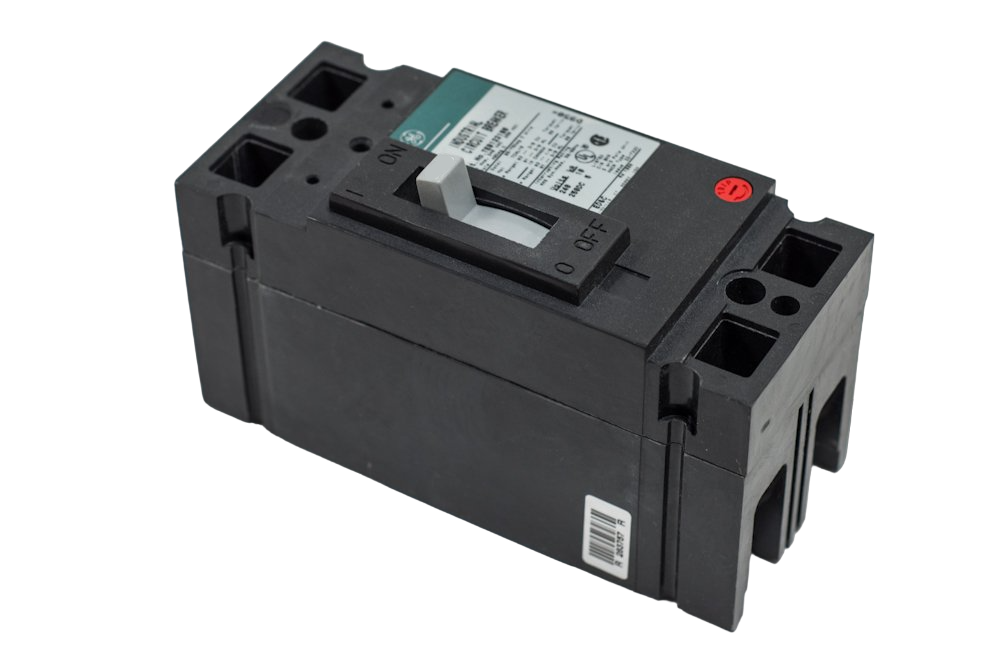

TED124040
TED124040 is a General Electric molded case circuit breaker designed for reliable overcurrent protection in electrical systems.This Type TED Core E breaker features a 40 ampere rating, 2 poles, and supports 480 VAC and 250 VDC voltages. It has an 18 kA interrupting rating at 240/480 VAC and uses a non-interchangeable thermal magnetic trip unit. The breaker is part of GE's E Frame series and includes line and load side lug terminals.
- Amperage: 40 A
- Voltage: 480 VAC / 250 VDC
- Poles: 2
- Interrupt Rating: 18 kA at 240/480 VAC
- Frame/Series: E Frame
- Trip Unit: Thermal Magnetic, Non-Interchangeable
- Mounting Type: Molded Case
- Line & Load Side Lug Terminals
- Phase: Single Phase
- Type: TED Core E Mid Tier
Specifications
- Part Number: TED124040
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : E150 Line
- Type : TED
- Voltage : 480
- Amperage : 40
- Phase : 1
- Poles : 2
- AIC rating : 18kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 783164068061
- GTIN : 00783164068061
- Weight : 2 lb
- Certification : UL
