TED124020WL - General Electric 20A 2-Pole 480V Molded Case Circuit Breaker Thermal Magnetic

SKU: TED124020WL-New
Condition: New
Price:
$1,033.19
Stock:
22 In stock, ready to be shipped

💡 ABB / GE Branding Notice

On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions.

As a result of this transition, certain products may be labeled as either ABB or GE depending on the manufacturing date and production batch. In many cases, the product itself remains identical in form, fit, function, and specifications, with only the branding or label differing.

Customers may receive:

  • ABB-branded products
  • GE-branded products
  • Packaging reflecting either brand

Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.

If you have questions regarding labeling, compatibility, or product identification, please contact our support team prior to ordering.

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

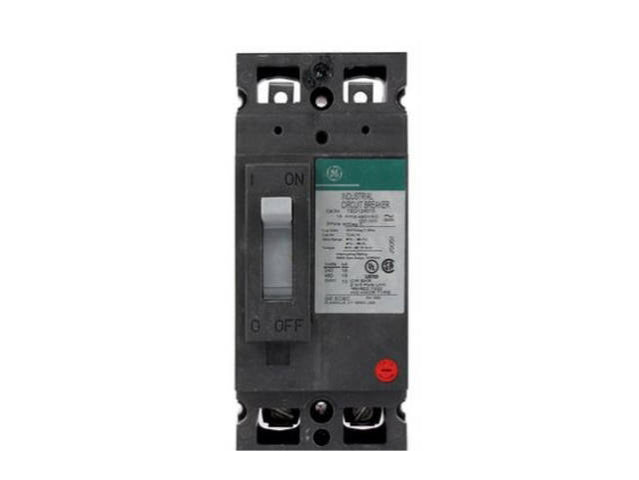

TED124020WL - General Electric Feed-Thru 20 Amp 2 Pole Circuit Breaker - Essential Electric Supply

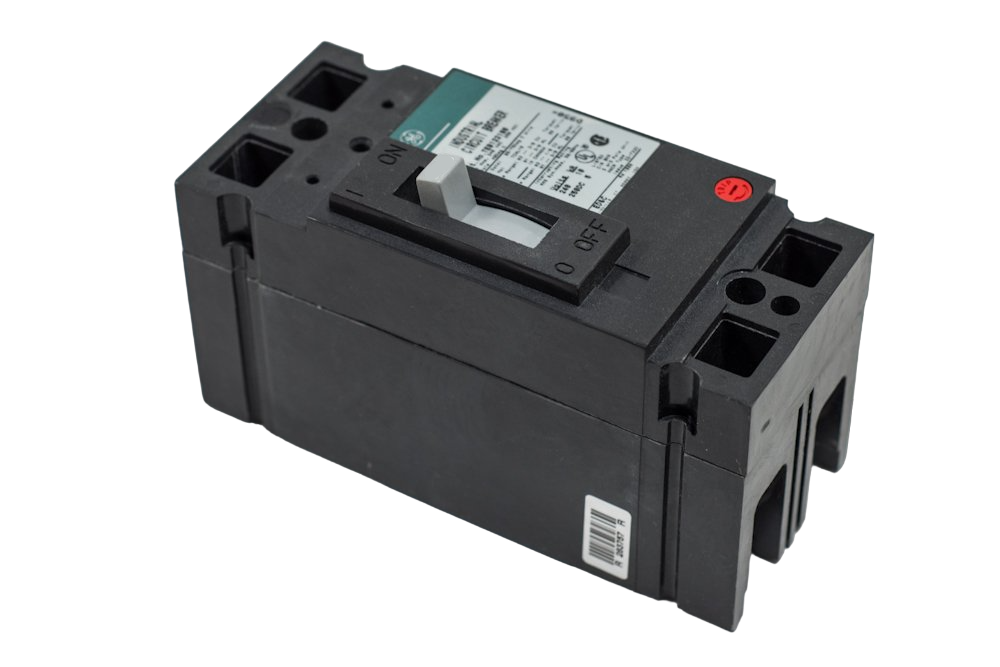

TED124020WL - General Electric 20A 2-Pole 480V Molded Case Circuit Breaker Thermal Magnetic - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
TED124020WL - General Electric Feed-Thru 20 Amp 2 Pole Circuit Breaker - Essential Electric Supply
TED124020WL - General Electric 20A 2-Pole 480V Molded Case Circuit Breaker Thermal Magnetic - Essential Electric Supply

Description

TED124020WL


TED124020WL is a General Electric 2-pole, 20A, 480V molded case circuit breaker with thermal magnetic trip technology for reliable circuit protection in commercial and industrial applications. This TED series breaker features a feed-thru design, 18kA interrupt rating at 480V, and is UL 489 listed. It is suitable for panelboard installations and offers HACR rating for use in heating, air conditioning, and refrigeration circuits.
  • Part Number: TED124020WL
  • Manufacturer: General Electric
  • Amperage: 20A
  • Poles: 2
  • Voltage: 480V AC, 250V DC
  • Interrupt Rating: 18kA @ 480V
  • Series/Frame: TED
  • Mounting Type: Feed-Thru
  • Connection Type: Line/Load Lug
  • Trip Unit: Thermal Magnetic
  • Certifications: UL 489, CSA, HACR
  • Actuator Type: Pivot/Toggle Handle
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: TED124020WL
  • Manufacturer : General Electric
  • Brand : General Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : E150 Line
  • Type : TED
  • Voltage : 480
  • Amperage : 20
  • Phase : 1
  • Poles : 2
  • AIC rating : 18kA@480V
  • Connection : Bolt-on Panelboard
  • Functions : LI - Long-Time and Instantaneous Trip
  • Terminal Connection : Line/Load Lug
  • Frame Size : 150A/TED
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 1/0 AWG (Al), 3 AWG (Cu)
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : Not Applicable

Product Data

  • UPC : 783164067996
  • GTIN : 00783164067996
  • Country of Origin : United States
  • Dimensions : 2-3/4 in x 6-5/16 in
  • Weight : 2
  • Panel Type : GE Panelboards
  • Standards : CSA Certified, UL Listed
  • Certification : CSA Certified, UL Listed

Accesories

Part Manufacture Sub Category
TEDAS2AB1
TECBAL
TEDMOMA1
