2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
TED124015

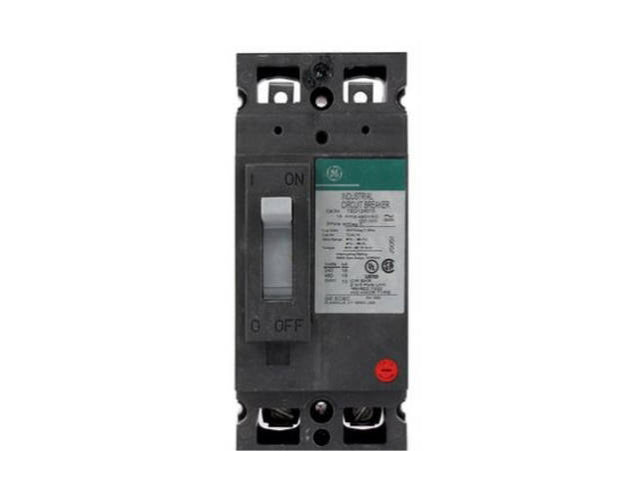

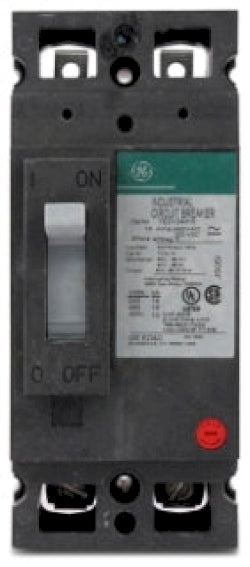

TED124015 is a 2 pole molded case circuit breaker designed for reliable overcurrent protection in commercial and industrial applications. This General Electric breaker features a thermal magnetic trip unit and is rated for 15 amps at 480VAC, making it suitable for a wide range of electrical systems. The TED124015 is part of the TED series and offers a robust design with a 18kA interrupt rating. It is designed for feed-thru mounting and provides dependable protection for electrical circuits. The breaker is non-interchangeable and features LI thermal magnetic trip technology for precise protection.
- Part Number: TED124015
- Manufacturer: General Electric
- Amperage: 15A
- Voltage: 480VAC
- Poles: 2
- Interrupt Rating: 18kA @ 480V
- Series/Frame: TED
- Mounting Type: Feed-Thru
- Thermal Magnetic Trip: LI/Non-Interchangeable
- Application: Commercial/Industrial
- DC Voltage Rating: 250VDC
- Certifications: UL Listed
Specifications
- Part Number: TED124015
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : E150 Line
- Type : TED
- Voltage : 480
- Amperage : 15
- Phase : 1
- Poles : 2
- AIC rating : 18kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 783164067972
- GTIN : 00783164067965
- Weight : 2
