Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
TEB122Y100

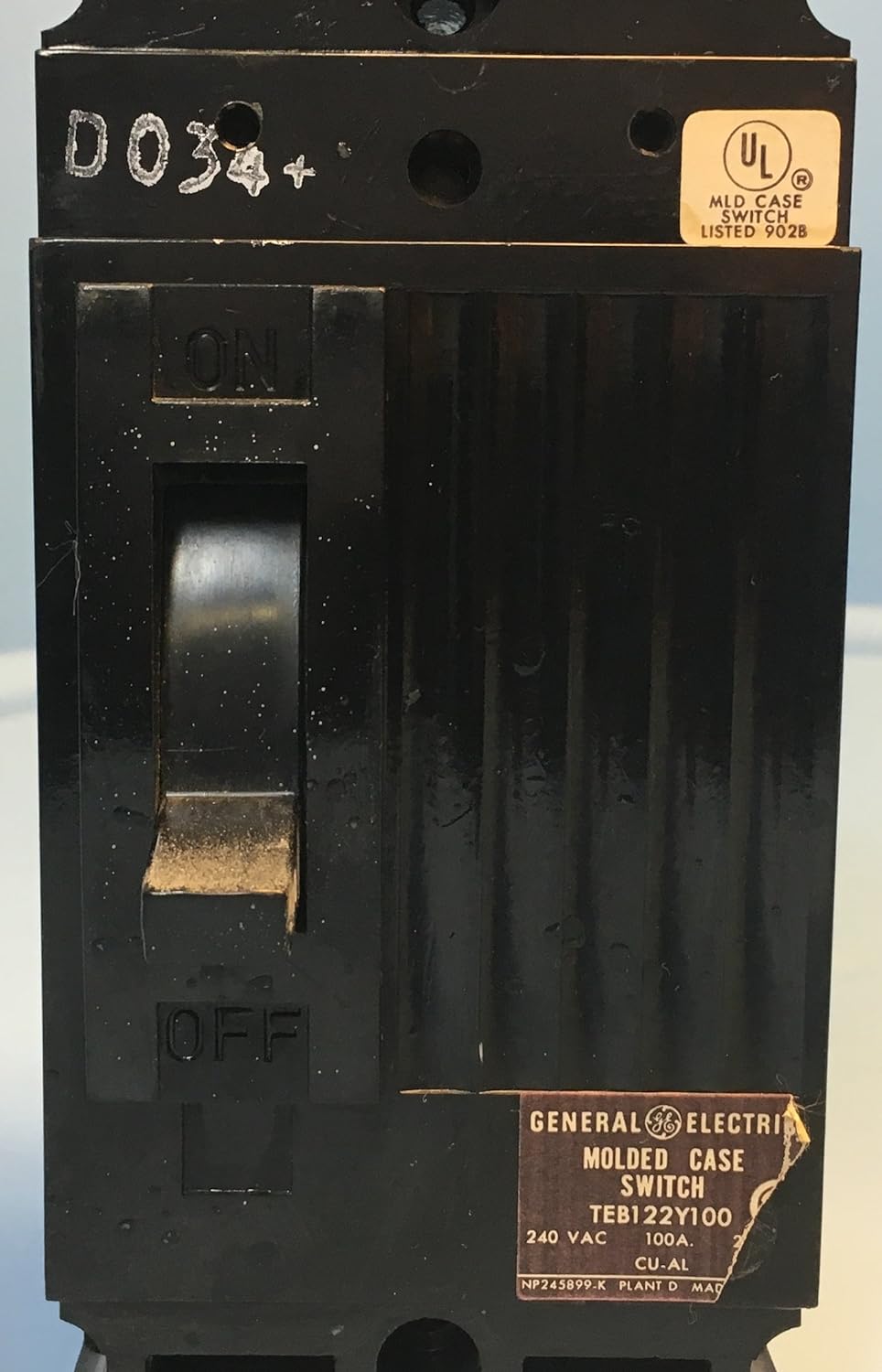

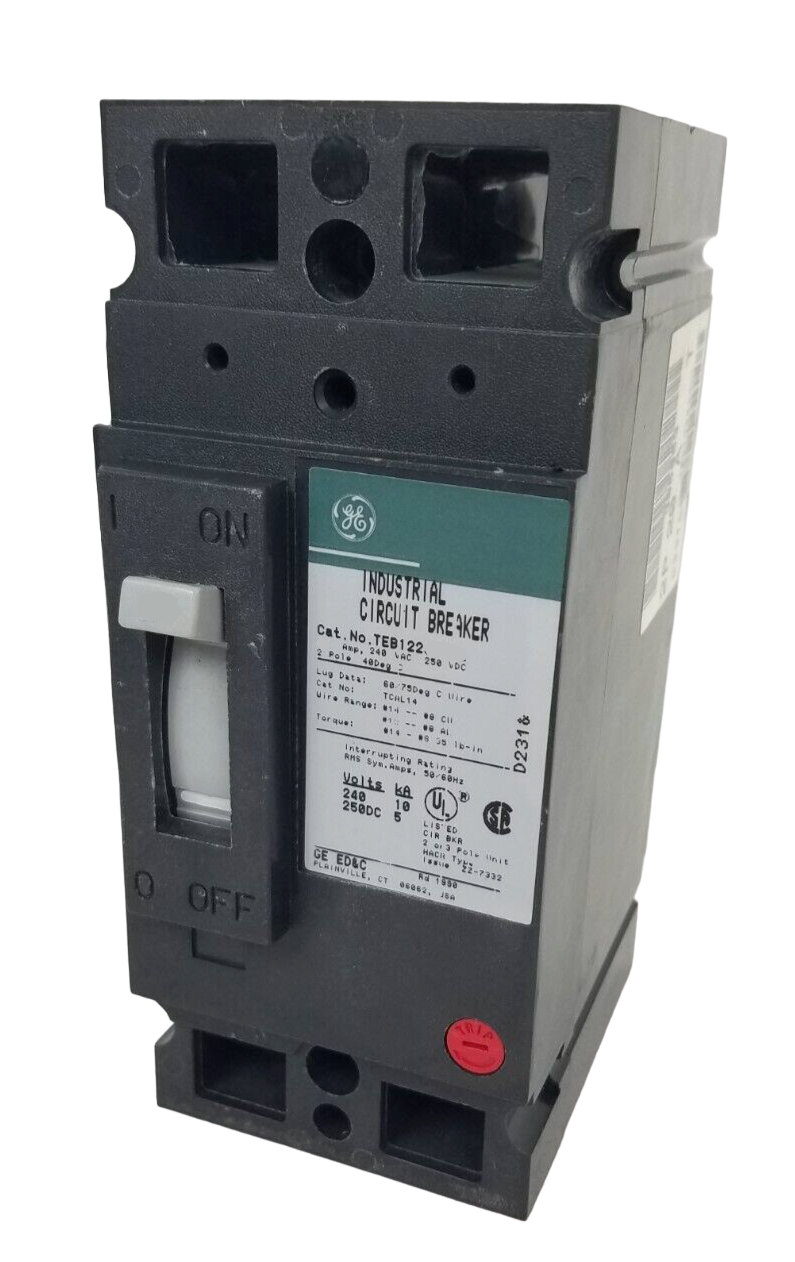

TEB122Y100 is a General Electric 2-pole, 100A molded case circuit breaker designed for non-automatic switching applications with a 240V AC rating and E150 frame. This molded case circuit breaker features feed-through mounting, line and load side lug terminals, and is suitable for 1-phase systems. It provides reliable switching without overcurrent protection and is rated for 14kA interrupting capacity at 240V. The TEB122Y100 is ideal for industrial and commercial power distribution where manual switching is required.
- Part Number: TEB122Y100
- Manufacturer: General Electric
- Amperage: 100A
- Voltage: 240V AC
- Poles: 2
- Mounting Type: Feed-Through
- Interrupt Rating: 14kA@240V
- Frame/Type: E150/TEB
- Trip Unit: Non-Automatic Switch
- Terminals: Line & Load Lug
- Phase: 1-Phase
- Certifications: UL 1066, UL 489, CSA LR57114
Specifications
- Part Number: TEB122Y100
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : E150 Line
- Type : TEB
- Voltage : 240
- Amperage : 100
- Phase : 1
- Poles : 2
- AIC rating : 14kA@240V
- Connection : Feed-Thru
- Functions : NA - No Overcurrent
- Protection : Non-Automatic
Product Data
- UPC : 078316406764
- GTIN : 00783164067644
- Weight : 1
