Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
TEB122030WL

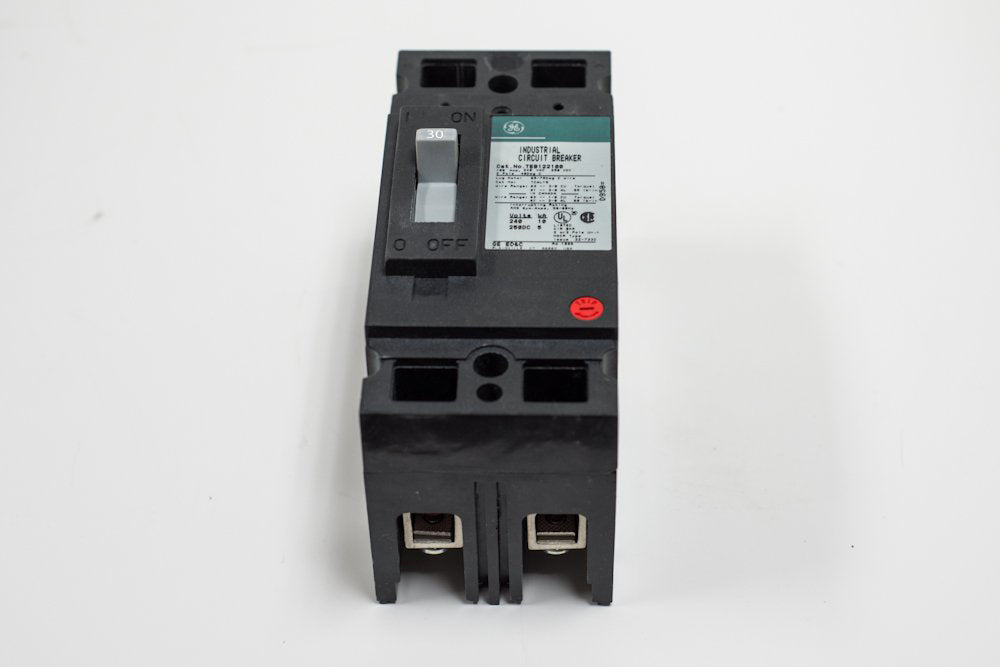

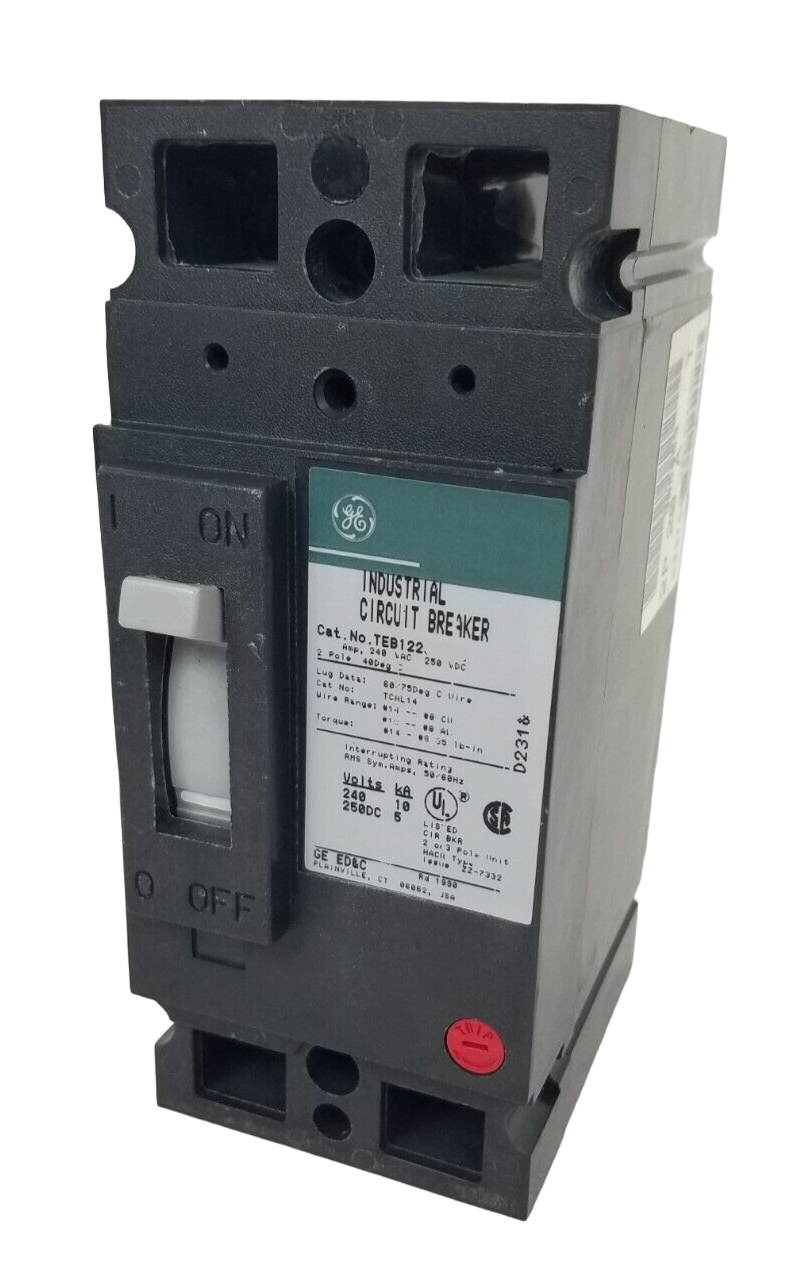

TEB122030WL is a 2 pole, 30 amp, 240 volt molded case circuit breaker from General Electric designed for reliable thermal magnetic protection.This circuit breaker features a Type TEB Core E Low-Tier design with a 5/10 kA interrupt rating, suitable for 50/60 Hz applications. It is part of the E150 Line family and supports feed-thru connection mounting.
- Amperage: 30 Amps
- Voltage Rating: 240 VAC
- Poles: 2
- Interrupt Rating: 5/10 kA
- Frequency: 50/60 Hz
- Type: TEB Core E Low-Tier
- Mounting: Feed-Thru Connection
- Series/Frame: E150 Line
- Trip Unit: Thermal Magnetic
- Phase: Single
Specifications
- Part Number: TEB122030WL
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : E150 Line
- Type : TEB
- Voltage : 240
- Amperage : 30
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783164068573
- GTIN : 00783164068573
- Weight : 2 lb
- Certification : UL Listed
