Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
TEB122060

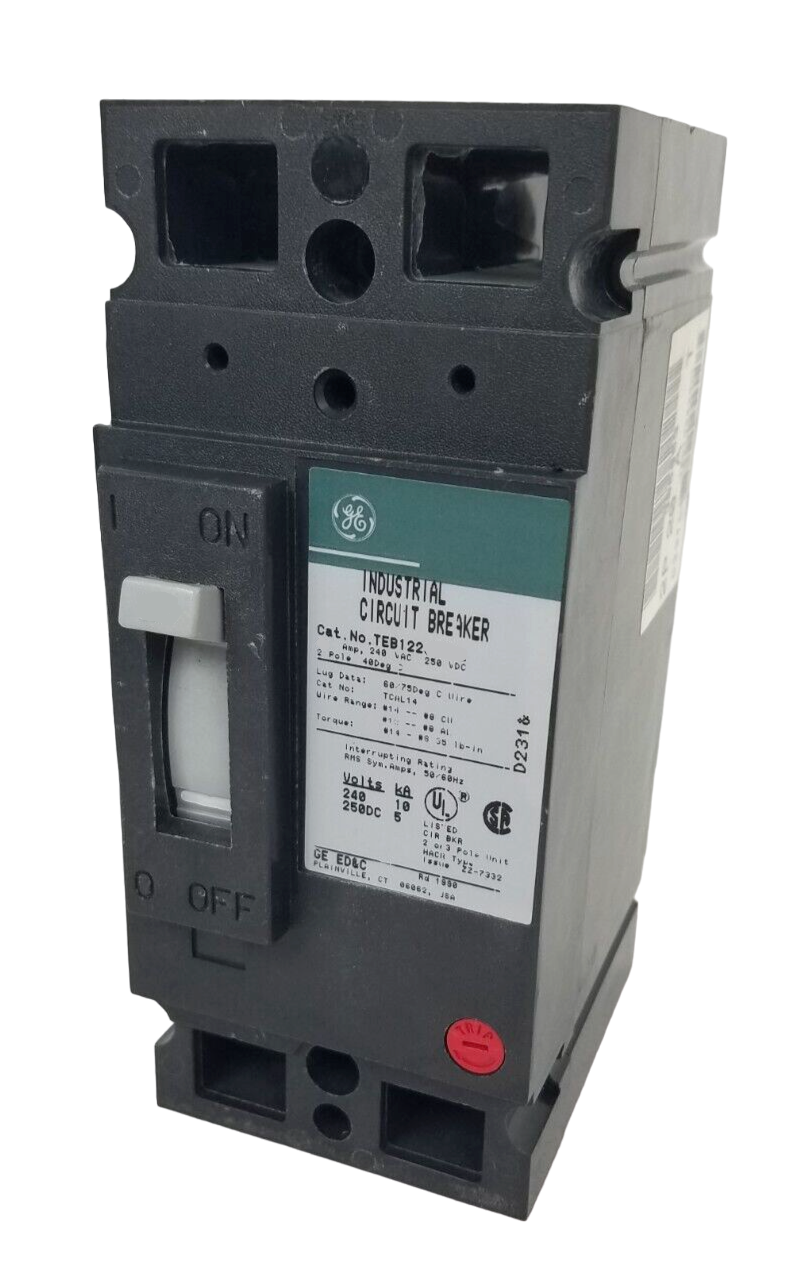

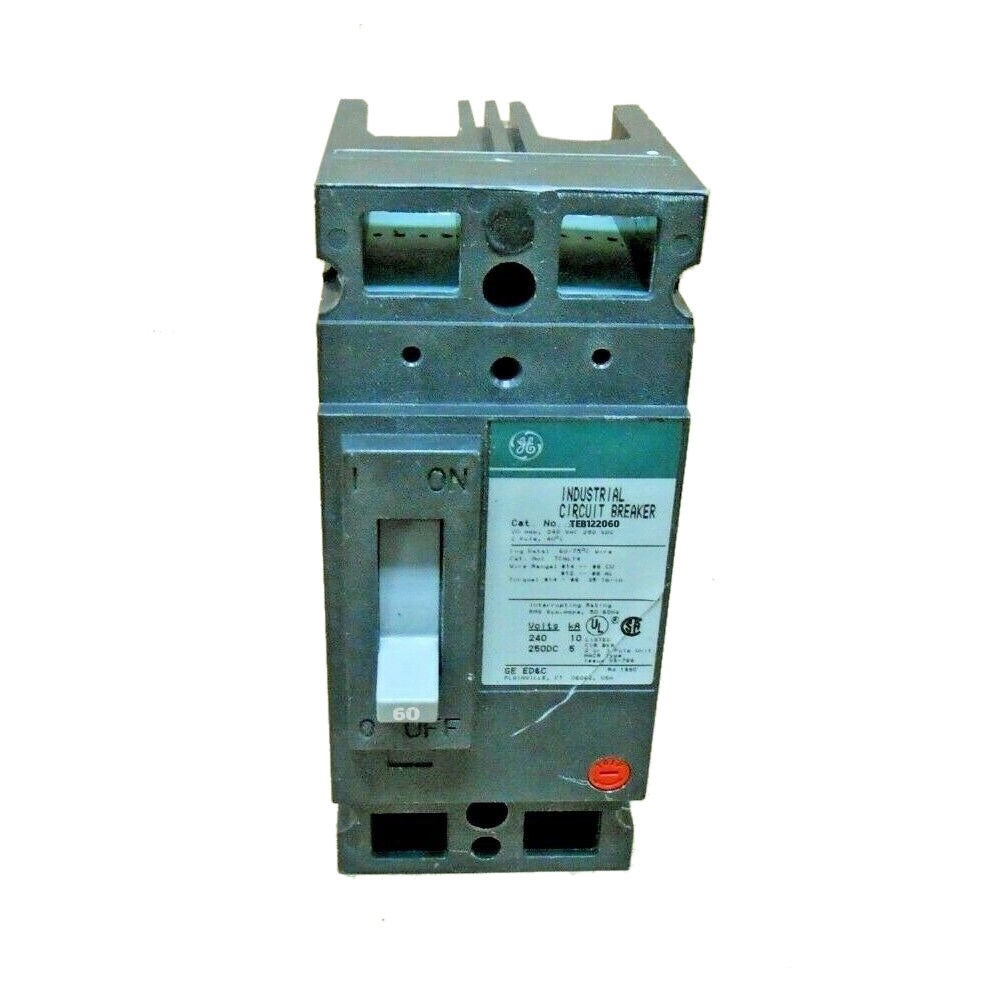

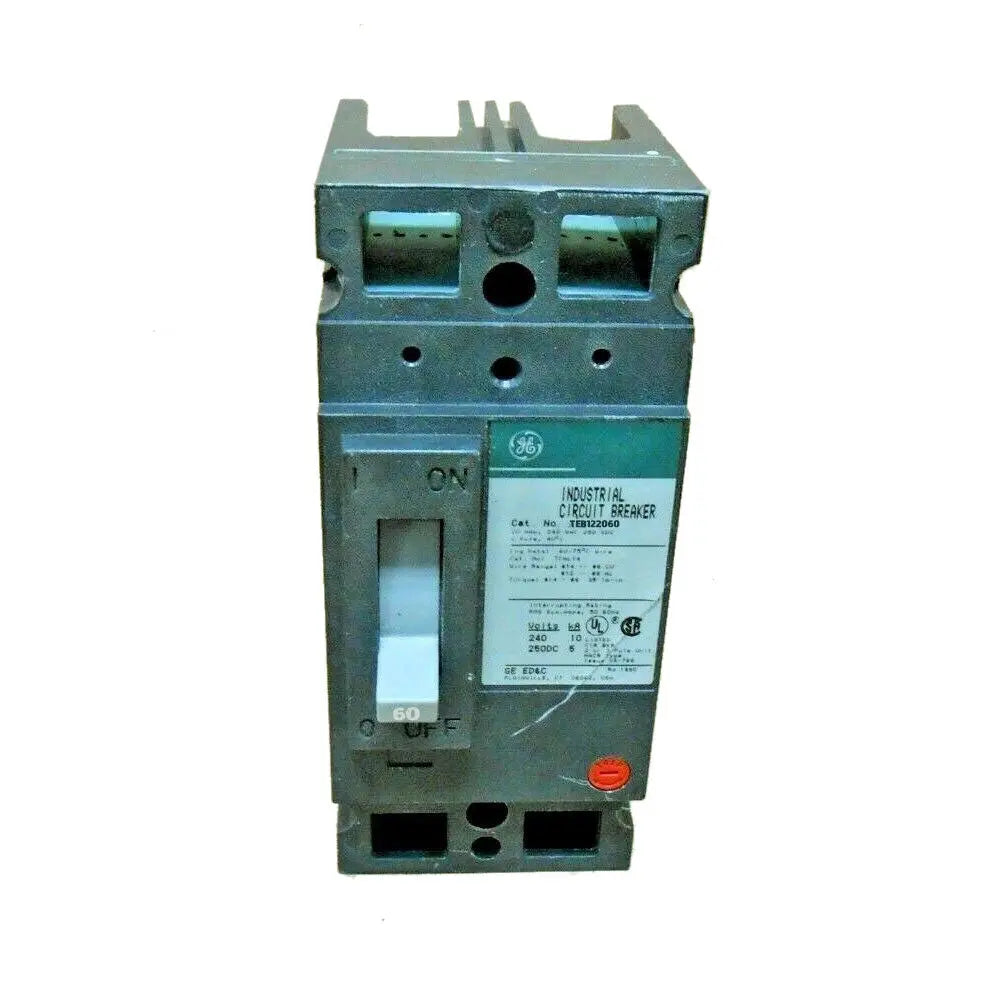

TEB122060 is a General Electric 2 pole, 60 amp, 240 volt thermal magnetic molded case circuit breaker designed for reliable electrical distribution protection.This circuit breaker features a TEB frame with a 10kA interrupt rating at 240 VAC, thermal magnetic trip unit with long time and instantaneous trip functions, and line & load side lug terminals. It is suitable for single-phase applications and provides feed-thru capability for flexible wiring.
- Manufacturer: General Electric
- Amperage: 60 Amps
- Voltage: 240 VAC
- Poles: 2 Pole
- Frame Type: TEB (E150 Line)
- Interrupt Rating: 10kA at 240V
- Trip Unit: Thermal Magnetic (LI/Non-Interchangeable)
- Mounting Type: Molded Case
- Phase: Single Phase
- Terminals: Line & Load Side Lug Terminals
- Feed-Thru Capability
Specifications
- Part Number: TEB122060
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : E150 Line
- Type : TEB
- Voltage : 240
- Amperage : 60
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783164068665
- GTIN : 00783164068665
- Weight : 2 lb
