Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description

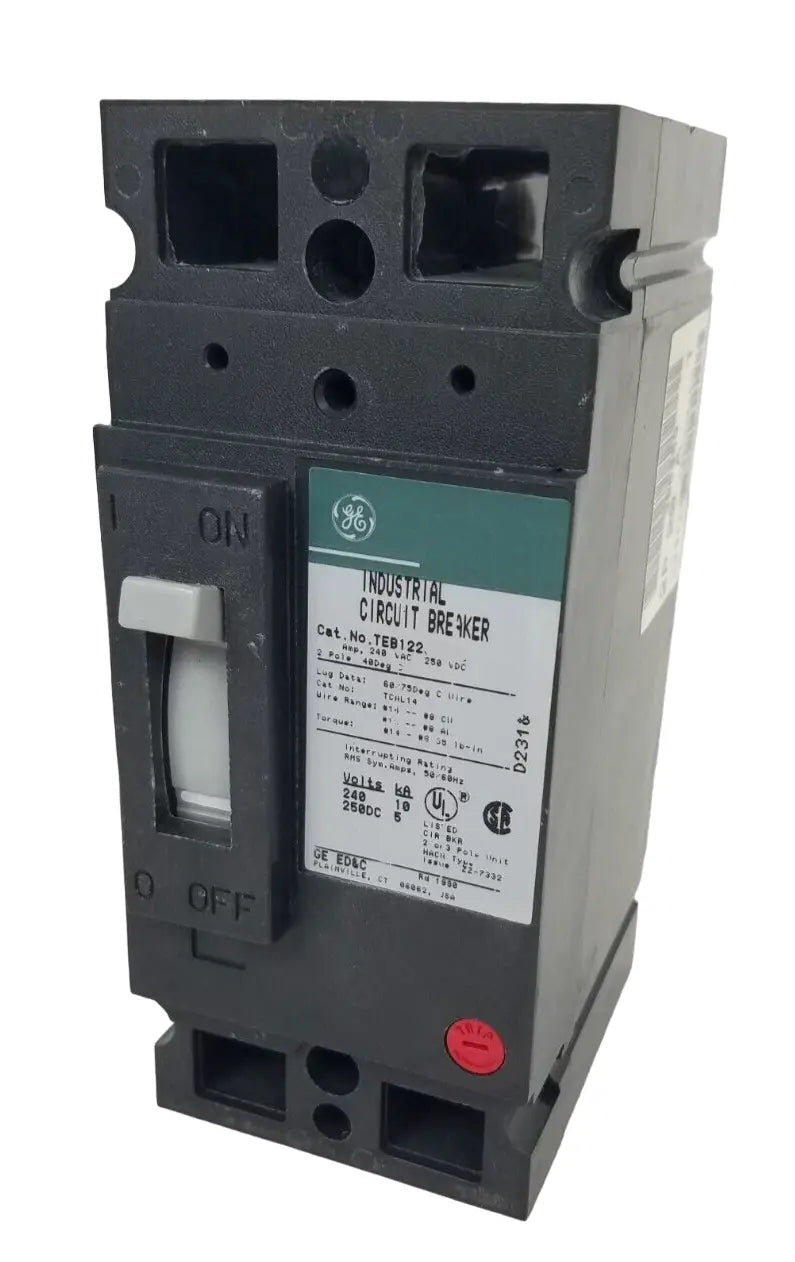

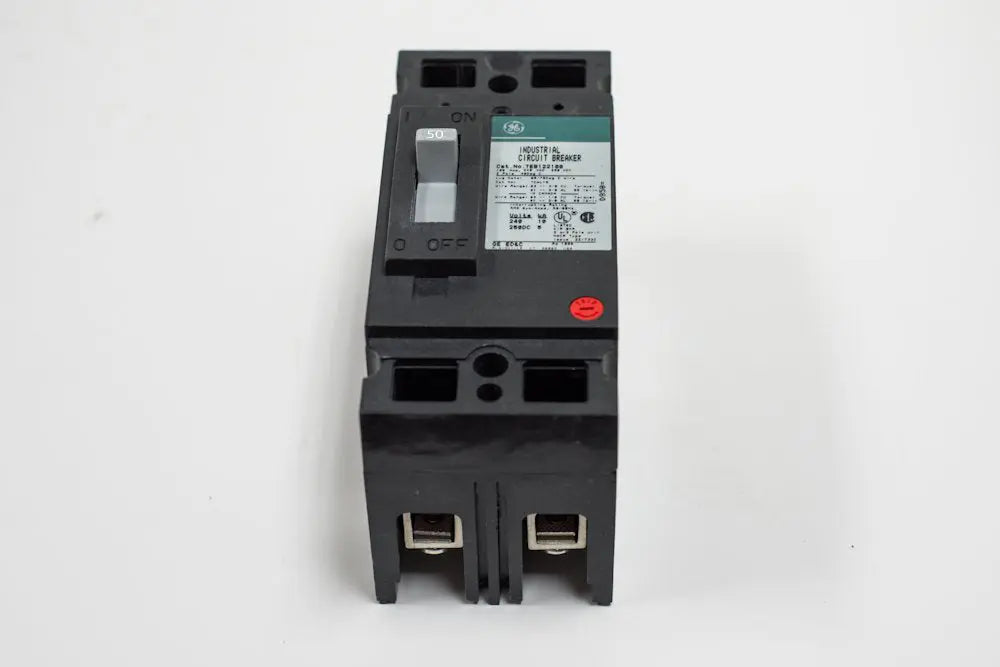

TEB122050WL
TEB122050WL is a General Electric molded case circuit breaker designed for reliable protection in electrical distribution systems.This Type TEB breaker features a 50 ampere rating, 240 volt voltage, and 2 poles with a thermal magnetic trip unit. It belongs to the E150 frame series and offers a 10 kA interrupt rating at 240 VAC. The breaker includes line and load side lug terminals and is suitable for industrial and commercial applications.
- Amperage: 50 A
- Voltage: 240 VAC
- Poles: 2
- Type: TEB
- Frame/Series: E150
- Interrupt Rating: 10 kA at 240 VAC
- Trip Unit: Thermal Magnetic
- Mounting: Feed-Thru
- Load Rating: HACR
- Certifications: Meets E11592 Standard
Specifications
- Part Number: TEB122050WL
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : E150 Line
- Type : TEB
- Voltage : 240
- Amperage : 50
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783164068658
- GTIN : 00783164068658
- Weight : 2
- Certification : UL Listed
