Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
TEB122020WL

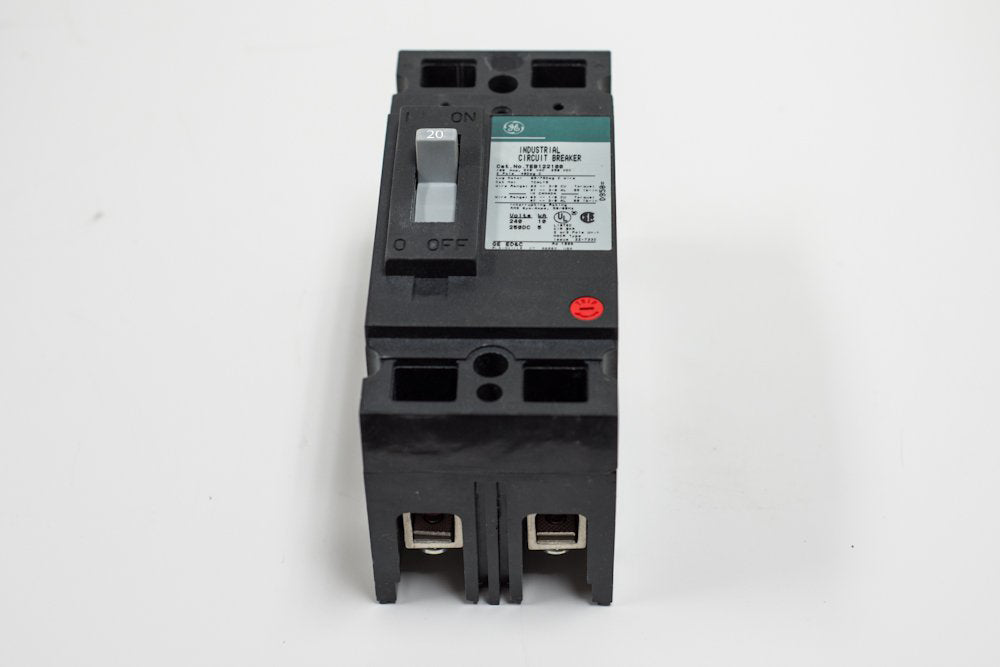

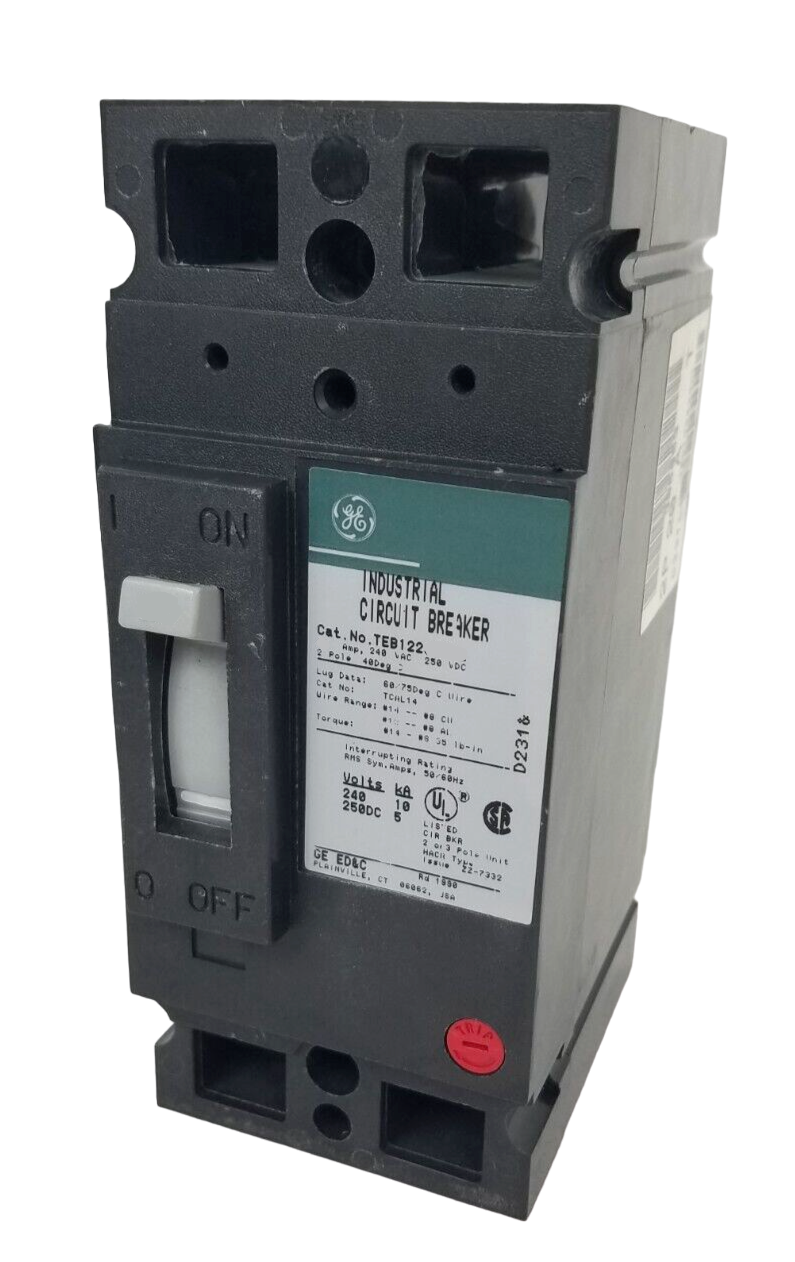

TEB122020WL is a 20 Amp, 2 Pole thermal magnetic molded case circuit breaker from General Electric designed for reliable electrical protection.This circuit breaker features a 240 Volt rating with a 10kA interrupting capacity at 120/240 VAC and 5kA at 125/250 VDC. It uses the E150 frame type and includes line and load lug terminals for easy installation. The trip unit is fixed and non-interchangeable, suitable for reverse feed applications. It is UL listed and CSA certified, ensuring compliance with safety standards, and RoHS compliant for environmental safety.
- Key Specifications
- Amperage: 20 A
- Poles: 2
- Voltage Rating: 120/240 VAC, 125/250 VDC
- Interrupting Rating: 10kA AC, 5kA DC
- Frame Type: E150
- Trip Unit: Fixed, non-interchangeable
- Lugs: Copper/Aluminum line and load lugs
- Suitable for Reverse Feed: Yes
- Certifications: UL Listed (E11592), CSA Certified (LR57114)
- Environmental Compliance: RoHS
Specifications
- Part Number: TEB122020WL
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : E150 Line
- Type : TEB
- Voltage : 240
- Amperage : 20
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783164068535
- GTIN : 00783164068535
- Weight : 2 lb
- Certification : UL Listed
