TAP321 - Eaton 30A 240V 3-Pole Fusible Bus Plug Old Line

TAP321

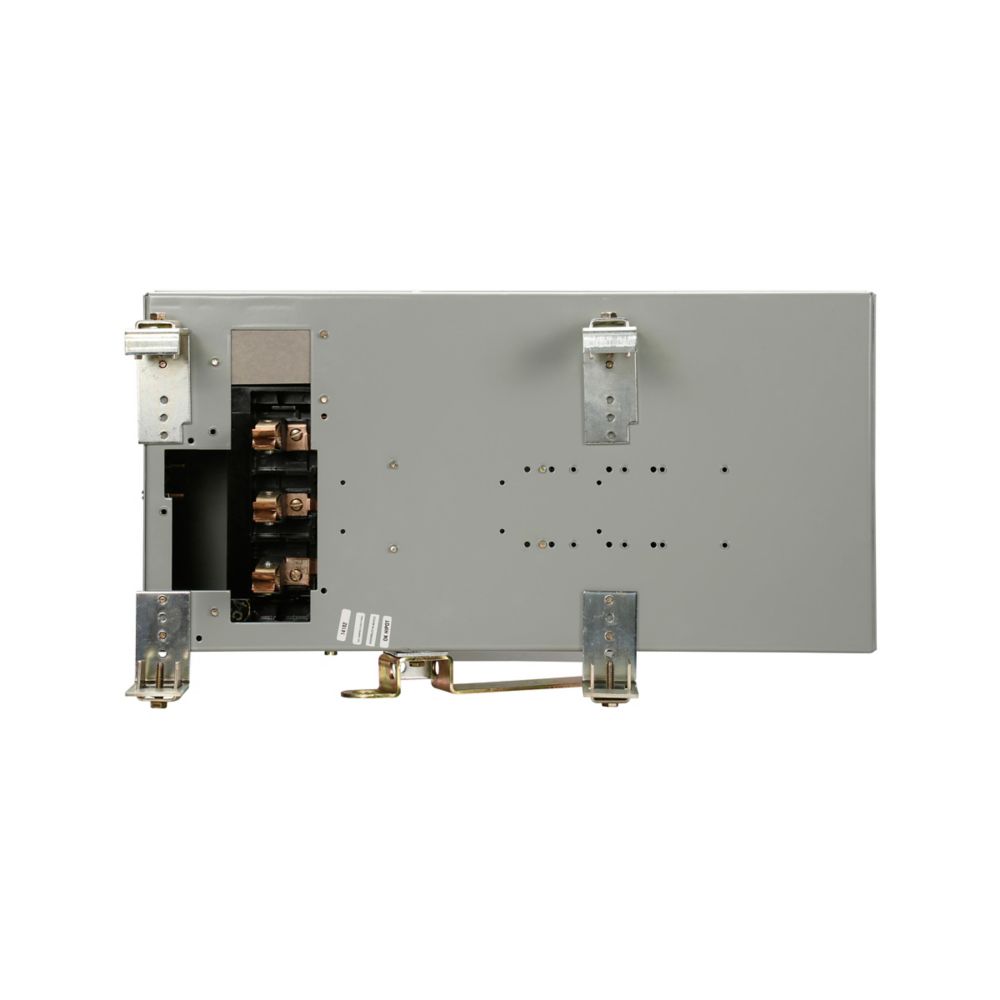

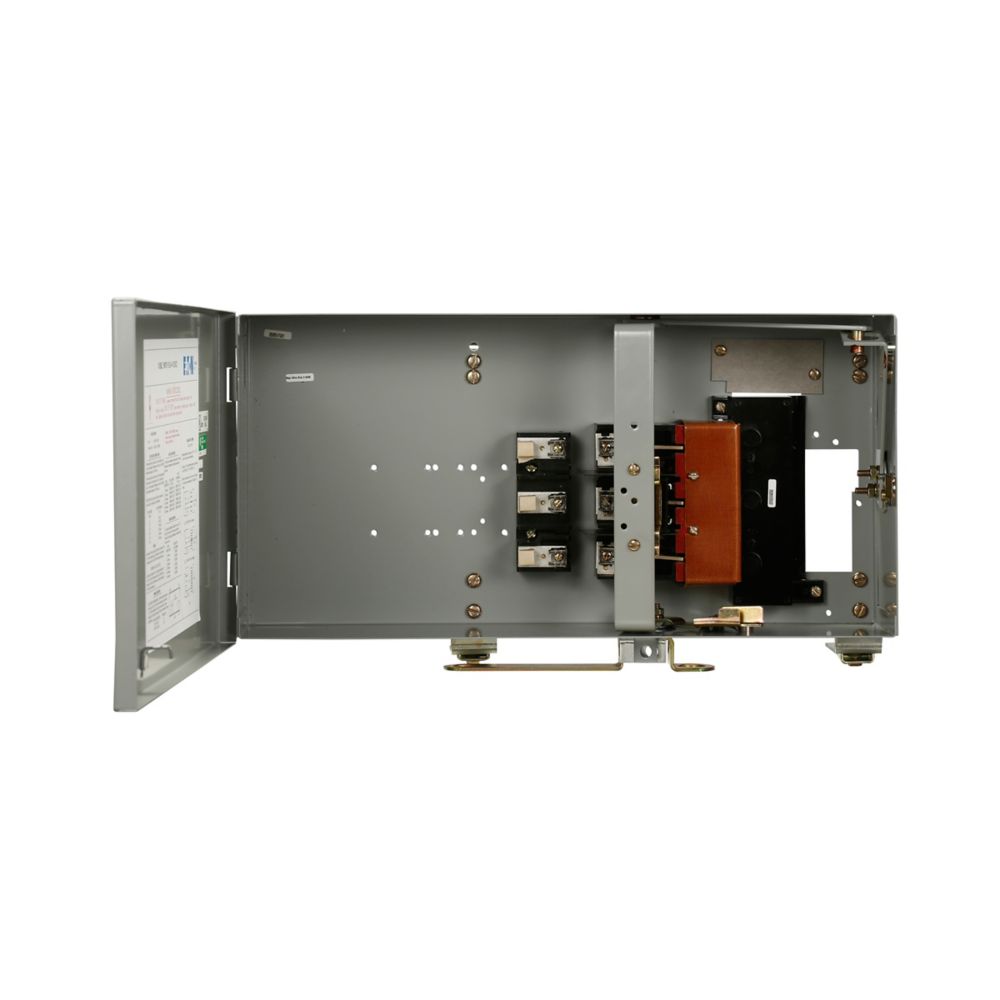

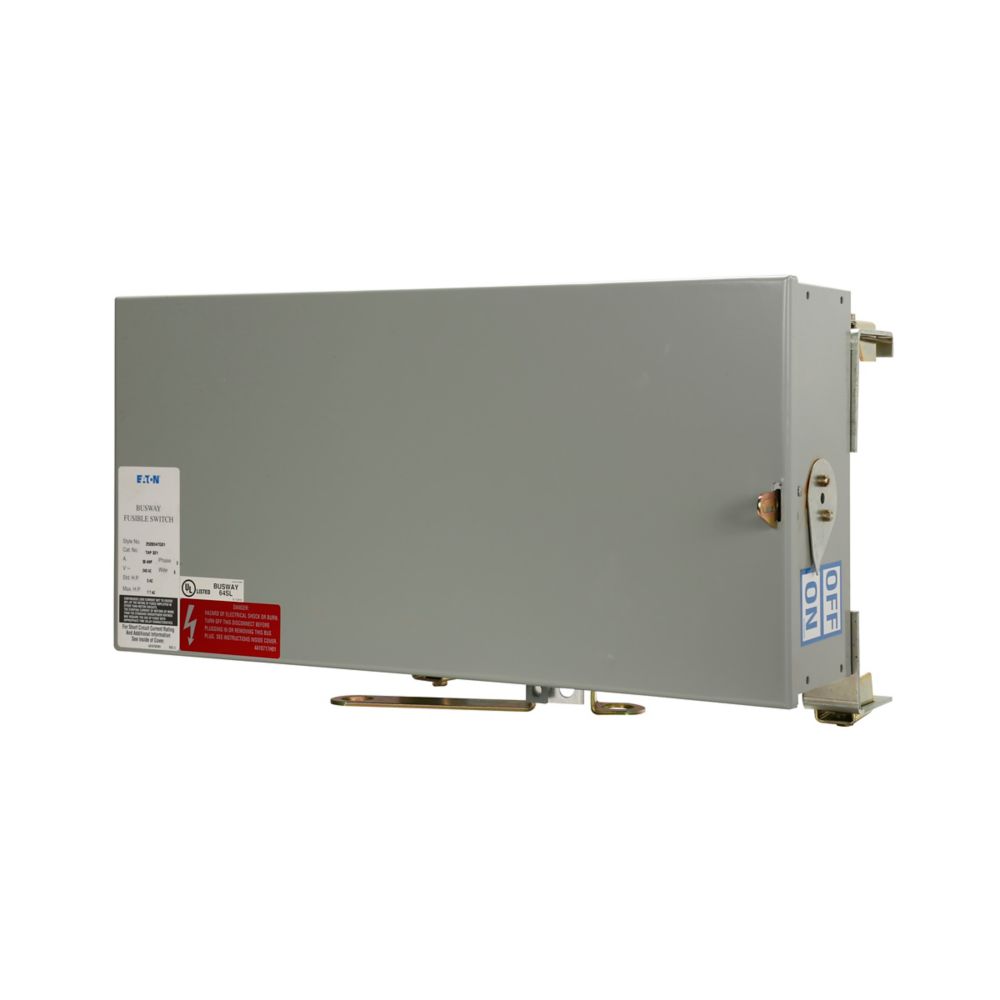

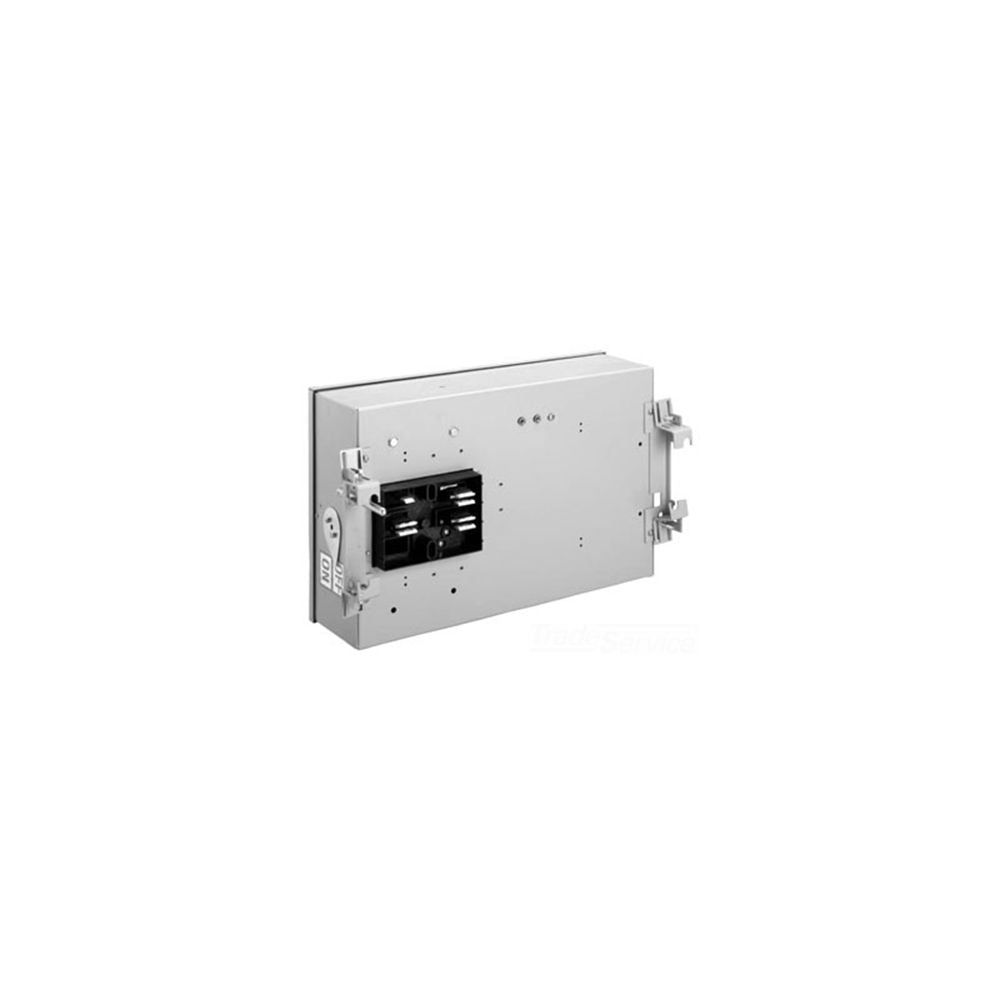

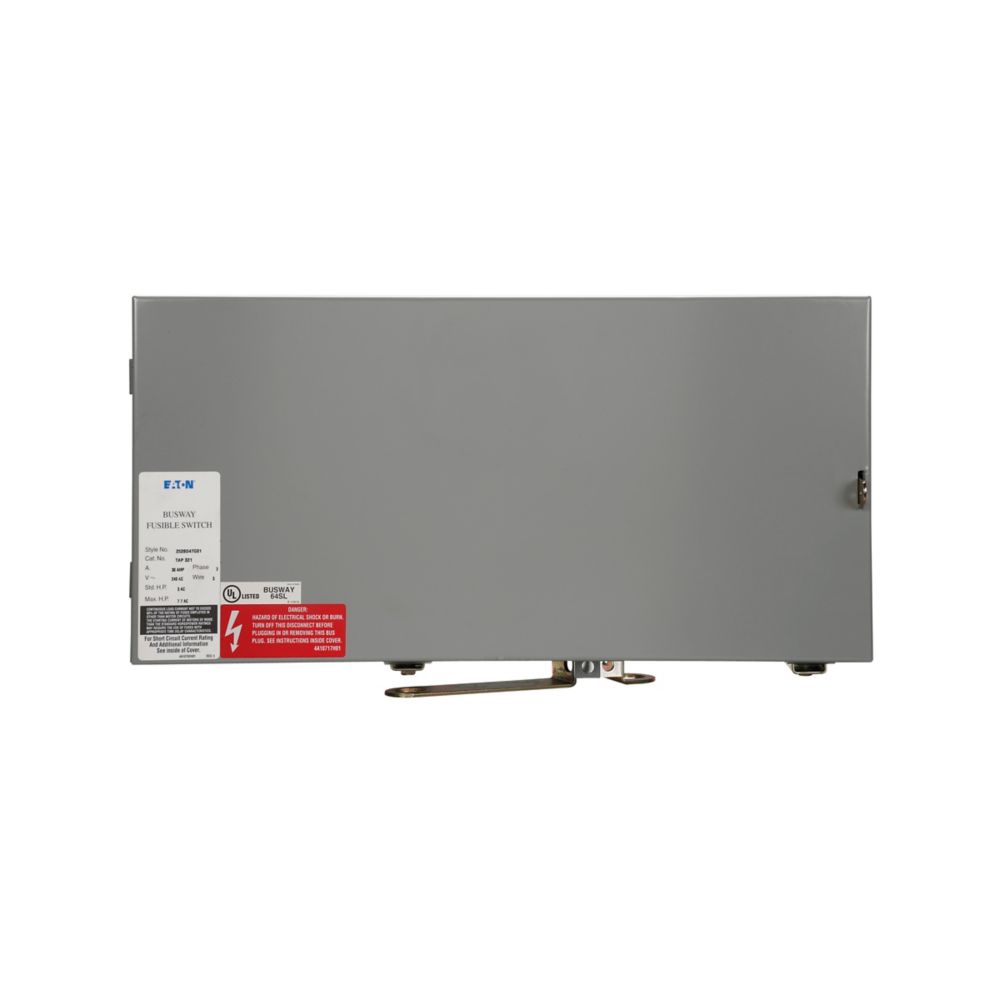

TAP321 is a three-pole fusible bus plug from Eaton's Old Line series designed for use with standard plug-in busway systems. This fusible plug-in unit provides reliable power distribution with H-class fuse compatibility and is suitable for three-phase applications. TAP321 features a compact design with dimensions of 21.7 inches length, 12.5 inches width, and 11.4 inches height, weighing 22.95 pounds. The unit is NEMA compliant and meets UL 857, ANSI, IEEE, and CSA certification standards for safe operation in industrial and commercial environments.

• Amperage Rating: 30A
• Voltage Rating: 240V
• Number of Poles: 3-Pole
• Phase: Three-Phase
• Type: Fusible Plug-In Unit
• Fuse Class: H-Class
• Series: Old Line
• Short-Circuit Rating: 200kA at 240V
• Certifications: UL 857, NEMA, ANSI, IEEE, CSA
• Product Weight: 22.95 lb
• Warranty: 1 year from installation or 18 months from shipment, whichever occurs first

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: TAP321
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Bus Plug
• Item Subcategory : Bus Plug Part
• Family : Standard Design
• Type : TAP
• Voltage : 240
• Amperage : 30
• Phase : 3
• AIC rating : 200kA@240V
• Fuse Class : R, H, J
• Wire : 3

Product Data

• UPC : 786683400015
• GTIN : 00786683400015
• Country of Origin : Mexico
• Dimensions : 21.7 in x 11.4 in x 12.5 in (Length/Depth x Height x Width)
• Weight : 22.95
• Certification : IEEE Certified,CSA Certified,UL 857,ANSI,NEMA Compliant
