TA75DU-32 - ABB 22-32A 3-Pole Thermal Overload Relay 690V AC Close Mounting Trip Class 10A

TA75DU-32

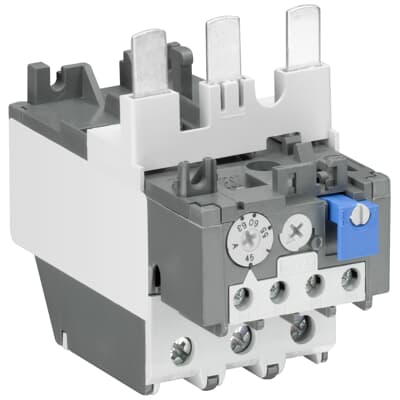

TA75DU-32 is a thermal overload relay designed for motor protection with adjustable current settings from 22 to 32 amperes.

This ABB thermal overload relay is engineered for close couple mounting with A Line contactors and also allows separate panel mounting. It features a 3-pole design suitable for motor control circuits up to 690V AC. The relay includes 1 normally open (NO) and 1 normally closed (NC) auxiliary contact for signaling and control functions. It offers Class 10 trip characteristics for reliable motor overload protection and supports manual or automatic reset. The device is factory calibrated and tested, providing phase failure and phase unbalance protection with ambient temperature compensation from -25°C to +55°C. Additional features include trip indication, remote trip and reset options, and front-accessible terminal screws for easy installation. This relay is UL and CSA certified.

• Amperage: 22-32A adjustable
• Voltage Rating: 690V AC main circuit
• Poles: 3
• Auxiliary Contacts: 1NO-1NC
• Trip Class: 10A
• Mounting Type: Close couple mounting
• Manual or automatic reset
• Phase failure and unbalance protection
• Ambient temperature range: -25°C to +55°C
• UL File No: E48139
• CSA File No: LR98336

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: TA75DU-32
• Manufacturer : ABB
• Brand : ABB
• Category : Motor Control
• Item Subcategory : Overload Relay

Product Data

• UPC : 01361421669
• GTIN : 04013614216695
• Weight : 5
