Product Info
- Manufacturer:Boltswitch
- Sub-Category:Bolted Pressure
Description
T225WOL

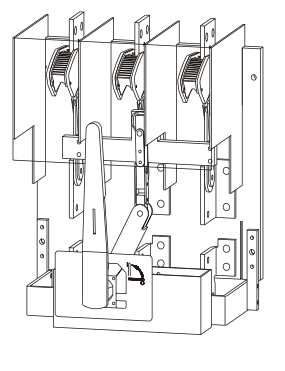

T225WOL is a Boltswitch 400 Amp, 240 Volt, 2 Pole Fusible Bolted Pressure Switch designed for reliable load break and circuit protection.This switch features a bolted pressure contact design with quick-make, quick-break operators for safe and efficient operation. It is rated for 1 phase, 2 pole applications with a NEMA 1 indoor enclosure rating. The switch accommodates Class T fuses and is UL listed for use on circuits with up to 200,000 RMS symmetrical amperes fault current. The operating handle provides visible open/closed indication and can be padlocked in the open position for safety.
- Key Specifications
- Amperage: 400 Amps
- Voltage: 240 Volts
- Poles: 2 Pole
- Phase: 1 Phase
- Type: Fusible Bolted Pressure Switch
- Enclosure: NEMA 1
- Interrupt Rating: 200,000 RMS symmetrical amperes
- Fuse Class: Class T
- UL Listed
- Part Number: T225WOL
- Manufacturer : Boltswitch
- Brand : Boltswitch
- Category : Switch
- Item Subcategory : Bolted Pressure
- Family : T Series
- Type : T
- Voltage : 240
- Amperage : 400
- Phase : 1
- Poles : 2
- AIC rating : 200kA@240V
- Fuse Class : T
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : 1
- Compatible Frames : SFPA
- Weight : 250
