Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description
T1N040TL

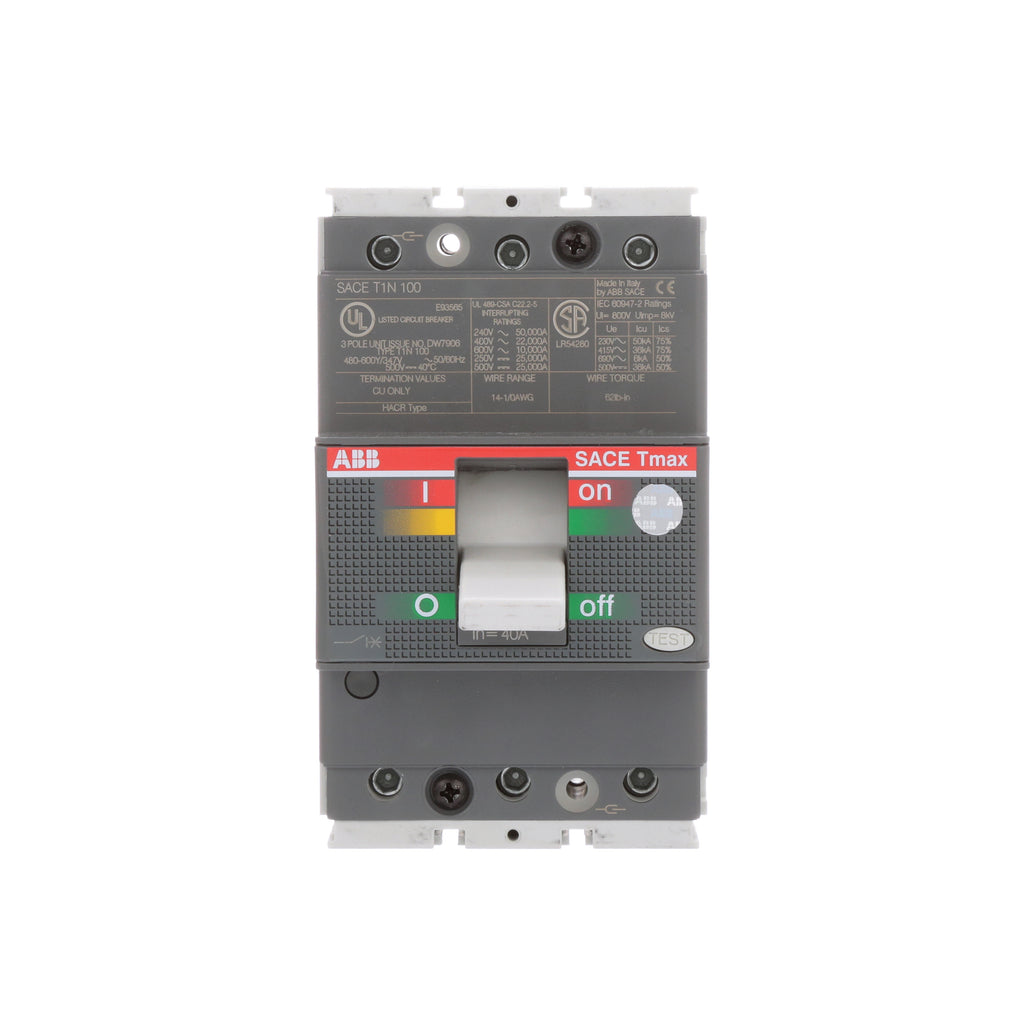

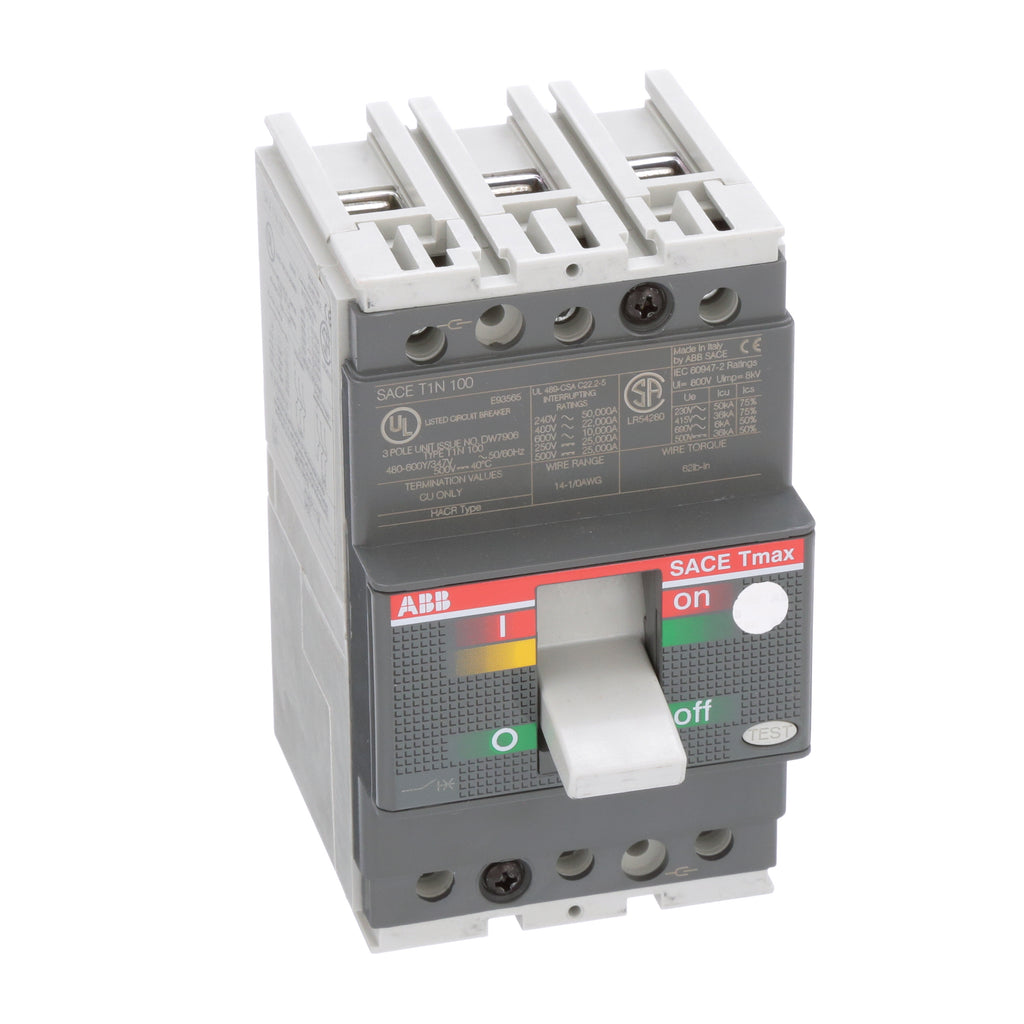

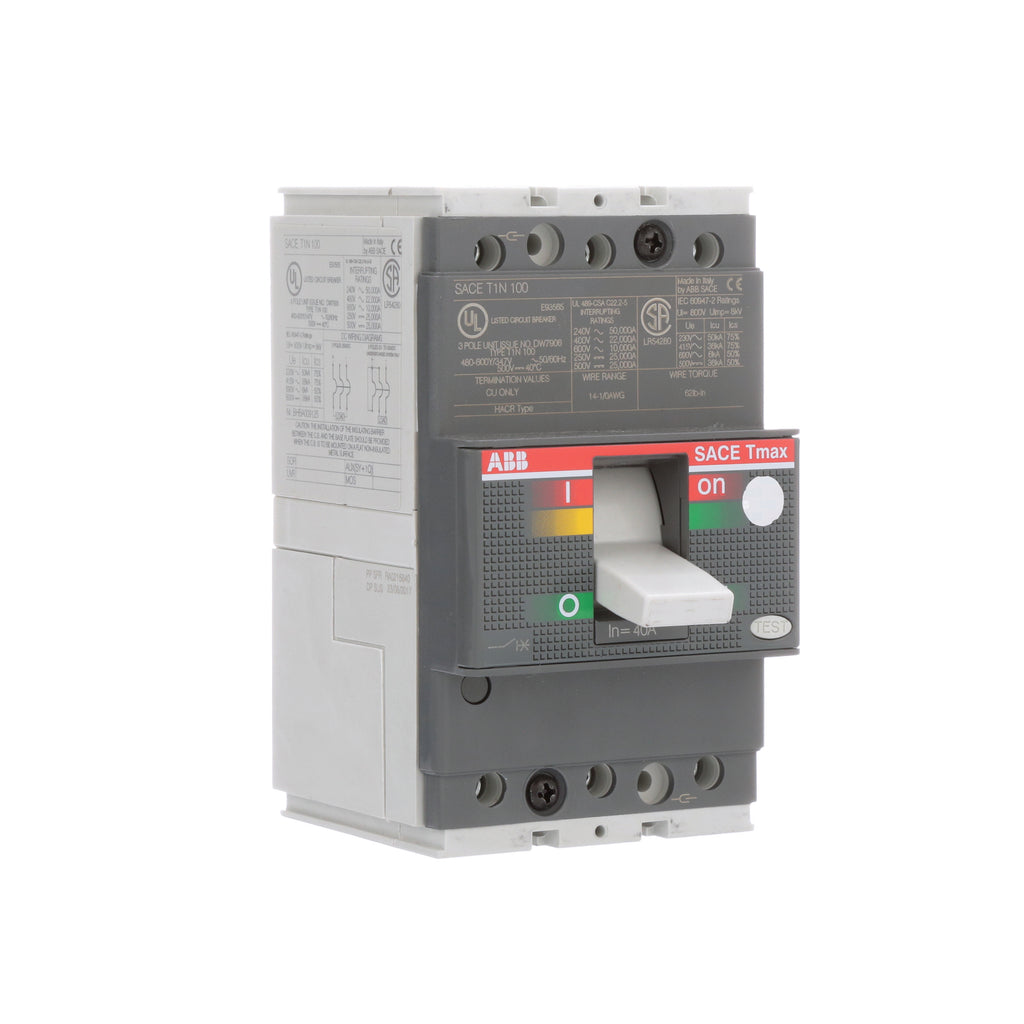

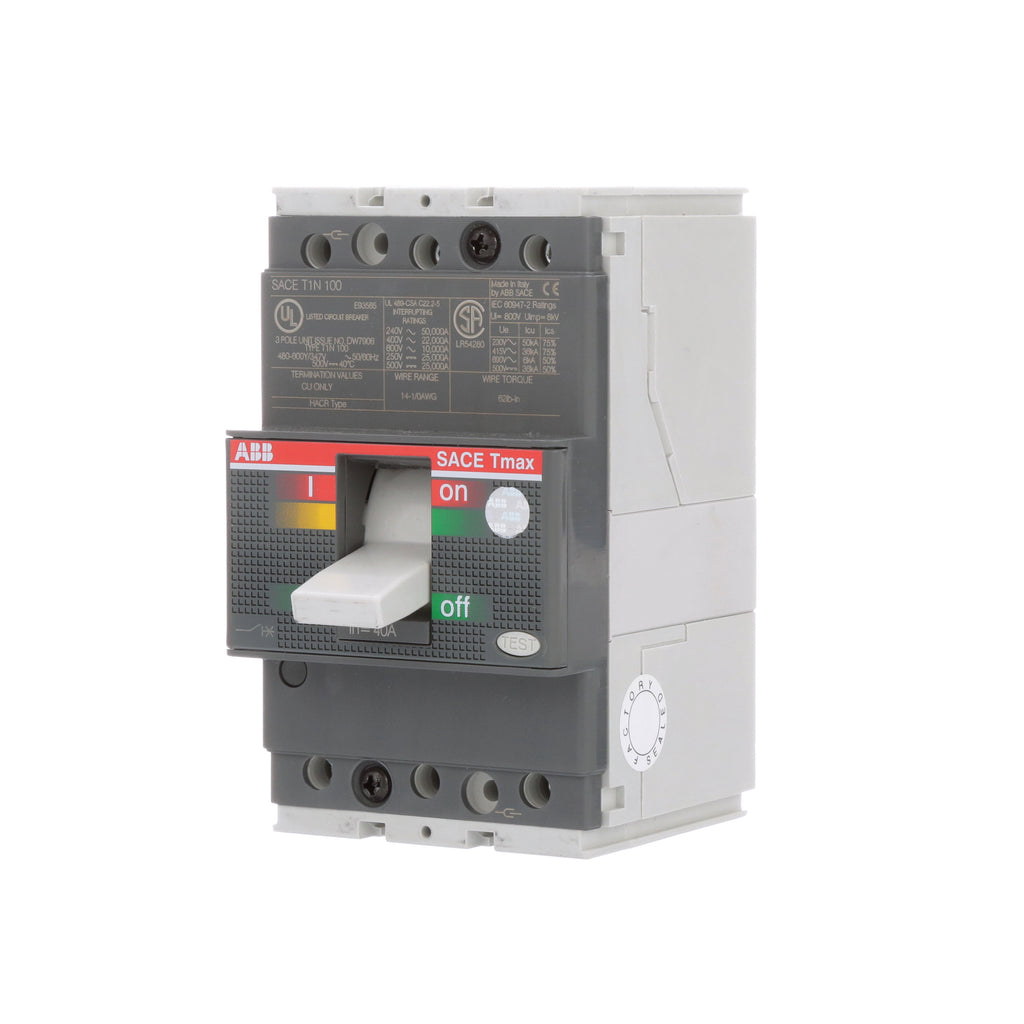

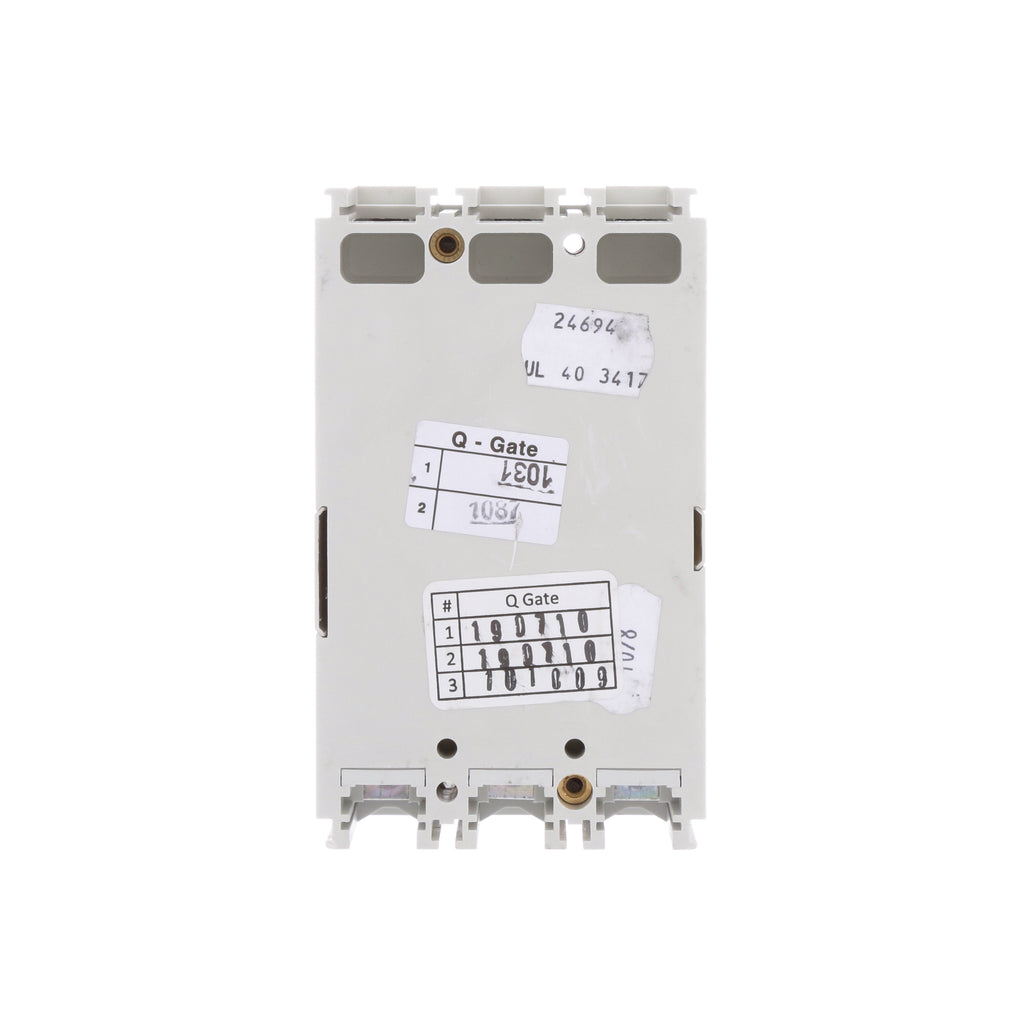

T1N040TL is a 3-pole, 40 amp, 600 volt thermal magnetic molded case circuit breaker from the ABB Tmax T1 series, designed for reliable protection in commercial and industrial power distribution systems.This circuit breaker features a Tmax T1 frame, N curve thermal magnetic trip unit, and is rated for 22kA interrupting capacity at 480V. The T1N040TL is suitable for panel mounting and provides robust short circuit and overload protection for three-phase circuits.
- Part Number: T1N040TL
- Manufacturer: ABB
- Series/Frame: Tmax T1
- Amperage: 40 A
- Voltage: 600 V
- Poles: 3
- Interrupt Rating: 22 kAIC @ 480V
- Mounting Type: Panel Mount
- Series/Frame: Tmax T1
- Trip Unit: Thermal Magnetic, N Curve
- Standards: UL489, CSA C22.2, IEC 60947-2
Specifications
- Part Number: T1N040TL
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : SACE Tmax
- Type : T1N
- Voltage : 600
- Amperage : 40
- Phase : 3
- Poles : 3
- AIC rating : 22kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : T1
- Protection : Thermal Magnetic
Product Data
- UPC : 662019930640
- Weight : 3
